Dive
Maxi

305003

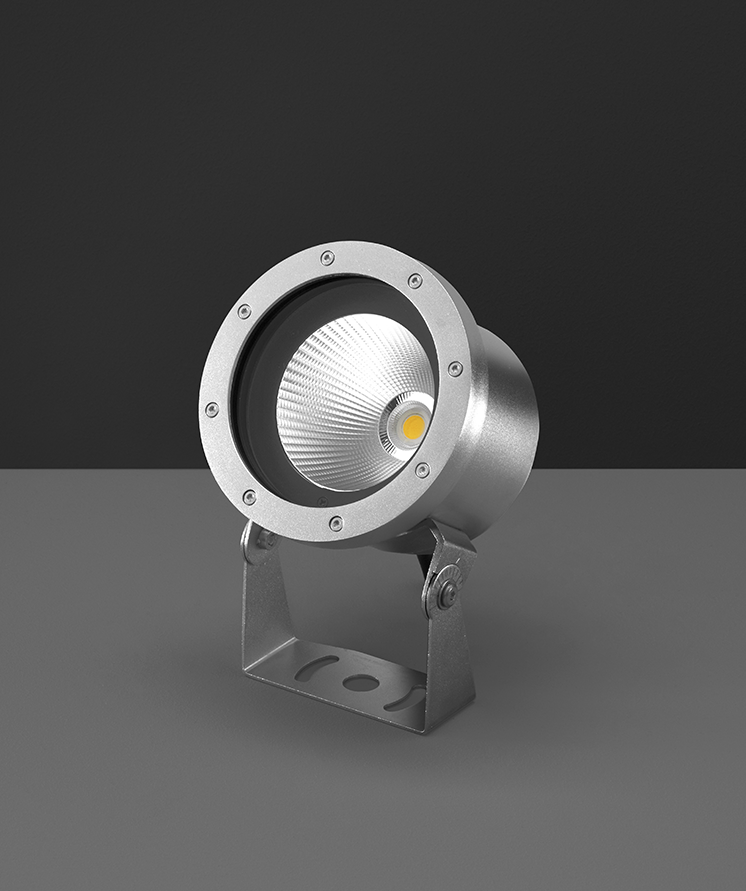

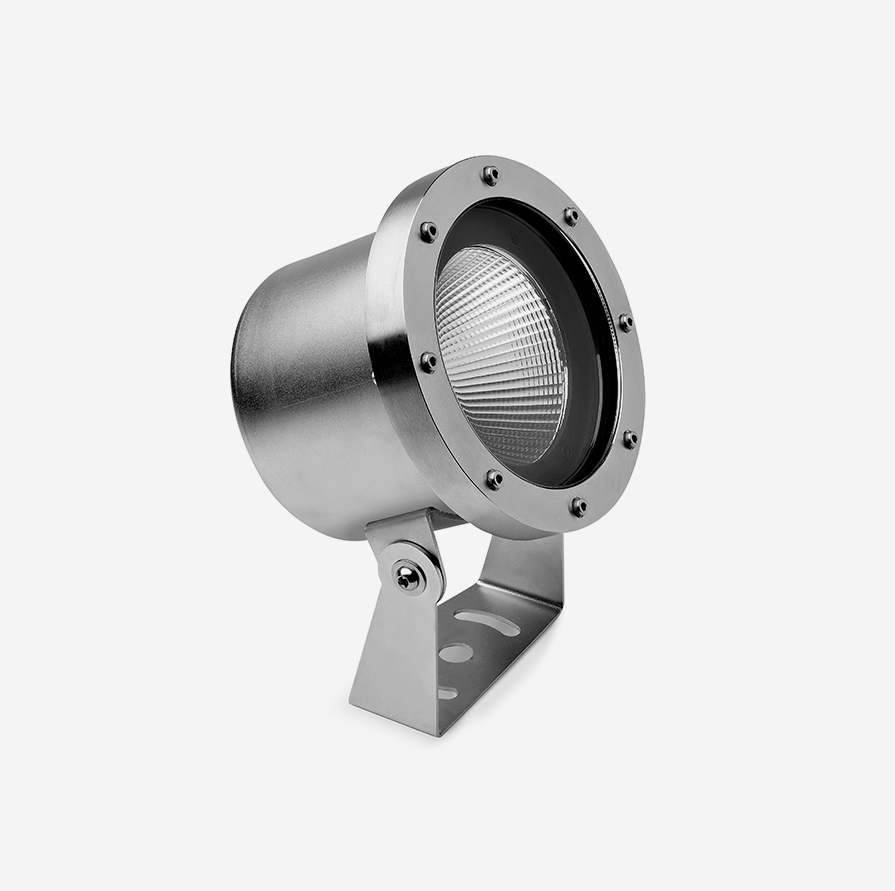

Underwater projector, surface mounted, completely made in stainless steel AISI 316L, silicone gasket, 24V DC remote driver needed, with 1 x COB LED. IP 68 rating.

DIVE MAXI
  • Wattage

    20W

  • CCT

    3000K

  • Beam Angle

    30°

  • Lumens

    1478

  • Finish

    STAINLESS STEEL STAINLESS STEEL

  • IP Rating

    IP68

  • IK Rating

    IK09

  • Coating

    Polyester powder coating with phosphocromating pre-finish

  • Light source

    1 x COB LED

  • Screws

    Stainless steel

  • Transformer

    Remote driver 24V DC NEEDED

  • Gasket

    Silicone rubber

  • Glass

    Tempered

  • Cable gland

    PG11 Cable gland made copper with nickel-coated

  • Power cable

    3 mt. neoprene power cable included

  • Gross weight

    2,00 Kg

technical features
technical features
technical features
technical features
technical features
technical features
technical features
Wall Mounting 2

REMOTE DRIVER SELECTION

Meanwell LPV-35-24 constant voltage 24V DC 35W IP67 1
Meanwell LPV-60-24 constant voltage 24V DC 60W IP67 min 1 - max 2
Meanwell LPV-100-24 constant voltage 24V DC 120W IP67 min 1 - max 4

Integrated Accessories

305003.30.30.SS.0. _ _

Built-in accessories to be requested when ordering
example 305003.30.30.SS.0.HC

Wall Mounting 3
.00
NO ACCESSORY

No accessory

Light Distribution
