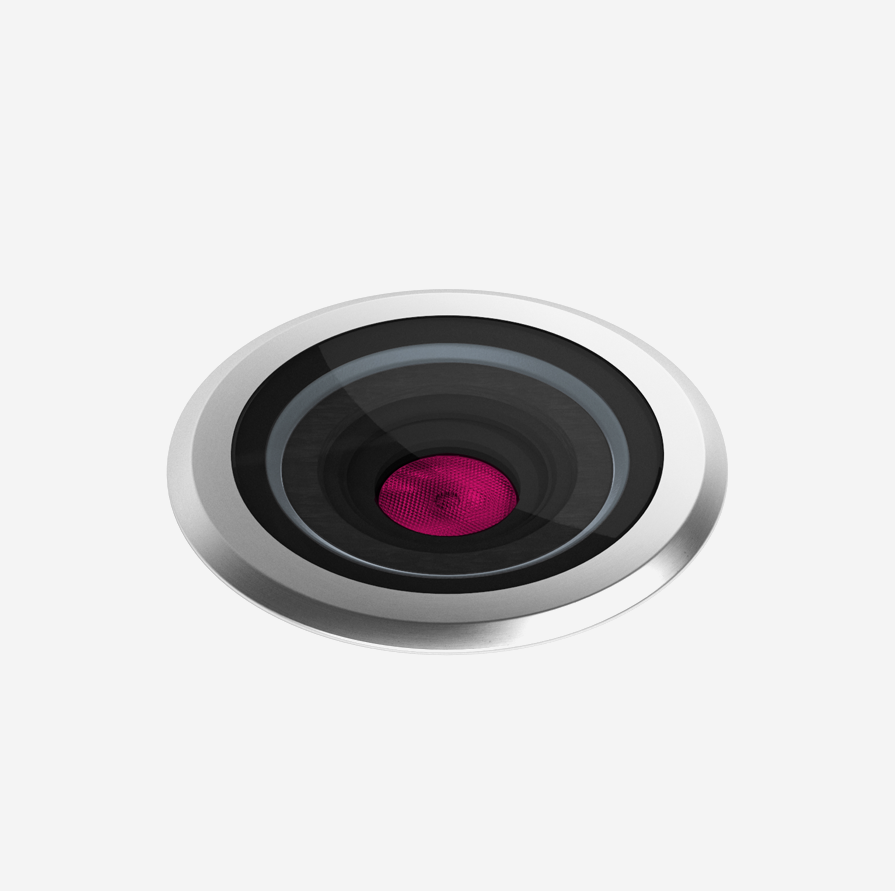

Diameter 140mm ground-recessed luminaire for outdoor installation, phospho-chromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 316L frame, tempered safety glass, moulded silicone gasket. Light source tilt system +/- 15deg from outside. Remote 24V DC power supply needed, DMX interface integrated; with 1 x CREE “XML” RGBW LED. IP67 rating.
4.5W
RGBW
35°
145
STAINLESS STEEL
IP67
IK10
polyester powder coating with phosphocromating pre-finish
Nr. 1 CREE XML RGBW LED
Stainless steel
Constant voltage 24V DC remote driver needed
Silicone rubber
Tempered
M20 + PG9
1 mt. neoprene power cable included
2,70 Kg
| Meanwell | LPV-20-24 | constant voltage 24V DC | 20W | IP67 | min 1 - max 3 |
| Meanwell | LPV-35-24 | constant voltage 24V DC | 35W | IP67 | min 1 - max 6 |
Built-in accessories to be requested when ordering
example 207003.RW.35.SS.X.HC
No accessory
Glare shield accessory made in hard anodized black aluminum, for applications requiring very reduced glaring; minimal light loss on the light surface but overall lumen output typically reduced by 50%.
