Round ground-recessed luminaire diam. 138 mm for outdoor installation, Phosphochromatised and polyester powder coated die-cast copper-free aluminium body and top cover with one window (single light emission 1 x 90 ), polycarbonate di user, moulded silicone gasket. Built-in LED driver 220-240V 50-60Hz, with 1 CREE XHP-35 LED. IP67 rating.

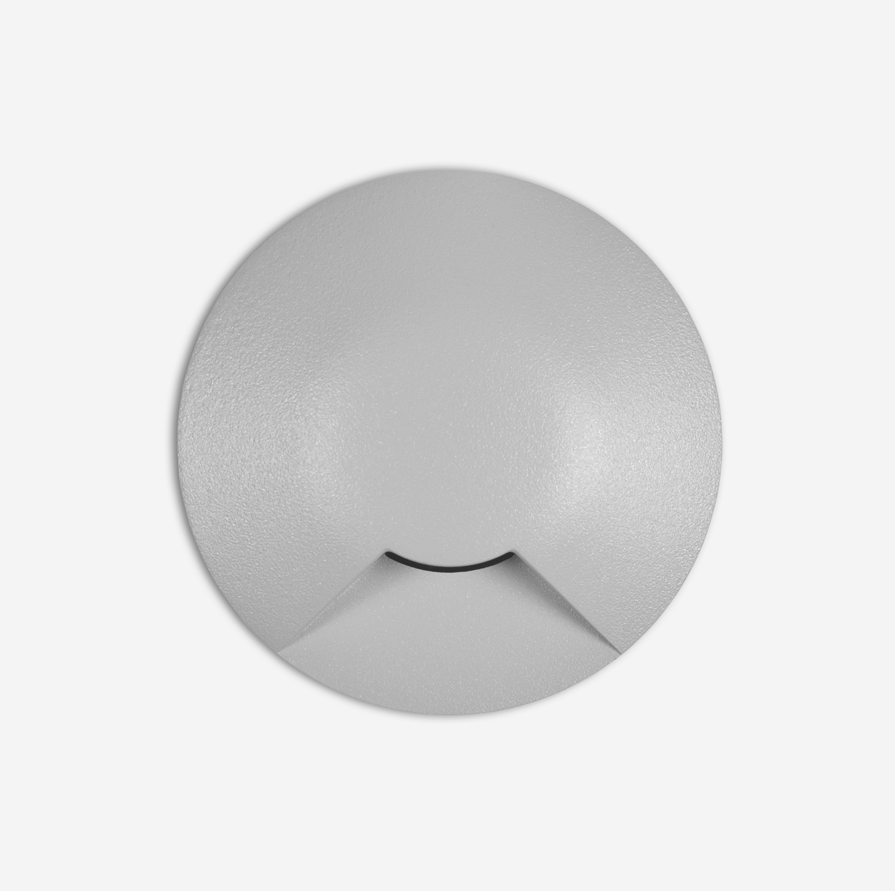

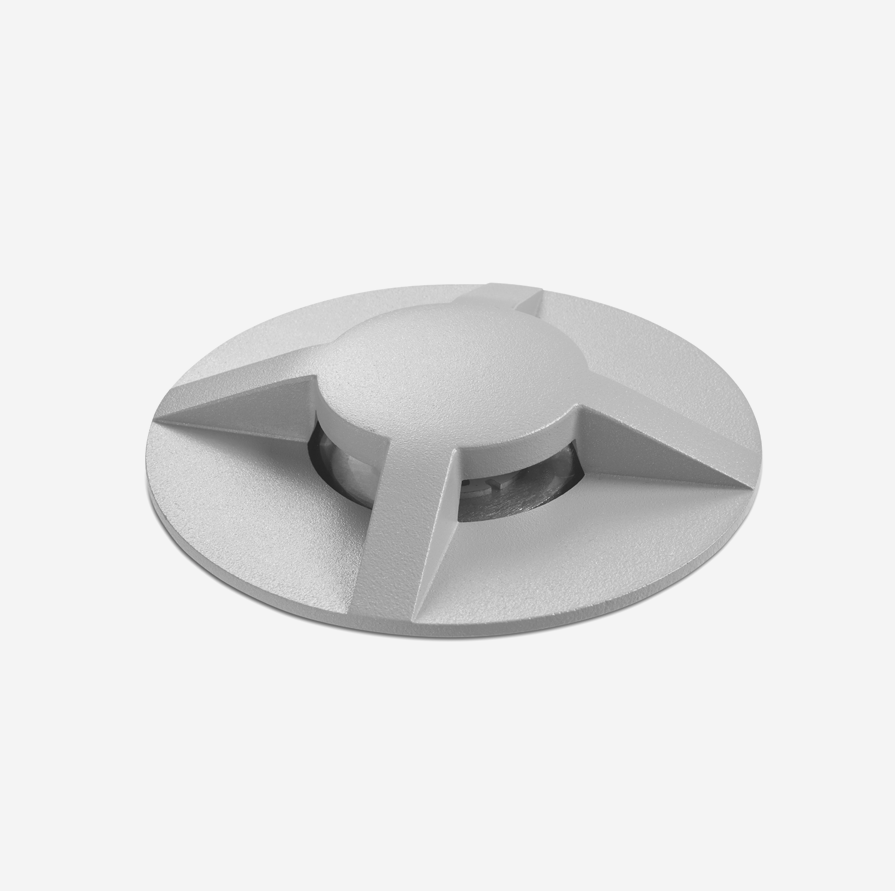

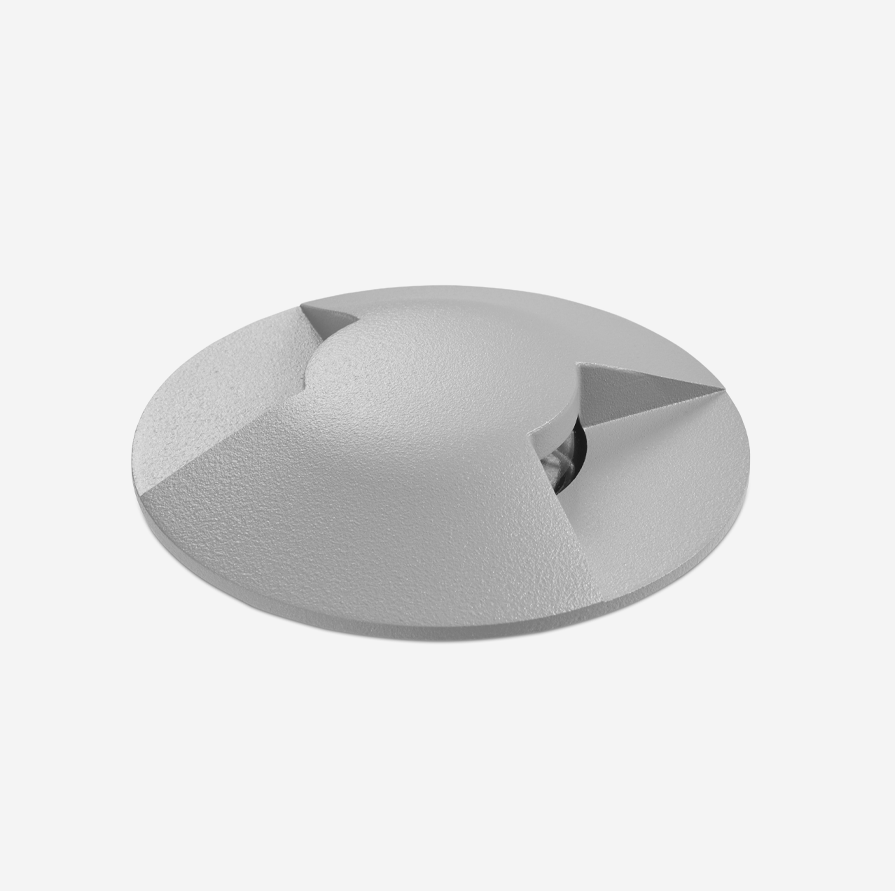

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201078.27.90.03.0 | 9W | 2700K | 90° | 209 |
RAL9005 |
ON/OFF | ||
| 201078.27.90.03.D | 9W | 2700K | 90° | 209 |
RAL9005 |
DALI | ||
| 201078.27.90.02.0 | 9W | 2700K | 90° | 209 |
RAL7016 |
ON/OFF | ||
| 201078.27.90.02.D | 9W | 2700K | 90° | 209 |
RAL7016 |
DALI | ||
| 201078.27.90.01.0 | 9W | 2700K | 90° | 209 |
RAL9006 |
ON/OFF | ||
| 201078.27.90.01.D | 9W | 2700K | 90° | 209 |
RAL9006 |
DALI | ||
| 201078.30.90.03.0 | 9W | 3000K | 90° | 220 |
RAL9005 |
ON/OFF | ||
| 201078.30.90.03.D | 9W | 3000K | 90° | 220 |
RAL9005 |
DALI | ||
| 201078.30.90.02.0 | 9W | 3000K | 90° | 220 |
RAL7016 |
ON/OFF | ||
| 201078.30.90.02.D | 9W | 3000K | 90° | 220 |
RAL7016 |
DALI | ||
| 201078.30.90.01.0 | 9W | 3000K | 90° | 220 |
RAL9006 |
ON/OFF | ||
| 201078.30.90.01.D | 9W | 3000K | 90° | 220 |
RAL9006 |
DALI | ||
| 201078.40.90.03.0 | 9W | 4000K | 90° | 240 |
RAL9005 |
ON/OFF | ||
| 201078.40.90.03.D | 9W | 4000K | 90° | 240 |
RAL9005 |
DALI | ||
| 201078.40.90.02.0 | 9W | 4000K | 90° | 240 |
RAL7016 |
ON/OFF | ||
| 201078.40.90.02.D | 9W | 4000K | 90° | 240 |
RAL7016 |
DALI | ||
| 201078.40.90.01.0 | 9W | 4000K | 90° | 240 |
RAL9006 |
ON/OFF | ||
| 201078.40.90.01.D | 9W | 4000K | 90° | 240 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201079.27.HB.01.D | 9W | 2700K | 2x90° | 314 |
RAL9006 |
DALI | ||
| 201079.27.HB.01.0 | 9W | 2700K | 2x90° | 314 |
RAL9006 |
ON/OFF | ||
| 201079.27.HB.02.D | 9W | 2700K | 2x90° | 314 |
RAL7016 |
DALI | ||
| 201079.27.HB.02.0 | 9W | 2700K | 2x90° | 314 |
RAL7016 |
ON/OFF | ||
| 201079.27.HB.03.D | 9W | 2700K | 2x90° | 314 |
RAL9005 |
DALI | ||
| 201079.27.HB.03.0 | 9W | 2700K | 2x90° | 314 |
RAL9005 |
ON/OFF | ||
| 201079.30.HB.01.D | 9W | 3000K | 2x90° | 330 |
RAL9006 |
DALI | ||
| 201079.30.HB.01.0 | 9W | 3000K | 2x90° | 330 |
RAL9006 |
ON/OFF | ||
| 201079.30.HB.02.D | 9W | 3000K | 2x90° | 330 |
RAL7016 |
DALI | ||
| 201079.30.HB.02.0 | 9W | 3000K | 2x90° | 330 |
RAL7016 |
ON/OFF | ||
| 201079.30.HB.03.D | 9W | 3000K | 2x90° | 330 |
RAL9005 |
DALI | ||
| 201079.30.HB.03.0 | 9W | 3000K | 2x90° | 330 |
RAL9005 |
ON/OFF | ||
| 201079.40.HB.01.D | 9W | 4000K | 2x90° | 340 |
RAL9006 |
DALI | ||
| 201079.40.HB.01.0 | 9W | 4000K | 2x90° | 340 |
RAL9006 |
ON/OFF | ||
| 201079.40.HB.02.D | 9W | 4000K | 2x90° | 340 |
RAL7016 |
DALI | ||
| 201079.40.HB.02.0 | 9W | 4000K | 2x90° | 340 |
RAL7016 |
ON/OFF | ||
| 201079.40.HB.03.D | 9W | 4000K | 2x90° | 340 |
RAL9005 |
DALI | ||
| 201079.40.HB.03.0 | 9W | 4000K | 2x90° | 340 |
RAL9005 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201080.27.AL.03.0 | 9W | 2700K | 4x90° | 399 |
RAL9005 |
ON/OFF | ||
| 201080.27.AL.03.D | 9W | 2700K | 4x90° | 399 |
RAL9005 |
DALI | ||
| 201080.27.AL.02.0 | 9W | 2700K | 4x90° | 399 |
RAL7016 |
ON/OFF | ||
| 201080.27.AL.02.D | 9W | 2700K | 4x90° | 399 |
RAL7016 |
DALI | ||
| 201080.27.AL.01.0 | 9W | 2700K | 4x90° | 399 |
RAL9006 |
ON/OFF | ||
| 201080.27.AL.01.D | 9W | 2700K | 4x90° | 399 |
RAL9006 |
DALI | ||
| 201080.30.AL.03.0 | 9W | 3000K | 4x90° | 420 |
RAL9005 |
ON/OFF | ||
| 201080.30.AL.03.D | 9W | 3000K | 4x90° | 420 |
RAL9005 |
DALI | ||
| 201080.30.AL.02.0 | 9W | 3000K | 4x90° | 420 |
RAL7016 |
ON/OFF | ||
| 201080.30.AL.02.D | 9W | 3000K | 4x90° | 420 |
RAL7016 |
DALI | ||
| 201080.30.AL.01.0 | 9W | 3000K | 4x90° | 420 |
RAL9006 |
ON/OFF | ||
| 201080.30.AL.01.D | 9W | 3000K | 4x90° | 420 |
RAL9006 |
DALI | ||
| 201080.40.AL.03.0 | 9W | 4000K | 4x90° | 430 |
RAL9005 |
ON/OFF | ||
| 201080.40.AL.03.D | 9W | 4000K | 4x90° | 430 |
RAL9005 |
DALI | ||
| 201080.40.AL.02.0 | 9W | 4000K | 4x90° | 430 |
RAL7016 |
ON/OFF | ||
| 201080.40.AL.02.D | 9W | 4000K | 4x90° | 430 |
RAL7016 |
DALI | ||
| 201080.40.AL.01.0 | 9W | 4000K | 4x90° | 430 |
RAL9006 |
ON/OFF | ||
| 201080.40.AL.01.D | 9W | 4000K | 4x90° | 430 |
RAL9006 |
DALI | ||
