Round ground-recessed luminaire diam. 98 mm for outdoor installation, Phosphochromatised and polyester powder coated die-cast copper-free aluminium body and top cover with one window (single light emission 1 x 90 ), polycarbonate di user, moulded silicone gasket. Built-in LED driver 220-240V 50-60Hz, with 1 CREE XP-G2 LED. IP67 rating.

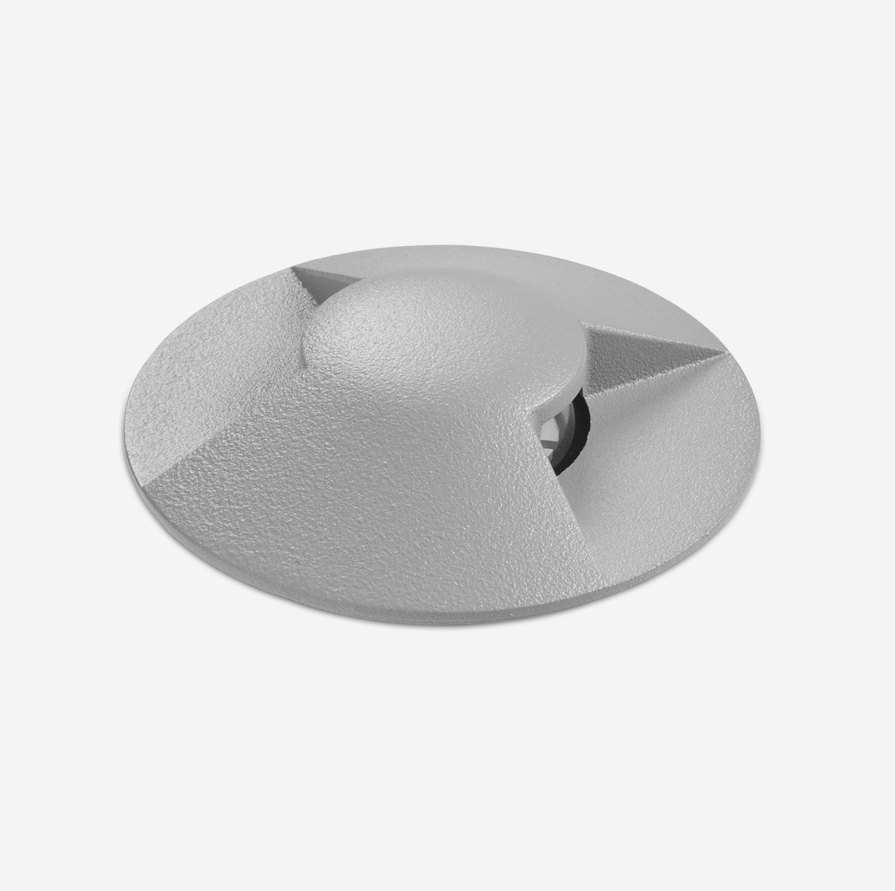

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201075.27.90.03.0 | 3W | 2700K | 90° | 52 |
RAL9005 |
ON/OFF | ||
| 201075.27.90.02.0 | 3W | 2700K | 90° | 52 |
RAL7016 |
ON/OFF | ||
| 201075.27.90.01.0 | 3W | 2700K | 90° | 52 |
RAL9006 |
ON/OFF | ||
| 201075.30.90.03.0 | 3W | 3000K | 90° | 55 |
RAL9005 |
ON/OFF | ||
| 201075.30.90.02.0 | 3W | 3000K | 90° | 55 |
RAL7016 |
ON/OFF | ||
| 201075.30.90.01.0 | 3W | 3000K | 90° | 55 |
RAL9006 |
ON/OFF | ||
| 201075.40.90.03.0 | 3W | 4000K | 90° | 60 |
RAL9005 |
ON/OFF | ||
| 201075.40.90.02.0 | 3W | 4000K | 90° | 60 |
RAL7016 |
ON/OFF | ||
| 201075.40.90.01.0 | 3W | 4000K | 90° | 60 |
RAL9006 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201076.27.HB.01.0 | 3W | 2700K | 90°+90° | 95 |
RAL9006 |
ON/OFF | ||
| 201076.27.HB.02.0 | 3W | 2700K | 90°+90° | 95 |
RAL7016 |
ON/OFF | ||
| 201076.27.HB.03.0 | 3W | 2700K | 90°+90° | 95 |
RAL9005 |
ON/OFF | ||
| 201076.27.90.03.0 | 3W | 2700K | 90° | 95 |
RAL9005 |
ON/OFF | ||
| 201076.27.90.02.0 | 3W | 2700K | 90° | 95 |
RAL7016 |
ON/OFF | ||
| 201076.27.90.01.0 | 3W | 2700K | 90° | 95 |
RAL9006 |
ON/OFF | ||
| 201076.30.HB.01.0 | 3W | 3000K | 90°+90° | 100 |
RAL9006 |
ON/OFF | ||
| 201076.30.HB.02.0 | 3W | 3000K | 90°+90° | 100 |
RAL7016 |
ON/OFF | ||
| 201076.30.HB.03.0 | 3W | 3000K | 90°+90° | 100 |
RAL9005 |
ON/OFF | ||
| 201076.30.90.03.0 | 3W | 3000K | 90° | 100 |
RAL9005 |
ON/OFF | ||
| 201076.30.90.02.0 | 3W | 3000K | 90° | 100 |
RAL7016 |
ON/OFF | ||
| 201076.30.90.01.0 | 3W | 3000K | 90° | 100 |
RAL9006 |
ON/OFF | ||
| 201076.40.HB.01.0 | 3W | 4000K | 90°+90° | 105 |
RAL9006 |
ON/OFF | ||
| 201076.40.HB.02.0 | 3W | 4000K | 90°+90° | 105 |
RAL7016 |
ON/OFF | ||
| 201076.40.HB.03.0 | 3W | 4000K | 90°+90° | 105 |
RAL9005 |
ON/OFF | ||
| 201076.40.90.03.0 | 3W | 4000K | 90° | 105 |
RAL9005 |
ON/OFF | ||
| 201076.40.90.02.0 | 3W | 4000K | 90° | 105 |
RAL7016 |
ON/OFF | ||
| 201076.40.90.01.0 | 3W | 4000K | 90° | 105 |
RAL9006 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201077.27.AL.01.0 | 3W | 2700K | 4x90° | 152 |
RAL9006 |
ON/OFF | ||
| 201077.27.AL.02.0 | 3W | 2700K | 4x90° | 152 |
RAL7016 |
ON/OFF | ||
| 201077.27.AL.03.0 | 3W | 2700K | 4x90° | 152 |
RAL9005 |
ON/OFF | ||
| 201077.30.AL.01.0 | 3W | 3000K | 4x90° | 160 |
RAL9006 |
ON/OFF | ||
| 201077.30.AL.02.0 | 3W | 3000K | 4x90° | 160 |
RAL7016 |
ON/OFF | ||
| 201077.30.AL.03.0 | 3W | 3000K | 4x90° | 160 |
RAL9005 |
ON/OFF | ||
| 201077.40.AL.01.0 | 3W | 4000K | 4x90° | 170 |
RAL9006 |
ON/OFF | ||
| 201077.40.AL.02.0 | 3W | 4000K | 4x90° | 170 |
RAL7016 |
ON/OFF | ||
| 201077.40.AL.03.0 | 3W | 4000K | 4x90° | 170 |
RAL9005 |
ON/OFF | ||
