Ground-recessed luminaire in round shape for outdoor installation, phospho-chromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 304 frame, tempered safety glass, moulded silicone gasket. Built-in LED driver, DMX driver integrated; with 3 x CREE “XML” RGBW LED. IP67 rating.

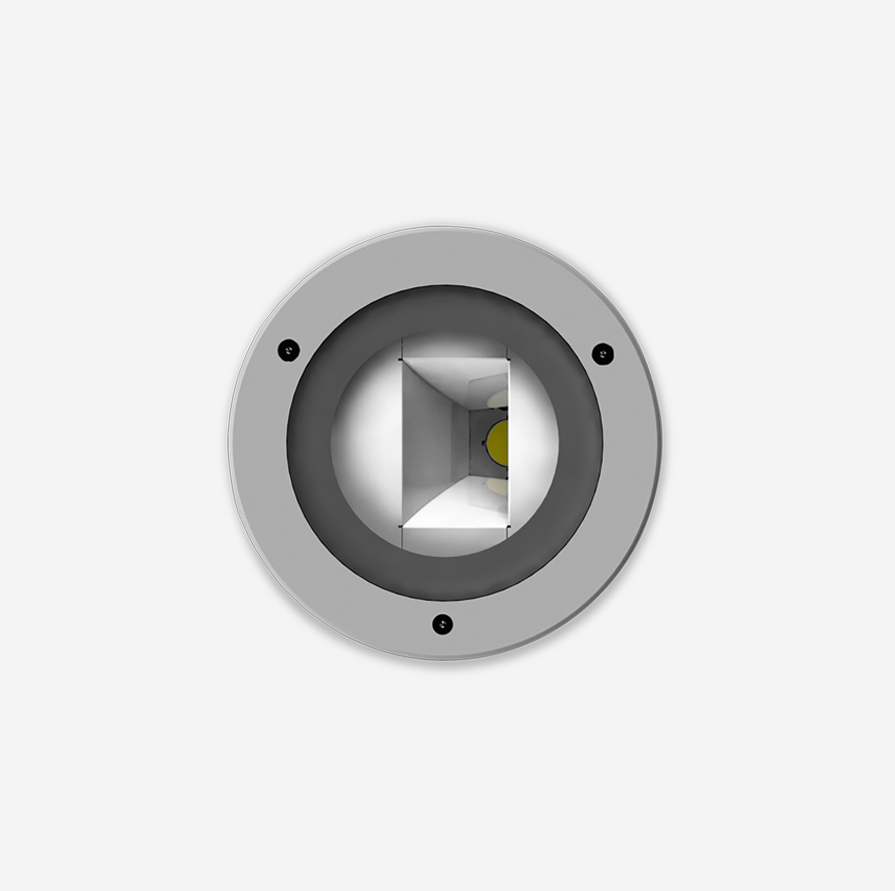

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201068.27.20.SS.0 | 19W | 2700K | 20° | 1762 |
STAINLESS STEEL |
ON/OFF | ||
| 201068.27.20.SS.1 | 19W | 2700K | 20° | 1762 |
STAINLESS STEEL |
1-10V | ||
| 201068.27.20.SS.D | 19W | 2700K | 20° | 1762 |
STAINLESS STEEL |
DALI | ||
| 201068.27.40.SS.D | 19W | 2700K | 40° | 1712 |
STAINLESS STEEL |
DALI | ||
| 201068.27.40.SS.1 | 19W | 2700K | 40° | 1712 |
STAINLESS STEEL |
1-10V | ||
| 201068.27.40.SS.0 | 19W | 2700K | 40° | 1712 |
STAINLESS STEEL |
ON/OFF | ||
| 201068.30.20.SS.0 | 19W | 3000K | 20° | 1855 |
STAINLESS STEEL |
ON/OFF | ||
| 201068.30.20.SS.1 | 19W | 3000K | 20° | 1855 |
STAINLESS STEEL |
1-10V | ||
| 201068.30.20.SS.D | 19W | 3000K | 20° | 1855 |
STAINLESS STEEL |
DALI | ||
| 201068.30.40.SS.D | 19W | 3000K | 40° | 1802 |
STAINLESS STEEL |
DALI | ||
| 201068.30.40.SS.1 | 19W | 3000K | 40° | 1802 |
STAINLESS STEEL |
1-10V | ||
| 201068.30.40.SS.0 | 19W | 3000K | 40° | 1802 |
STAINLESS STEEL |
ON/OFF | ||
| 201068.40.20.SS.0 | 19W | 4000K | 20° | 1999 |
STAINLESS STEEL |
ON/OFF | ||
| 201068.40.20.SS.1 | 19W | 4000K | 20° | 1999 |
STAINLESS STEEL |
1-10V | ||
| 201068.40.20.SS.D | 19W | 4000K | 20° | 1999 |
STAINLESS STEEL |
DALI | ||
| 201068.40.40.SS.D | 19W | 4000K | 40° | 1923 |
STAINLESS STEEL |
DALI | ||
| 201068.40.40.SS.1 | 19W | 4000K | 40° | 1923 |
STAINLESS STEEL |
1-10V | ||
| 201068.40.40.SS.0 | 19W | 4000K | 40° | 1923 |
STAINLESS STEEL |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201070.27.WW.SS.0 | 19W | 2700K | wall washer | 1410 |
STAINLESS STEEL |
ON/OFF | ||
| 201070.27.WW.SS.1 | 19W | 2700K | wall washer | 1410 |
STAINLESS STEEL |
1-10V | ||
| 201070.27.WW.SS.D | 19W | 2700K | wall washer | 1410 |
STAINLESS STEEL |
DALI | ||
| 201070.30.WW.SS.0 | 19W | 3000K | wall washer | 1484 |
STAINLESS STEEL |
ON/OFF | ||
| 201070.30.WW.SS.1 | 19W | 3000K | wall washer | 1484 |
STAINLESS STEEL |
1-10V | ||
| 201070.30.WW.SS.D | 19W | 3000K | wall washer | 1484 |
STAINLESS STEEL |
DALI | ||
| 201070.40.WW.SS.0 | 19W | 4000K | wall washer | 1599 |
STAINLESS STEEL |
ON/OFF | ||
| 201070.40.WW.SS.1 | 19W | 4000K | wall washer | 1599 |
STAINLESS STEEL |
1-10V | ||
| 201070.40.WW.SS.D | 19W | 4000K | wall washer | 1599 |
STAINLESS STEEL |
DALI | ||
