Hydrofloor Nano Linear

209001-03

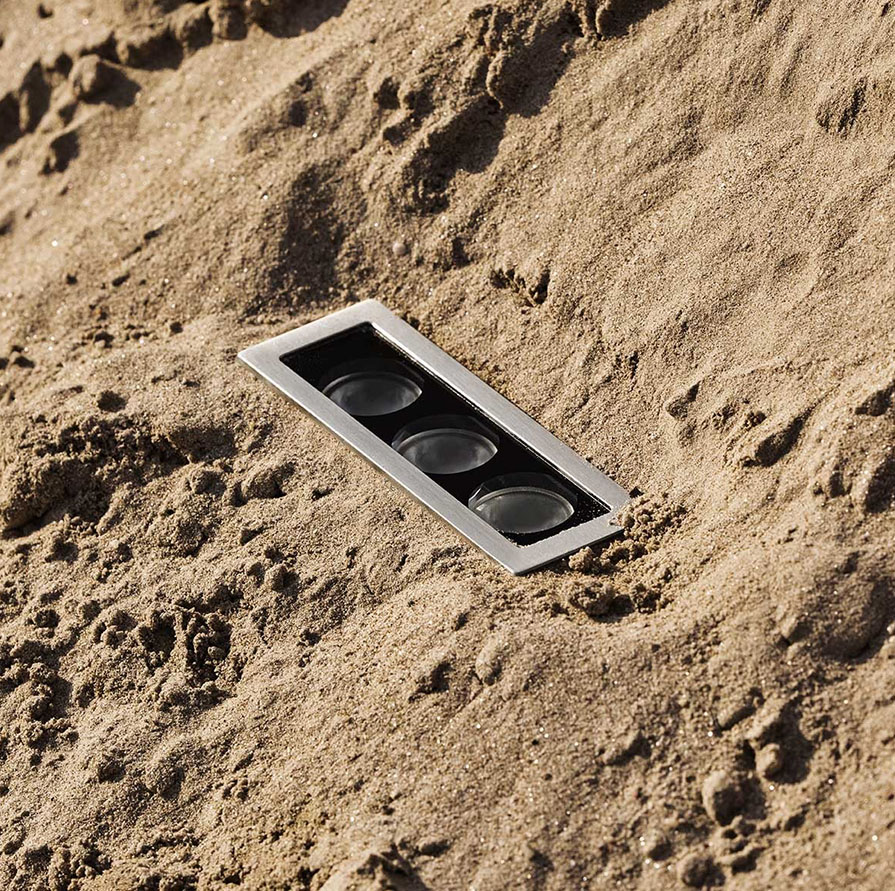

Product IMAGE

Technical Drawing

Technical drawing

209001

Hydrofloor Nano Linear Hp

view all products

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
209001.27.08.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	2700K	8°	300 lm (@350mA) / 378 lm (@500mA) / 538 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.27.32.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	2700K	32°	287 lm (@350mA) / 360 lm (@500mA) / 512 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.27.45.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	2700K	45°	278 lm (@350mA) / 350 lm (@500mA) / 501 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.30.08.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	3000K	8°	306 lm (@350mA) / 387 lm (@500mA) / 546 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.30.32.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	3000K	32°	293 lm (@350mA) / 373 lm (@500mA) / 522 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.30.45.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	3000K	45°	284 lm (@350mA) / 360 lm (@500mA) / 507 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.40.08.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	4000K	8°	312 lm (@350mA) / 396 lm (@500mA) / 558 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.40.32.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	4000K	32°	300 lm (@350mA) / 380 lm (@500mA) / 534 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209001.40.45.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	4000K	45°	290 lm (@350mA) / 369 lm (@500mA) / 518 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet

209002

Hydrofloor Nano Linear Wall-Washer

view all products

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
209002.27.WW.SS.0	6W	2700K	wall washer	450	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209002.30.WW.SS.0	6W	3000K	wall washer	470	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209002.40.WW.SS.0	6W	4000K	wall washer	490	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet

209003

Hydrofloor Nano Linear Blade

view all products

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
209003.27.BL.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	2700K	20°x100°	210 lm (@350mA) / 315 lm (@500mA) / 420 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209003.30.BL.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	3000K	20°x100°	220 lm (@350mA) / 330 lm (@500mA) / 440 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
209003.40.BL.SS.0	3W (@350mA) / 4.5W (@500mA) / 6W (@700mA)	4000K	20°x100°	230 lm (@350mA) / 345 lm (@500mA) / 460 lm (@700mA)	STAINLESS STEEL	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
