Uplight for outdoor installation on a ground/floor surface. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium, tempered safety glass and stainless steel screws. With 1 direct 220-240V LUMENS “EDC 38C” COB LED. IP67 rating.

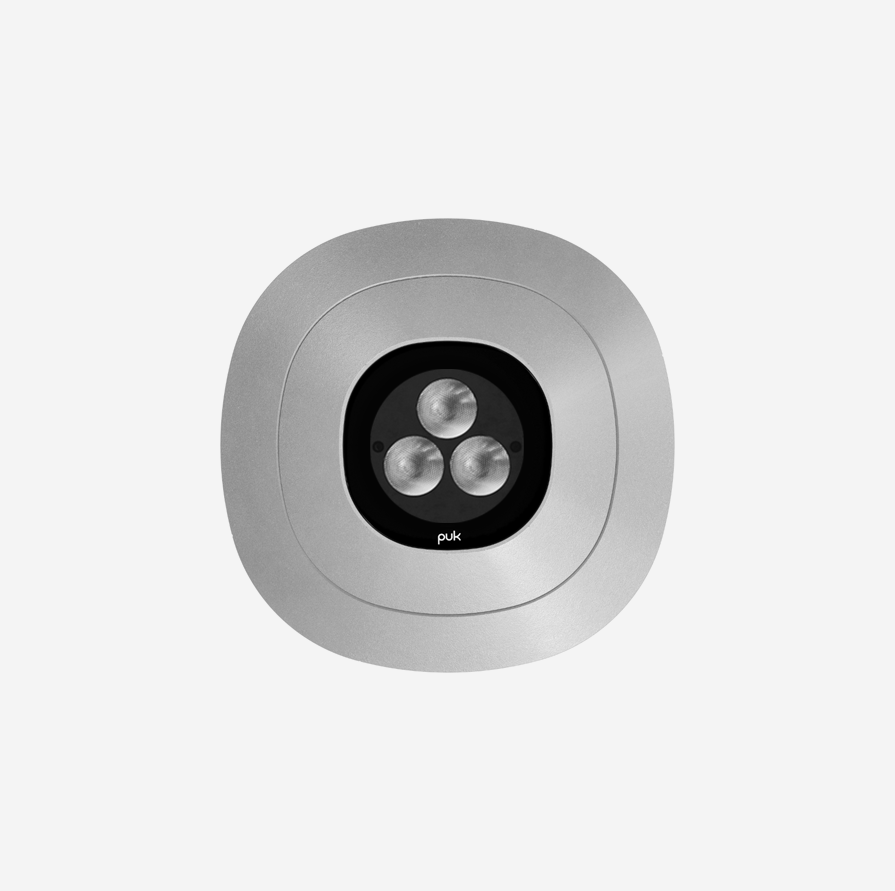

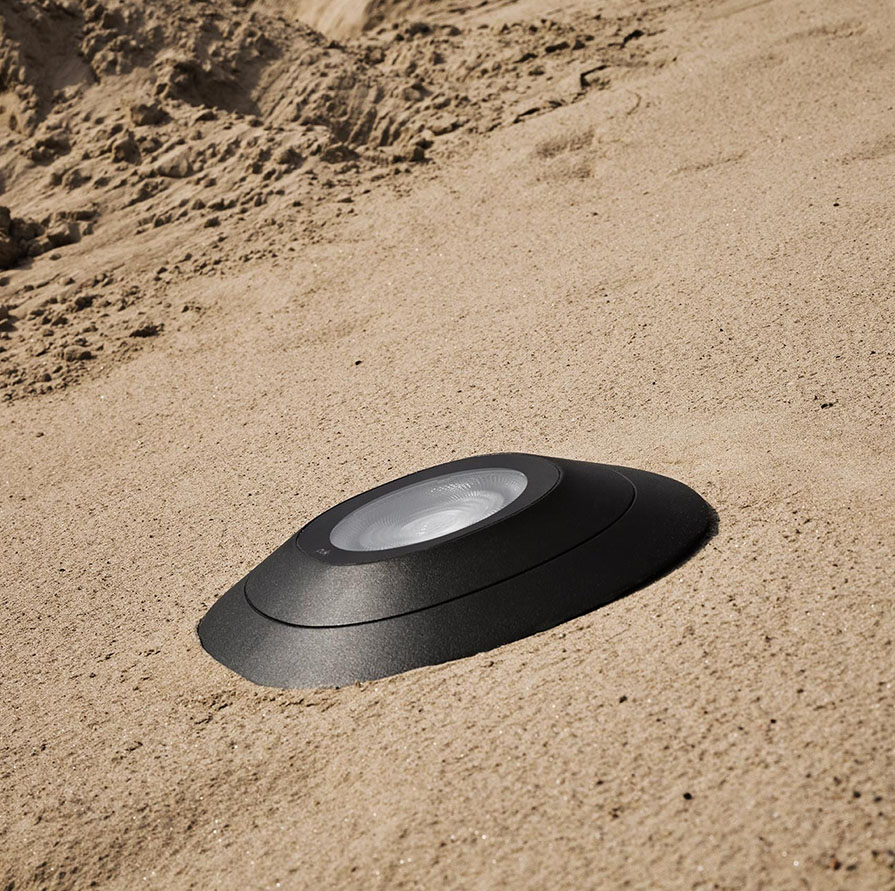

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 208001.27.18.03.0 | 8W | 2700K | 18° | 380 |
RAL9005 |
ON/OFF | ||
| 208001.27.18.02.0 | 8W | 2700K | 18° | 380 |
RAL7016 |
ON/OFF | ||
| 208001.27.18.01.0 | 8W | 2700K | 18° | 380 |
RAL9006 |
ON/OFF | ||
| 208001.27.36.03.0 | 8W | 2700K | 36° | 371 |
RAL9005 |
ON/OFF | ||
| 208001.27.36.02.0 | 8W | 2700K | 36° | 371 |
RAL7016 |
ON/OFF | ||
| 208001.27.36.01.0 | 8W | 2700K | 36° | 371 |
RAL9006 |
ON/OFF | ||
| 208001.27.60.03.0 | 8W | 2700K | 60° | 356 |
RAL9005 |
ON/OFF | ||
| 208001.27.60.02.0 | 8W | 2700K | 60° | 356 |
RAL7016 |
ON/OFF | ||
| 208001.27.60.01.0 | 8W | 2700K | 60° | 356 |
RAL9006 |
ON/OFF | ||
| 208001.30.18.03.0 | 8W | 3000K | 18° | 400 |
RAL9005 |
ON/OFF | ||
| 208001.30.18.02.0 | 8W | 3000K | 18° | 400 |
RAL7016 |
ON/OFF | ||
| 208001.30.18.01.0 | 8W | 3000K | 18° | 400 |
RAL9006 |
ON/OFF | ||
| 208001.30.36.03.0 | 8W | 3000K | 36° | 390 |
RAL9005 |
ON/OFF | ||
| 208001.30.36.02.0 | 8W | 3000K | 36° | 390 |
RAL7016 |
ON/OFF | ||
| 208001.30.36.01.0 | 8W | 3000K | 36° | 390 |
RAL9006 |
ON/OFF | ||
| 208001.30.60.03.0 | 8W | 3000K | 60° | 375 |
RAL9005 |
ON/OFF | ||
| 208001.30.60.02.0 | 8W | 3000K | 60° | 375 |
RAL7016 |
ON/OFF | ||
| 208001.30.60.01.0 | 8W | 3000K | 60° | 375 |
RAL9006 |
ON/OFF | ||
| 208001.40.18.03.0 | 8W | 4000K | 18° | 410 |
RAL9005 |
ON/OFF | ||
| 208001.40.18.02.0 | 8W | 4000K | 18° | 410 |
RAL7016 |
ON/OFF | ||
| 208001.40.18.01.0 | 8W | 4000K | 18° | 410 |
RAL9006 |
ON/OFF | ||
| 208001.40.36.03.0 | 8W | 4000K | 36° | 400 |
RAL9005 |
ON/OFF | ||
| 208001.40.36.02.0 | 8W | 4000K | 36° | 400 |
RAL7016 |
ON/OFF | ||
| 208001.40.36.01.0 | 8W | 4000K | 36° | 400 |
RAL9006 |
ON/OFF | ||
| 208001.40.60.03.0 | 8W | 4000K | 60° | 385 |
RAL9005 |
ON/OFF | ||
| 208001.40.60.02.0 | 8W | 4000K | 60° | 385 |
RAL7016 |
ON/OFF | ||
| 208001.40.60.01.0 | 8W | 4000K | 60° | 385 |
RAL9006 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 208002.27.08.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 8° | 300 lm (@350mA) / 378 lm (@500mA) / 538 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.27.08.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 8° | 300 lm (@350mA) / 378 lm (@500mA) / 538 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.27.08.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 8° | 300 lm (@350mA) / 378 lm (@500mA) / 538 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.27.20.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 20° | 287 lm (@350mA) / 360 lm (@500mA) / 512 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.27.20.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 20° | 287 lm (@350mA) / 360 lm (@500mA) / 512 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.27.20.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 20° | 287 lm (@350mA) / 360 lm (@500mA) / 512 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.27.40.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 40° | 278 lm (@350mA) / 350 lm (@500mA) / 501 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.27.40.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 40° | 278 lm (@350mA) / 350 lm (@500mA) / 501 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.27.40.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 40° | 278 lm (@350mA) / 350 lm (@500mA) / 501 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.30.08.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 8° | 306 lm (@350mA) / 387 lm (@500mA) / 546 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.30.08.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 8° | 306 lm (@350mA) / 387 lm (@500mA) / 546 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.30.08.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 8° | 306 lm (@350mA) / 387 lm (@500mA) / 546 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.30.20.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 20° | 293 lm (@350mA) / 373 lm (@500mA) / 522 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.30.20.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 20° | 293 lm (@350mA) / 373 lm (@500mA) / 522 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.30.20.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 20° | 293 lm (@350mA) / 373 lm (@500mA) / 522 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.30.40.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 40° | 284 lm (@350mA) / 360 lm (@500mA) / 507 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.30.40.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 40° | 284 lm (@350mA) / 360 lm (@500mA) / 507 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.30.40.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 40° | 284 lm (@350mA) / 360 lm (@500mA) / 507 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.40.08.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 8° | 312 lm (@350mA) / 396 lm (@500mA) / 558 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.40.08.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 8° | 312 lm (@350mA) / 396 lm (@500mA) / 558 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.40.08.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 8° | 312 lm (@350mA) / 396 lm (@500mA) / 558 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.40.20.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 20° | 300 lm (@350mA) / 380 lm (@500mA) / 534 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.40.20.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 20° | 300 lm (@350mA) / 380 lm (@500mA) / 534 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.40.20.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 20° | 300 lm (@350mA) / 380 lm (@500mA) / 534 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208002.40.40.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 40° | 290 lm (@350mA) / 369 lm (@500mA) / 518 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208002.40.40.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 40° | 290 lm (@350mA) / 369 lm (@500mA) / 518 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208002.40.40.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 40° | 290 lm (@350mA) / 369 lm (@500mA) / 518 lm (@700mA) |
RAL9005 |
ON/OFF | ||
