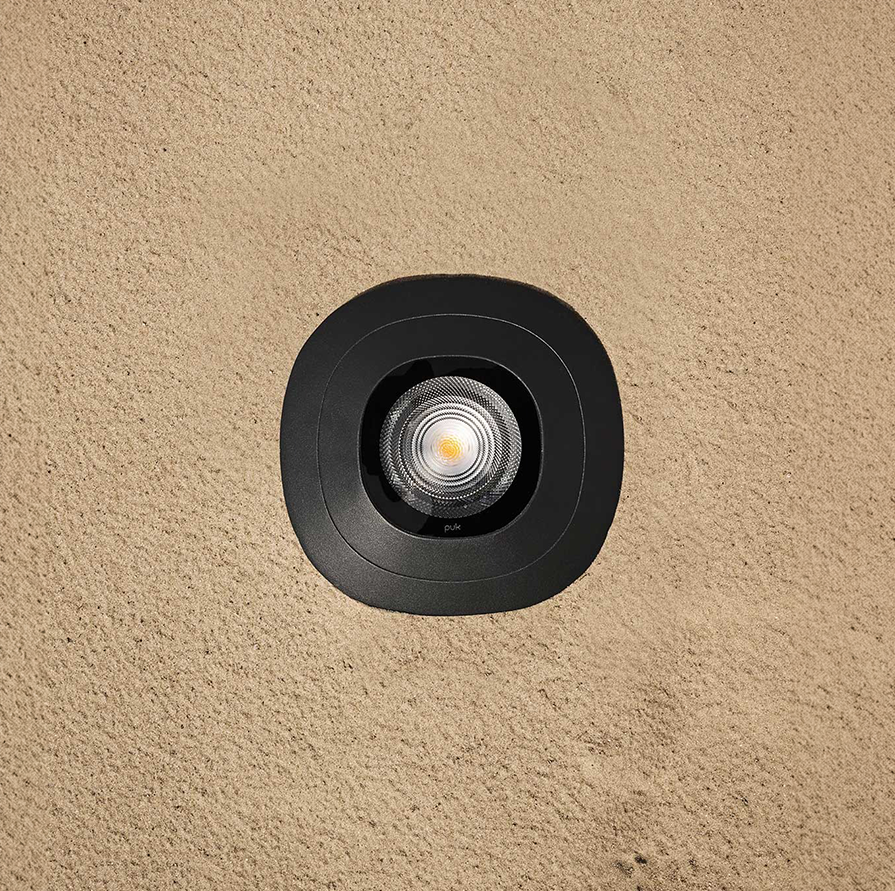

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 208003.27.18.03.0 | 15W | 2700K | 18° | 950 |
RAL9005 |
ON/OFF | ||
| 208003.27.18.02.0 | 15W | 2700K | 18° | 950 |
RAL7016 |
ON/OFF | ||
| 208003.27.18.01.0 | 15W | 2700K | 18° | 950 |
RAL9006 |
ON/OFF | ||
| 208003.27.36.03.0 | 15W | 2700K | 36° | 931 |
RAL9005 |
ON/OFF | ||
| 208003.27.36.02.0 | 15W | 2700K | 36° | 931 |
RAL7016 |
ON/OFF | ||
| 208003.27.36.01.0 | 15W | 2700K | 36° | 931 |
RAL9006 |
ON/OFF | ||
| 208003.27.60.03.0 | 15W | 2700K | 60° | 912 |
RAL9005 |
ON/OFF | ||
| 208003.27.60.02.0 | 15W | 2700K | 60° | 912 |
RAL7016 |
ON/OFF | ||
| 208003.27.60.01.0 | 15W | 2700K | 60° | 912 |
RAL9006 |
ON/OFF | ||
| 208003.30.18.03.0 | 15W | 3000K | 18° | 1000 |
RAL9005 |
ON/OFF | ||
| 208003.30.18.02.0 | 15W | 3000K | 18° | 1000 |
RAL7016 |
ON/OFF | ||
| 208003.30.18.01.0 | 15W | 3000K | 18° | 1000 |
RAL9006 |
ON/OFF | ||
| 208003.30.36.03.0 | 15W | 3000K | 36° | 980 |
RAL9005 |
ON/OFF | ||
| 208003.30.36.02.0 | 15W | 3000K | 36° | 980 |
RAL7016 |
ON/OFF | ||
| 208003.30.36.01.0 | 15W | 3000K | 36° | 980 |
RAL9006 |
ON/OFF | ||
| 208003.30.60.03.0 | 15W | 3000K | 60° | 960 |
RAL9005 |
ON/OFF | ||
| 208003.30.60.02.0 | 15W | 3000K | 60° | 960 |
RAL7016 |
ON/OFF | ||
| 208003.30.60.01.0 | 15W | 3000K | 60° | 960 |
RAL9006 |
ON/OFF | ||
| 208003.40.18.03.0 | 15W | 4000K | 18° | 1050 |
RAL9005 |
ON/OFF | ||
| 208003.40.18.02.0 | 15W | 4000K | 18° | 1050 |
RAL7016 |
ON/OFF | ||
| 208003.40.18.01.0 | 15W | 4000K | 18° | 1050 |
RAL9006 |
ON/OFF | ||
| 208003.40.36.03.0 | 15W | 4000K | 36° | 1030 |
RAL9005 |
ON/OFF | ||
| 208003.40.36.02.0 | 15W | 4000K | 36° | 1030 |
RAL7016 |
ON/OFF | ||
| 208003.40.36.01.0 | 15W | 4000K | 36° | 1030 |
RAL9006 |
ON/OFF | ||
| 208003.40.60.03.0 | 15W | 4000K | 60° | 1000 |
RAL9005 |
ON/OFF | ||
| 208003.40.60.02.0 | 15W | 4000K | 60° | 1000 |
RAL7016 |
ON/OFF | ||
| 208003.40.60.01.0 | 15W | 4000K | 60° | 1000 |
RAL9006 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 208004.27.08.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 8° | 600 lm (@350mA) / 756 lm (@500mA) / 1076 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.27.08.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 8° | 600 lm (@350mA) / 756 lm (@500mA) / 1076 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.27.08.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 8° | 600 lm (@350mA) / 756 lm (@500mA) / 1076 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.27.20.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 20° | 574 lm (@350mA) / 720 lm (@500mA) / 1024 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.27.20.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 20° | 574 lm (@350mA) / 720 lm (@500mA) / 1024 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.27.20.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 20° | 574 lm (@350mA) / 720 lm (@500mA) / 1024 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.27.40.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 40° | 556 lm (@350mA) / 700 lm (@500mA) / 1002 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.27.40.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 40° | 556 lm (@350mA) / 700 lm (@500mA) / 1002 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.27.40.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 2700K | 40° | 556 lm (@350mA) / 700 lm (@500mA) / 1002 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.30.08.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 8° | 612 lm (@350mA) / 774 lm (@500mA) / 1092 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.30.08.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 8° | 612 lm (@350mA) / 774 lm (@500mA) / 1092 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.30.08.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 8° | 612 lm (@350mA) / 774 lm (@500mA) / 1092 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.30.20.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 20° | 586 lm (@350mA) / 746 lm (@500mA) / 1044 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.30.20.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 20° | 586 lm (@350mA) / 746 lm (@500mA) / 1044 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.30.20.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 20° | 586 lm (@350mA) / 746 lm (@500mA) / 1044 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.30.40.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 40° | 568 lm (@350mA) / 720 lm (@500mA) / 1014 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.30.40.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 40° | 568 lm (@350mA) / 720 lm (@500mA) / 1014 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.30.40.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 3000K | 40° | 568 lm (@350mA) / 720 lm (@500mA) / 1014 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.40.08.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 8° | 624 lm (@350mA) / 792 lm (@500mA) / 1116 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.40.08.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 8° | 624 lm (@350mA) / 792 lm (@500mA) / 1116 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.40.08.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 8° | 624 lm (@350mA) / 792 lm (@500mA) / 1116 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.40.20.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 20° | 600 lm (@350mA) / 760 lm (@500mA) / 1068 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.40.20.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 20° | 600 lm (@350mA) / 760 lm (@500mA) / 1068 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.40.20.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 20° | 600 lm (@350mA) / 760 lm (@500mA) / 1068 lm (@700mA) |
RAL9005 |
ON/OFF | ||
| 208004.40.40.01.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 40° | 580 lm (@350mA) / 738 lm (@500mA) / 1136 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 208004.40.40.02.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 40° | 580 lm (@350mA) / 738 lm (@500mA) / 1136 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 208004.40.40.03.0 | 6W (@350mA) / 9W (@500mA) / 12W (@700mA) | 4000K | 40° | 580 lm (@350mA) / 738 lm (@500mA) / 1136 lm (@700mA) |
RAL9005 |
ON/OFF | ||
