Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90°/-40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 12 CREE “XP-G2” LED. IP66 rating.

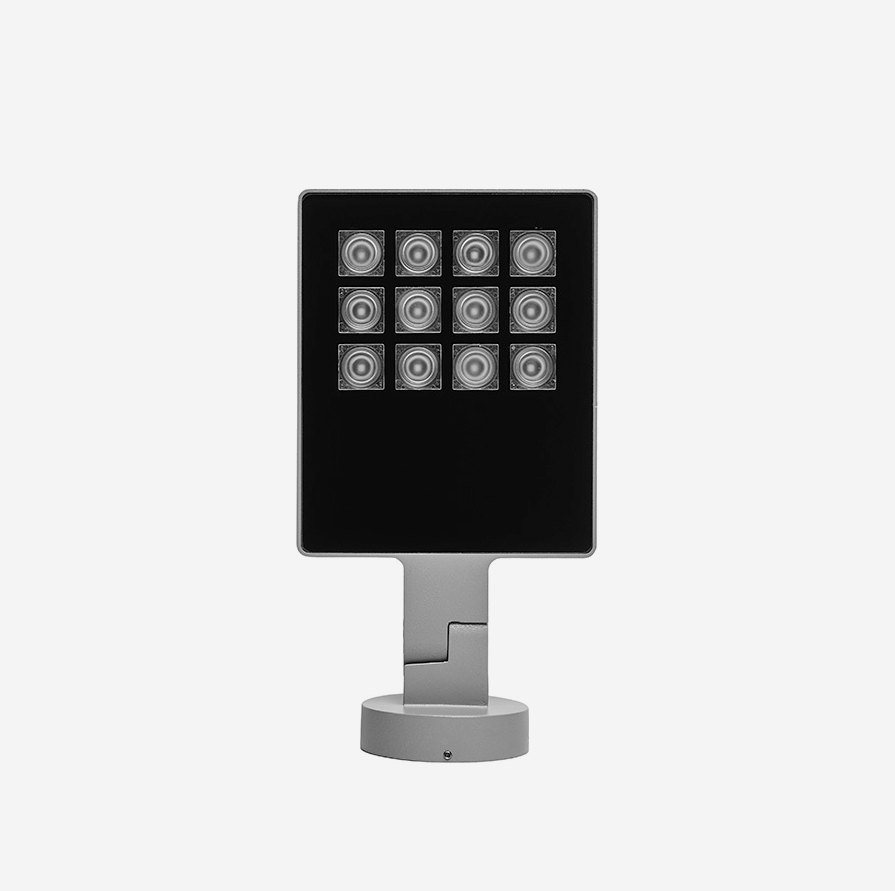

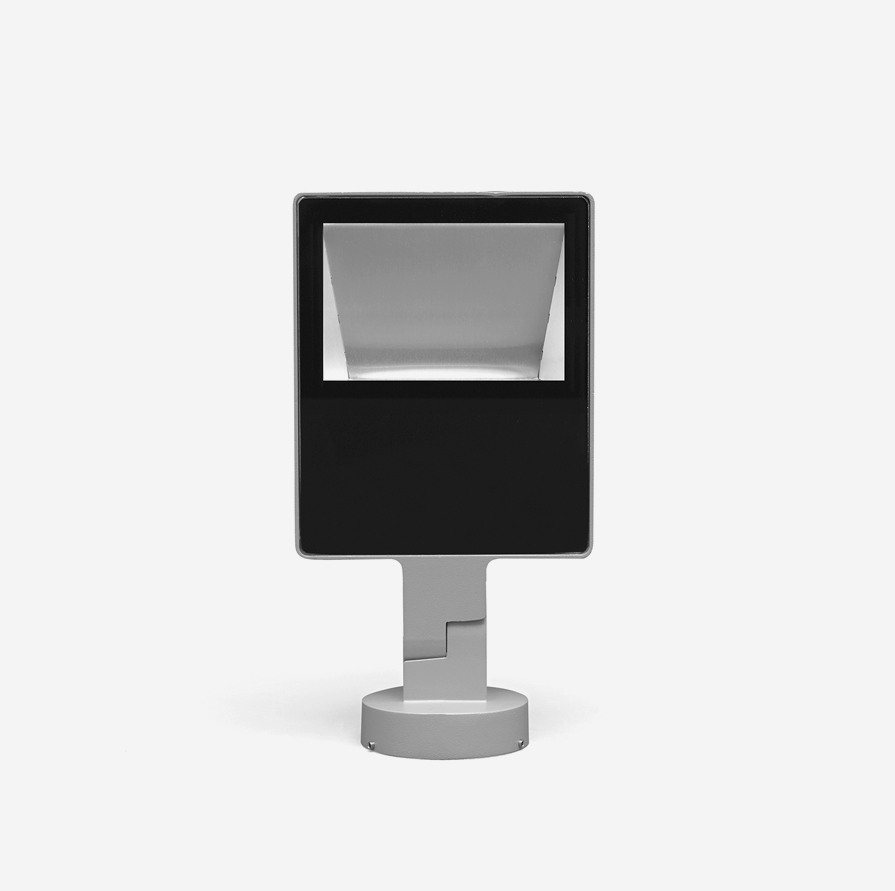

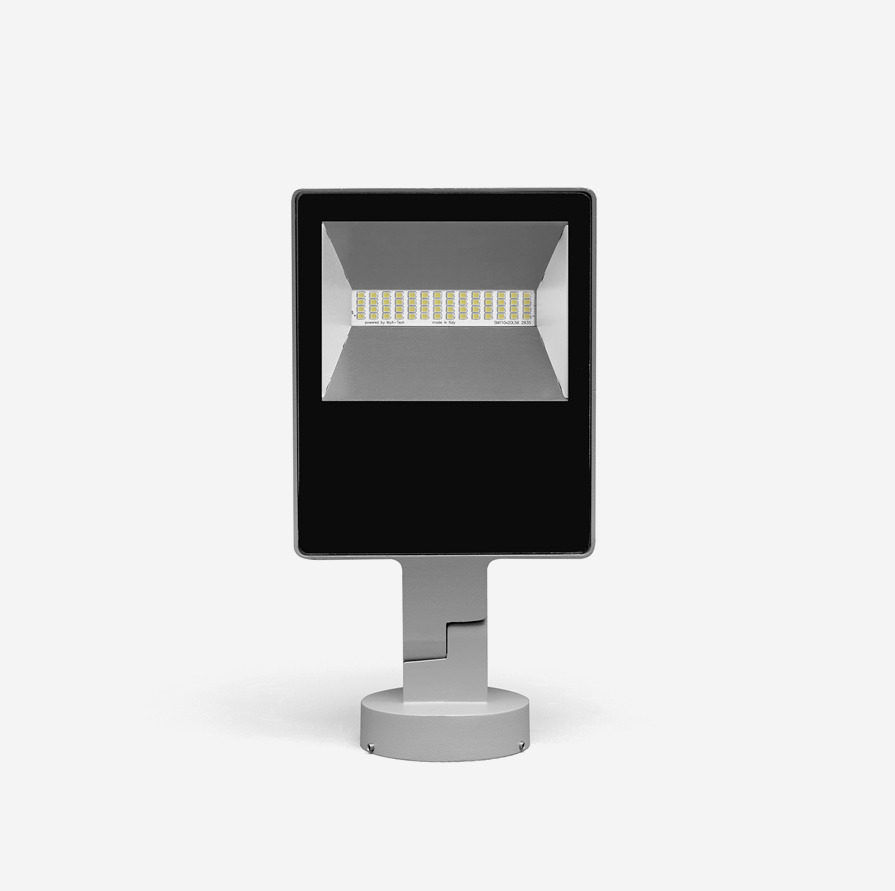

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101502.30.15.03.0 | 20W | 3000K | 15° | 1920 |
RAL9005 |
ON/OFF | ||
| 101502.30.15.03.1 | 20W | 3000K | 15° | 1920 |
RAL9005 |
1-10V | ||
| 101502.30.15.03.D | 20W | 3000K | 15° | 1920 |
RAL9005 |
DALI | ||
| 101502.30.15.02.0 | 20W | 3000K | 15° | 1920 |
RAL7016 |
ON/OFF | ||
| 101502.30.15.02.1 | 20W | 3000K | 15° | 1920 |
RAL7016 |
1-10V | ||
| 101502.30.15.02.D | 20W | 3000K | 15° | 1920 |
RAL7016 |
DALI | ||
| 101502.30.15.01.0 | 20W | 3000K | 15° | 1920 |
RAL9006 |
ON/OFF | ||
| 101502.30.15.01.1 | 20W | 3000K | 15° | 1920 |
RAL9006 |
1-10V | ||
| 101502.30.15.01.D | 20W | 3000K | 15° | 1920 |
RAL9006 |
DALI | ||
| 101502.30.35.03.0 | 20W | 3000K | 35° | 1862 |
RAL9005 |
ON/OFF | ||
| 101502.30.35.03.1 | 20W | 3000K | 35° | 1862 |
RAL9005 |
1-10V | ||
| 101502.30.35.03.D | 20W | 3000K | 35° | 1862 |
RAL9005 |
DALI | ||
| 101502.30.35.02.0 | 20W | 3000K | 35° | 1862 |
RAL7016 |
ON/OFF | ||
| 101502.30.35.02.1 | 20W | 3000K | 35° | 1862 |
RAL7016 |
1-10V | ||
| 101502.30.35.02.D | 20W | 3000K | 35° | 1862 |
RAL7016 |
DALI | ||
| 101502.30.35.01.0 | 20W | 3000K | 35° | 1862 |
RAL9006 |
ON/OFF | ||
| 101502.30.35.01.1 | 20W | 3000K | 35° | 1862 |
RAL9006 |
1-10V | ||
| 101502.30.35.01.D | 20W | 3000K | 35° | 1862 |
RAL9006 |
DALI | ||
| 101502.30.55.03.0 | 20W | 3000K | 55° | 1775 |
RAL9005 |
ON/OFF | ||
| 101502.30.55.03.1 | 20W | 3000K | 55° | 1775 |
RAL9005 |
1-10V | ||
| 101502.30.55.03.D | 20W | 3000K | 55° | 1775 |
RAL9005 |
DALI | ||
| 101502.30.55.02.0 | 20W | 3000K | 55° | 1775 |
RAL7016 |
ON/OFF | ||
| 101502.30.55.02.1 | 20W | 3000K | 55° | 1775 |
RAL7016 |
1-10V | ||
| 101502.30.55.02.D | 20W | 3000K | 55° | 1775 |
RAL7016 |
DALI | ||
| 101502.30.55.01.0 | 20W | 3000K | 55° | 1775 |
RAL9006 |
ON/OFF | ||
| 101502.30.55.01.1 | 20W | 3000K | 55° | 1775 |
RAL9006 |
1-10V | ||
| 101502.30.55.01.D | 20W | 3000K | 55° | 1775 |
RAL9006 |
DALI | ||
| 101502.40.15.03.0 | 20W | 4000K | 15° | 1970 |
RAL9005 |
ON/OFF | ||
| 101502.40.15.03.1 | 20W | 4000K | 15° | 1970 |
RAL9005 |
1-10V | ||
| 101502.40.15.03.D | 20W | 4000K | 15° | 1970 |
RAL9005 |
DALI | ||
| 101502.40.15.02.0 | 20W | 4000K | 15° | 1970 |
RAL7016 |
ON/OFF | ||
| 101502.40.15.02.1 | 20W | 4000K | 15° | 1970 |
RAL7016 |
1-10V | ||
| 101502.40.15.02.D | 20W | 4000K | 15° | 1970 |
RAL7016 |
DALI | ||
| 101502.40.15.01.0 | 20W | 4000K | 15° | 1970 |
RAL9006 |
ON/OFF | ||
| 101502.40.15.01.1 | 20W | 4000K | 15° | 1970 |
RAL9006 |
1-10V | ||
| 101502.40.15.01.D | 20W | 4000K | 15° | 1970 |
RAL9006 |
DALI | ||
| 101502.40.35.03.0 | 20W | 4000K | 35° | 1913 |
RAL9005 |
ON/OFF | ||
| 101502.40.35.03.1 | 20W | 4000K | 35° | 1913 |
RAL9005 |
1-10V | ||
| 101502.40.35.03.D | 20W | 4000K | 35° | 1913 |
RAL9005 |
DALI | ||
| 101502.40.35.02.0 | 20W | 4000K | 35° | 1913 |
RAL7016 |
ON/OFF | ||
| 101502.40.35.02.1 | 20W | 4000K | 35° | 1913 |
RAL7016 |
1-10V | ||
| 101502.40.35.02.D | 20W | 4000K | 35° | 1913 |
RAL7016 |
DALI | ||
| 101502.40.35.01.0 | 20W | 4000K | 35° | 1913 |
RAL9006 |
ON/OFF | ||
| 101502.40.35.01.1 | 20W | 4000K | 35° | 1913 |
RAL9006 |
1-10V | ||
| 101502.40.35.01.D | 20W | 4000K | 35° | 1913 |
RAL9006 |
DALI | ||
| 101502.40.55.03.0 | 20W | 4000K | 55° | 1825 |
RAL9005 |
ON/OFF | ||
| 101502.40.55.03.1 | 20W | 4000K | 55° | 1825 |
RAL9005 |
1-10V | ||
| 101502.40.55.03.D | 20W | 4000K | 55° | 1825 |
RAL9005 |
DALI | ||
| 101502.40.55.02.0 | 20W | 4000K | 55° | 1825 |
RAL7016 |
ON/OFF | ||
| 101502.40.55.02.1 | 20W | 4000K | 55° | 1825 |
RAL7016 |
1-10V | ||
| 101502.40.55.02.D | 20W | 4000K | 55° | 1825 |
RAL7016 |
DALI | ||
| 101502.40.55.01.0 | 20W | 4000K | 55° | 1825 |
RAL9006 |
ON/OFF | ||
| 101502.40.55.01.1 | 20W | 4000K | 55° | 1825 |
RAL9006 |
1-10V | ||
| 101502.40.55.01.D | 20W | 4000K | 55° | 1825 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101505.30.DF.03.0 | 20W | 3000K | diffused | 1510 |
RAL9005 |
ON/OFF | ||
| 101505.30.DF.03.1 | 20W | 3000K | diffused | 1510 |
RAL9005 |
1-10V | ||
| 101505.30.DF.03.D | 20W | 3000K | diffused | 1510 |
RAL9005 |
DALI | ||
| 101505.30.DF.02.0 | 20W | 3000K | diffused | 1510 |
RAL7016 |
ON/OFF | ||
| 101505.30.DF.02.1 | 20W | 3000K | diffused | 1510 |
RAL7016 |
1-10V | ||
| 101505.30.DF.02.D | 20W | 3000K | diffused | 1510 |
RAL7016 |
DALI | ||
| 101505.30.DF.01.0 | 20W | 3000K | diffused | 1510 |
RAL9006 |
ON/OFF | ||
| 101505.30.DF.01.1 | 20W | 3000K | diffused | 1510 |
RAL9006 |
1-10V | ||
| 101505.30.DF.01.D | 20W | 3000K | diffused | 1510 |
RAL9006 |
DALI | ||
| 101505.40.DF.03.0 | 20W | 4000K | diffused | 1560 |
RAL9005 |
ON/OFF | ||
| 101505.40.DF.03.1 | 20W | 4000K | diffused | 1560 |
RAL9005 |
1-10V | ||
| 101505.40.DF.03.D | 20W | 4000K | diffused | 1560 |
RAL9005 |
DALI | ||
| 101505.40.DF.02.0 | 20W | 4000K | diffused | 1560 |
RAL7016 |
ON/OFF | ||
| 101505.40.DF.02.1 | 20W | 4000K | diffused | 1560 |
RAL7016 |
1-10V | ||
| 101505.40.DF.02.D | 20W | 4000K | diffused | 1560 |
RAL7016 |
DALI | ||
| 101505.40.DF.01.0 | 20W | 4000K | diffused | 1560 |
RAL9006 |
ON/OFF | ||
| 101505.40.DF.01.1 | 20W | 4000K | diffused | 1560 |
RAL9006 |
1-10V | ||
| 101505.40.DF.01.D | 20W | 4000K | diffused | 1560 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101506.30.AS.03.0 | 20W | 3000K | generic asymmetric | 1560 |
RAL9005 |
ON/OFF | ||
| 101506.30.AS.03.1 | 20W | 3000K | generic asymmetric | 1560 |
RAL9005 |
1-10V | ||
| 101506.30.AS.03.D | 20W | 3000K | generic asymmetric | 1560 |
RAL9005 |
DALI | ||
| 101506.30.AS.02.0 | 20W | 3000K | generic asymmetric | 1560 |
RAL7016 |
ON/OFF | ||
| 101506.30.AS.02.1 | 20W | 3000K | generic asymmetric | 1560 |
RAL7016 |
1-10V | ||
| 101506.30.AS.02.D | 20W | 3000K | generic asymmetric | 1560 |
RAL7016 |
DALI | ||
| 101506.30.AS.01.0 | 20W | 3000K | generic asymmetric | 1560 |
RAL9006 |
ON/OFF | ||
| 101506.30.AS.01.1 | 20W | 3000K | generic asymmetric | 1560 |
RAL9006 |
1-10V | ||
| 101506.30.AS.01.D | 20W | 3000K | generic asymmetric | 1560 |
RAL9006 |
DALI | ||
| 101506.40.AS.03.0 | 20W | 4000K | generic asymmetric | 1610 |
RAL9005 |
ON/OFF | ||
| 101506.40.AS.03.1 | 20W | 4000K | generic asymmetric | 1610 |
RAL9005 |
1-10V | ||
| 101506.40.AS.03.D | 20W | 4000K | generic asymmetric | 1610 |
RAL9005 |
DALI | ||
| 101506.40.AS.02.0 | 20W | 4000K | generic asymmetric | 1610 |
RAL7016 |
ON/OFF | ||
| 101506.40.AS.02.1 | 20W | 4000K | generic asymmetric | 1610 |
RAL7016 |
1-10V | ||
| 101506.40.AS.02.D | 20W | 4000K | generic asymmetric | 1610 |
RAL7016 |
DALI | ||
| 101506.40.AS.01.0 | 20W | 4000K | generic asymmetric | 1610 |
RAL9006 |
ON/OFF | ||
| 101506.40.AS.01.1 | 20W | 4000K | generic asymmetric | 1610 |
RAL9006 |
1-10V | ||
| 101506.40.AS.01.D | 20W | 4000K | generic asymmetric | 1610 |
RAL9006 |
DALI | ||
