Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 3590” LED. IP66 rating.

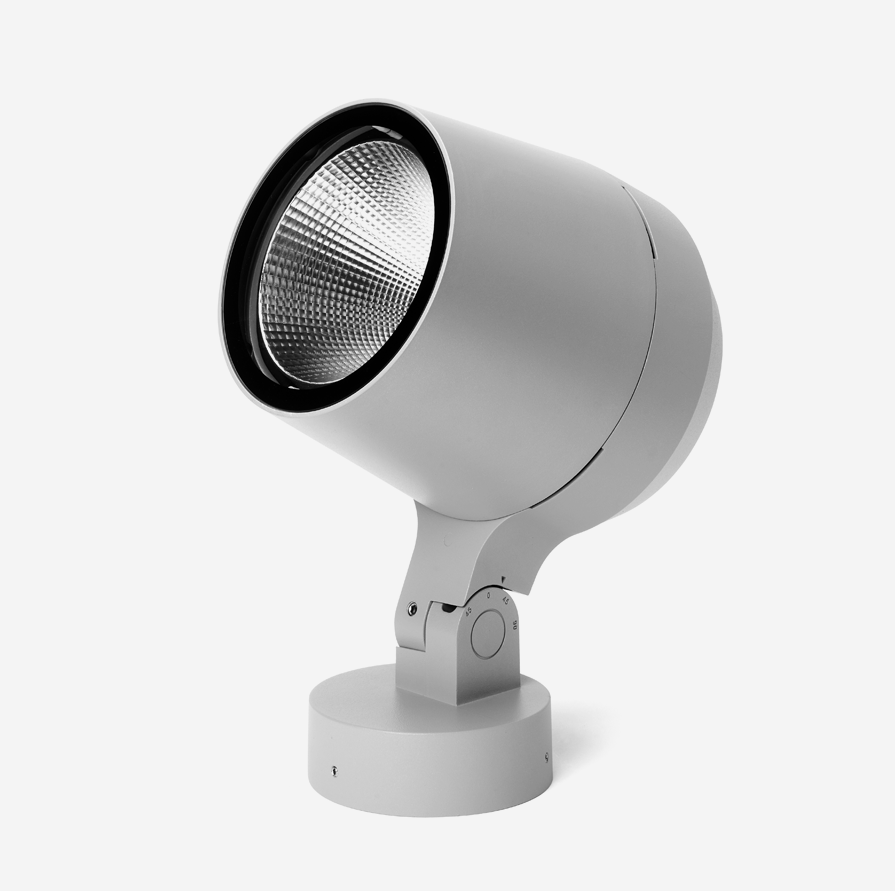

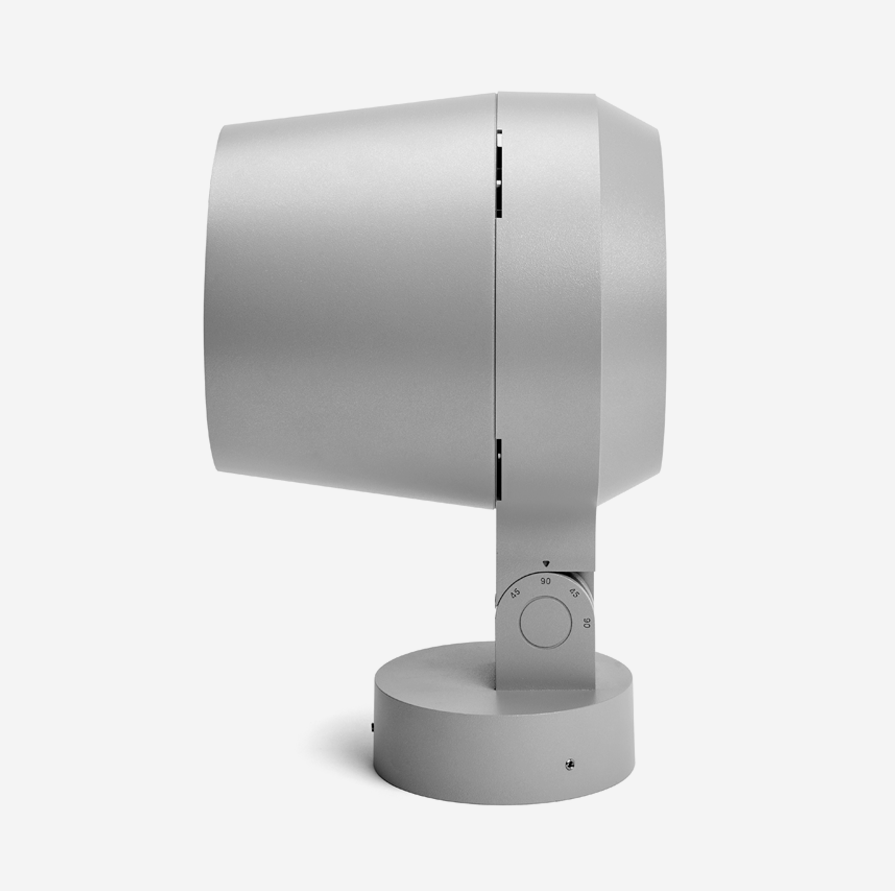

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101407.27.14.03.0 | 82W | 2700K | 14° | 9519 |
RAL9005 |
ON/OFF | ||
| 101407.27.14.03.D | 82W | 2700K | 14° | 9519 |
RAL9005 |
DALI | ||
| 101407.27.14.02.0 | 82W | 2700K | 14° | 9519 |
RAL7016 |
ON/OFF | ||
| 101407.27.14.02.D | 82W | 2700K | 14° | 9519 |
RAL7016 |
DALI | ||
| 101407.27.14.01.0 | 82W | 2700K | 14° | 9519 |
RAL9006 |
ON/OFF | ||
| 101407.27.14.01.D | 82W | 2700K | 14° | 9519 |
RAL9006 |
DALI | ||
| 101407.27.20.03.0 | 82W | 2700K | 20° | 9595 |
RAL9005 |
ON/OFF | ||
| 101407.27.20.03.D | 82W | 2700K | 20° | 9595 |
RAL9005 |
DALI | ||
| 101407.27.20.02.0 | 82W | 2700K | 20° | 9595 |
RAL7016 |
ON/OFF | ||
| 101407.27.20.02.D | 82W | 2700K | 20° | 9595 |
RAL7016 |
DALI | ||
| 101407.27.20.01.0 | 82W | 2700K | 20° | 9595 |
RAL9006 |
ON/OFF | ||
| 101407.27.20.01.D | 82W | 2700K | 20° | 9595 |
RAL9006 |
DALI | ||
| 101407.30.14.03.0 | 82W | 3000K | 14° | 10020 |
RAL9005 |
ON/OFF | ||
| 101407.30.14.03.D | 82W | 3000K | 14° | 10020 |
RAL9005 |
DALI | ||
| 101407.30.14.02.0 | 82W | 3000K | 14° | 10020 |
RAL7016 |
ON/OFF | ||
| 101407.30.14.02.D | 82W | 3000K | 14° | 10020 |
RAL7016 |
DALI | ||
| 101407.30.14.01.0 | 82W | 3000K | 14° | 10020 |
RAL9006 |
ON/OFF | ||
| 101407.30.14.01.D | 82W | 3000K | 14° | 10020 |
RAL9006 |
DALI | ||
| 101407.30.20.03.0 | 82W | 3000K | 20° | 10100 |
RAL9005 |
ON/OFF | ||
| 101407.30.20.03.D | 82W | 3000K | 20° | 10100 |
RAL9005 |
DALI | ||
| 101407.30.20.02.0 | 82W | 3000K | 20° | 10100 |
RAL7016 |
ON/OFF | ||
| 101407.30.20.02.D | 82W | 3000K | 20° | 10100 |
RAL7016 |
DALI | ||
| 101407.30.20.01.0 | 82W | 3000K | 20° | 10100 |
RAL9006 |
ON/OFF | ||
| 101407.30.20.01.D | 82W | 3000K | 20° | 10100 |
RAL9006 |
DALI | ||
| 101407.40.14.03.0 | 82W | 4000K | 14° | 10120 |
RAL9005 |
ON/OFF | ||
| 101407.40.14.03.D | 82W | 4000K | 14° | 10120 |
RAL9005 |
DALI | ||
| 101407.40.14.02.0 | 82W | 4000K | 14° | 10120 |
RAL7016 |
ON/OFF | ||
| 101407.40.14.02.D | 82W | 4000K | 14° | 10120 |
RAL7016 |
DALI | ||
| 101407.40.14.01.0 | 82W | 4000K | 14° | 10120 |
RAL9006 |
ON/OFF | ||
| 101407.40.14.01.D | 82W | 4000K | 14° | 10120 |
RAL9006 |
DALI | ||
| 101407.40.20.03.0 | 82W | 4000K | 20° | 10200 |
RAL9005 |
ON/OFF | ||
| 101407.40.20.03.D | 82W | 4000K | 20° | 10200 |
RAL9005 |
DALI | ||
| 101407.40.20.02.0 | 82W | 4000K | 20° | 10200 |
RAL7016 |
ON/OFF | ||
| 101407.40.20.02.D | 82W | 4000K | 20° | 10200 |
RAL7016 |
DALI | ||
| 101407.40.20.01.0 | 82W | 4000K | 20° | 10200 |
RAL9006 |
ON/OFF | ||
| 101407.40.20.01.D | 82W | 4000K | 20° | 10200 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101408.27.04.03.0 | 88W | 2700K | 4° | 9025 |
RAL9005 |
ON/OFF | ||
| 101408.27.04.03.D | 88W | 2700K | 4° | 9025 |
RAL9005 |
DALI | ||
| 101408.27.04.02.0 | 88W | 2700K | 4° | 9025 |
RAL7016 |
ON/OFF | ||
| 101408.27.04.02.D | 88W | 2700K | 4° | 9025 |
RAL7016 |
DALI | ||
| 101408.27.04.01.0 | 88W | 2700K | 4° | 9025 |
RAL9006 |
ON/OFF | ||
| 101408.27.04.01.D | 88W | 2700K | 4° | 9025 |
RAL9006 |
DALI | ||
| 101408.27.10.03.0 | 88W | 2700K | 10° | 8978 |
RAL9005 |
ON/OFF | ||
| 101408.27.10.03.D | 88W | 2700K | 10° | 8978 |
RAL9005 |
DALI | ||
| 101408.27.10.02.0 | 88W | 2700K | 10° | 8978 |
RAL7016 |
ON/OFF | ||
| 101408.27.10.02.D | 88W | 2700K | 10° | 8978 |
RAL7016 |
DALI | ||
| 101408.27.10.01.0 | 88W | 2700K | 10° | 8978 |
RAL9006 |
ON/OFF | ||
| 101408.27.10.01.D | 88W | 2700K | 10° | 8978 |
RAL9006 |
DALI | ||
| 101408.27.28.03.0 | 88W | 2700K | 28° | 8911 |
RAL9005 |
ON/OFF | ||
| 101408.27.28.03.D | 88W | 2700K | 28° | 8911 |
RAL9005 |
DALI | ||
| 101408.27.28.02.0 | 88W | 2700K | 28° | 8911 |
RAL7016 |
ON/OFF | ||
| 101408.27.28.02.D | 88W | 2700K | 28° | 8911 |
RAL7016 |
DALI | ||
| 101408.27.28.01.0 | 88W | 2700K | 28° | 8911 |
RAL9006 |
ON/OFF | ||
| 101408.27.28.01.D | 88W | 2700K | 28° | 8911 |
RAL9006 |
DALI | ||
| 101408.27.55.03.0 | 88W | 2700K | 55° | 7574 |
RAL9005 |
ON/OFF | ||
| 101408.27.55.03.D | 88W | 2700K | 55° | 7574 |
RAL9005 |
DALI | ||
| 101408.27.55.02.0 | 88W | 2700K | 55° | 7574 |
RAL7016 |
ON/OFF | ||
| 101408.27.55.02.D | 88W | 2700K | 55° | 7574 |
RAL7016 |
DALI | ||
| 101408.27.55.01.0 | 88W | 2700K | 55° | 7574 |
RAL9006 |
ON/OFF | ||
| 101408.27.55.01.D | 88W | 2700K | 55° | 7574 |
RAL9006 |
DALI | ||
| 101408.30.04.03.0 | 88W | 3000K | 4° | 9500 |
RAL9005 |
ON/OFF | ||
| 101408.30.04.03.D | 88W | 3000K | 4° | 9500 |
RAL9005 |
DALI | ||
| 101408.30.04.02.0 | 88W | 3000K | 4° | 9500 |
RAL7016 |
ON/OFF | ||
| 101408.30.04.02.D | 88W | 3000K | 4° | 9500 |
RAL7016 |
DALI | ||
| 101408.30.04.01.0 | 88W | 3000K | 4° | 9500 |
RAL9006 |
ON/OFF | ||
| 101408.30.04.01.D | 88W | 3000K | 4° | 9500 |
RAL9006 |
DALI | ||
| 101408.30.10.03.0 | 88W | 3000K | 10° | 9450 |
RAL9005 |
ON/OFF | ||
| 101408.30.10.03.D | 88W | 3000K | 10° | 9450 |
RAL9005 |
DALI | ||
| 101408.30.10.02.0 | 88W | 3000K | 10° | 9450 |
RAL7016 |
ON/OFF | ||
| 101408.30.10.02.D | 88W | 3000K | 10° | 9450 |
RAL7016 |
DALI | ||
| 101408.30.10.01.0 | 88W | 3000K | 10° | 9450 |
RAL9006 |
ON/OFF | ||
| 101408.30.10.01.D | 88W | 3000K | 10° | 9450 |
RAL9006 |
DALI | ||
| 101408.30.28.03.0 | 88W | 3000K | 28° | 9380 |
RAL9005 |
ON/OFF | ||
| 101408.30.28.03.D | 88W | 3000K | 28° | 9380 |
RAL9005 |
DALI | ||
| 101408.30.28.02.0 | 88W | 3000K | 28° | 9380 |
RAL7016 |
ON/OFF | ||
| 101408.30.28.02.D | 88W | 3000K | 28° | 9380 |
RAL7016 |
DALI | ||
| 101408.30.28.01.0 | 88W | 3000K | 28° | 9380 |
RAL9006 |
ON/OFF | ||
| 101408.30.28.01.D | 88W | 3000K | 28° | 9380 |
RAL9006 |
DALI | ||
| 101408.30.55.03.0 | 88W | 3000K | 55° | 7973 |
RAL9005 |
ON/OFF | ||
| 101408.30.55.03.D | 88W | 3000K | 55° | 7973 |
RAL9005 |
DALI | ||
| 101408.30.55.02.0 | 88W | 3000K | 55° | 7973 |
RAL7016 |
ON/OFF | ||
| 101408.30.55.02.D | 88W | 3000K | 55° | 7973 |
RAL7016 |
DALI | ||
| 101408.30.55.01.0 | 88W | 3000K | 55° | 7973 |
RAL9006 |
ON/OFF | ||
| 101408.30.55.01.D | 88W | 3000K | 55° | 7973 |
RAL9006 |
DALI | ||
| 101408.40.04.03.0 | 88W | 4000K | 4° | 9600 |
RAL9005 |
ON/OFF | ||
| 101408.40.04.03.D | 88W | 4000K | 4° | 9600 |
RAL9005 |
DALI | ||
| 101408.40.04.02.0 | 88W | 4000K | 4° | 9600 |
RAL7016 |
ON/OFF | ||
| 101408.40.04.02.D | 88W | 4000K | 4° | 9600 |
RAL7016 |
DALI | ||
| 101408.40.04.01.0 | 88W | 4000K | 4° | 9600 |
RAL9006 |
ON/OFF | ||
| 101408.40.04.01.D | 88W | 4000K | 4° | 9600 |
RAL9006 |
DALI | ||
| 101408.40.10.03.0 | 88W | 4000K | 10° | 9550 |
RAL9005 |
ON/OFF | ||
| 101408.40.10.03.D | 88W | 4000K | 10° | 9550 |
RAL9005 |
DALI | ||
| 101408.40.10.02.0 | 88W | 4000K | 10° | 9550 |
RAL7016 |
ON/OFF | ||
| 101408.40.10.02.D | 88W | 4000K | 10° | 9550 |
RAL7016 |
DALI | ||
| 101408.40.10.01.0 | 88W | 4000K | 10° | 9550 |
RAL9006 |
ON/OFF | ||
| 101408.40.10.01.D | 88W | 4000K | 10° | 9550 |
RAL9006 |
DALI | ||
| 101408.40.28.03.0 | 88W | 4000K | 28° | 9480 |
RAL9005 |
ON/OFF | ||
| 101408.40.28.03.D | 88W | 4000K | 28° | 9480 |
RAL9005 |
DALI | ||
| 101408.40.28.02.0 | 88W | 4000K | 28° | 9480 |
RAL7016 |
ON/OFF | ||
| 101408.40.28.02.D | 88W | 4000K | 28° | 9480 |
RAL7016 |
DALI | ||
| 101408.40.28.01.0 | 88W | 4000K | 28° | 9480 |
RAL9006 |
ON/OFF | ||
| 101408.40.28.01.D | 88W | 4000K | 28° | 9480 |
RAL9006 |
DALI | ||
| 101408.40.55.03.0 | 88W | 4000K | 55° | 8058 |
RAL9005 |
ON/OFF | ||
| 101408.40.55.03.D | 88W | 4000K | 55° | 8058 |
RAL9005 |
DALI | ||
| 101408.40.55.02.0 | 88W | 4000K | 55° | 8058 |
RAL7016 |
ON/OFF | ||
| 101408.40.55.02.D | 88W | 4000K | 55° | 8058 |
RAL7016 |
DALI | ||
| 101408.40.55.01.0 | 88W | 4000K | 55° | 8058 |
RAL9006 |
ON/OFF | ||
| 101408.40.55.01.D | 88W | 4000K | 55° | 8058 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101408.RW.12.03.X | 56W | RGBW | 12° | 2000 |
RAL9005 |
DMX | ||
| 101408.RW.12.02.X | 56W | RGBW | 12° | 2000 |
RAL7016 |
DMX | ||
| 101408.RW.12.01.X | 56W | RGBW | 12° | 2000 |
RAL9006 |
DMX | ||
| 101408.RW.25.03.X | 56W | RGBW | 25° | 1984 |
RAL9005 |
DMX | ||
| 101408.RW.25.02.X | 56W | RGBW | 25° | 1984 |
RAL7016 |
DMX | ||
| 101408.RW.25.01.X | 56W | RGBW | 25° | 1984 |
RAL9006 |
DMX | ||
| 101408.RW.35.03.X | 56W | RGBW | 35° | 1962 |
RAL9005 |
DMX | ||
| 101408.RW.35.02.X | 56W | RGBW | 35° | 1962 |
RAL7016 |
DMX | ||
| 101408.RW.35.01.X | 56W | RGBW | 35° | 1962 |
RAL9006 |
DMX | ||
