Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copperfree aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, DMX driver integrated; with 3 x CREE “XML” RGBW LED. IP66 rating.

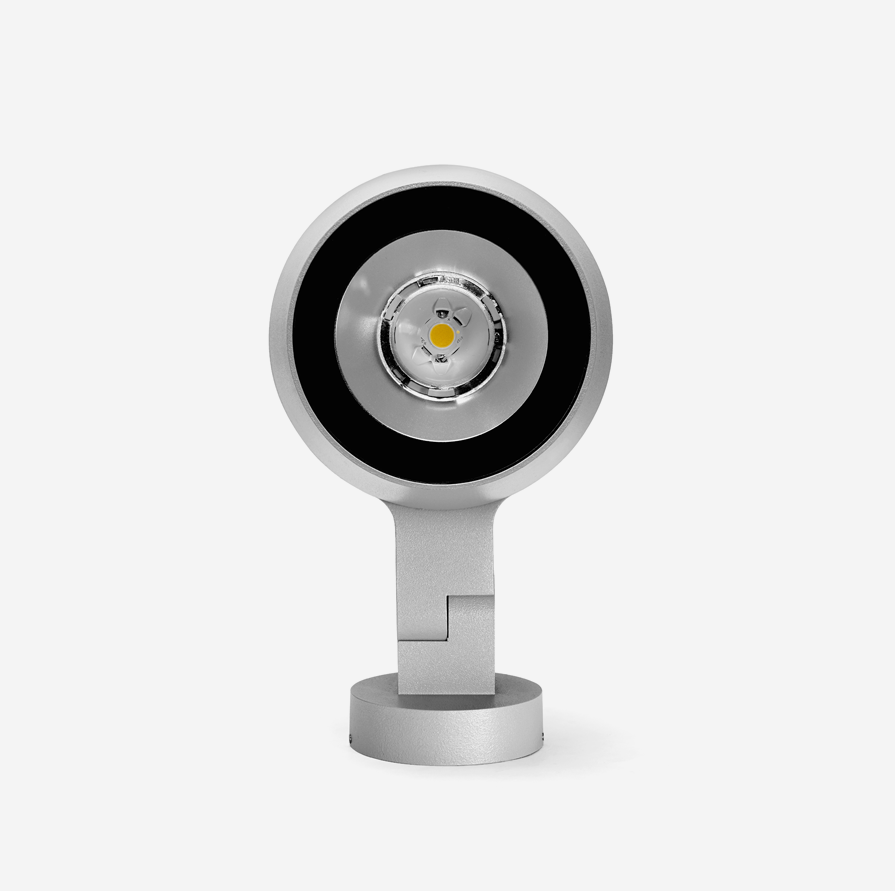

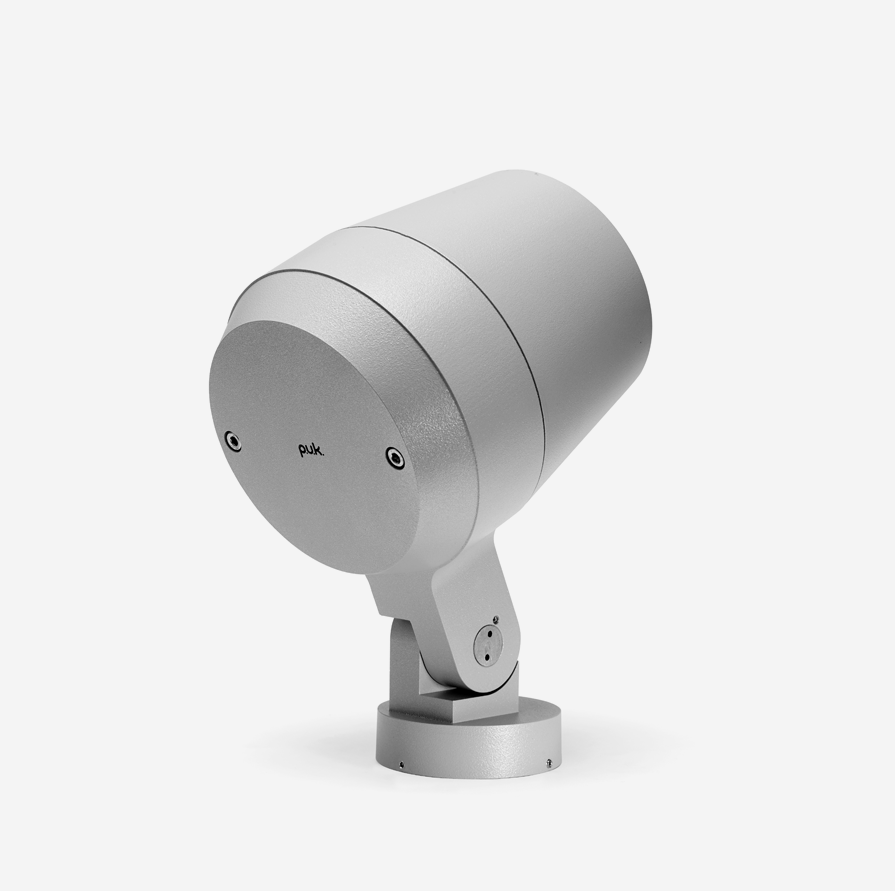

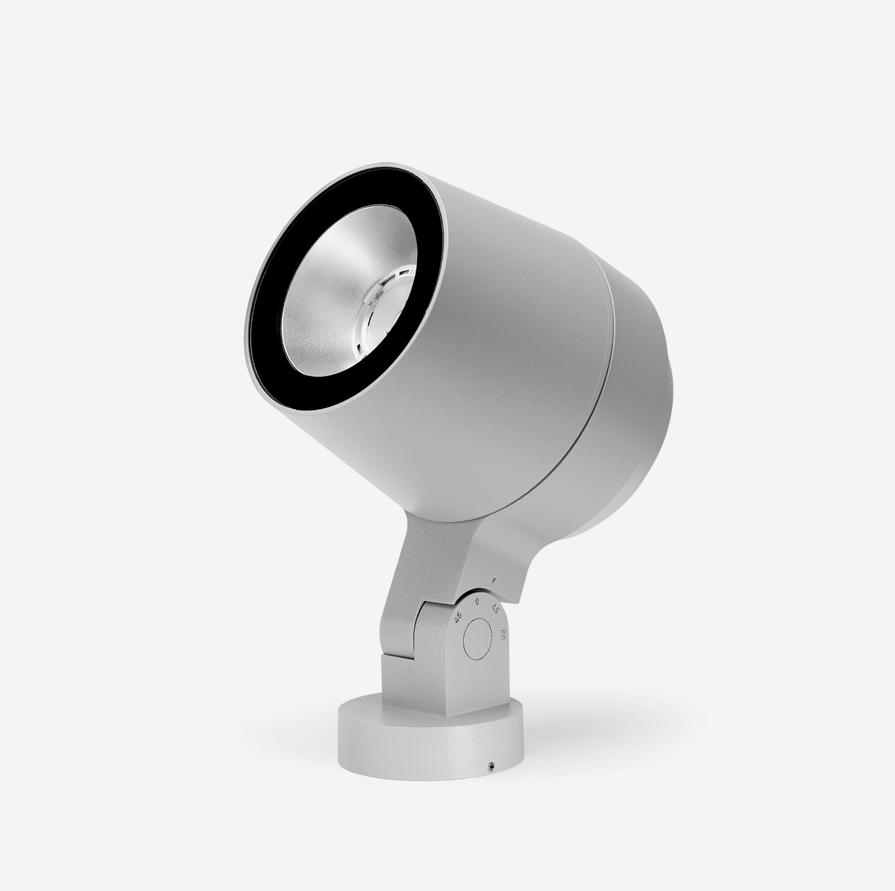

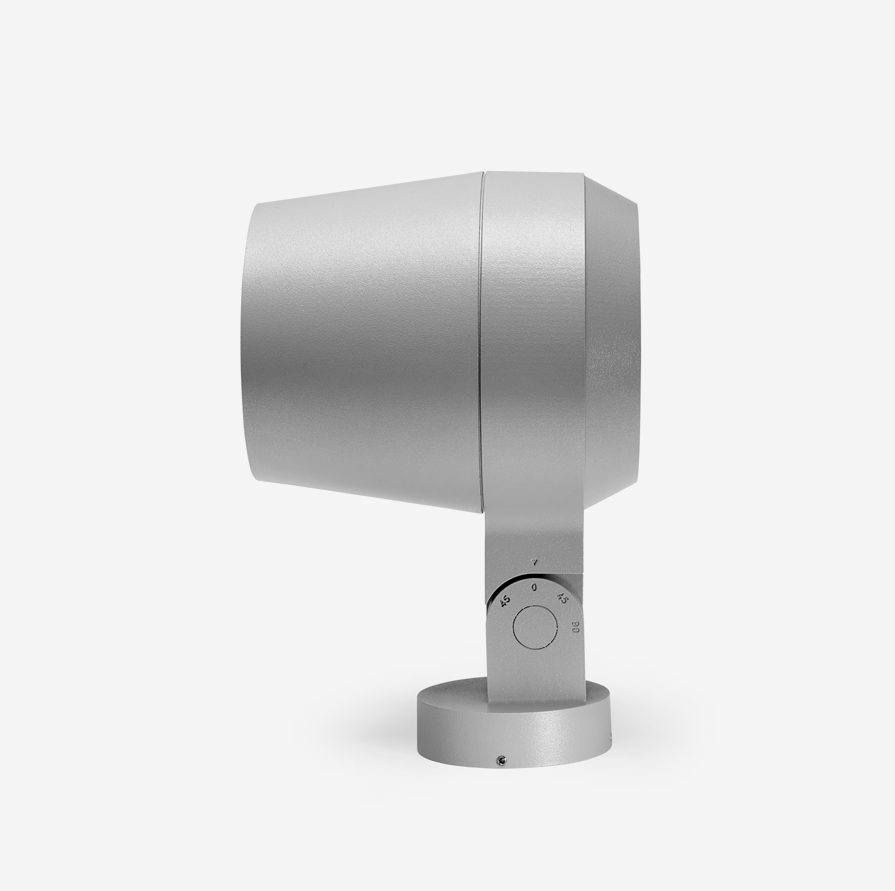

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101405.RW.12.03.X | 14W | RGBW | 12° | 480 |
RAL9005 |
DMX | ||
| 101405.RW.12.03.D | 14W | RGBW | 12° | 480 |
RAL9005 |
DALI | ||
| 101405.RW.12.02.X | 14W | RGBW | 12° | 480 |
RAL7016 |
DMX | ||
| 101405.RW.12.02.D | 14W | RGBW | 12° | 480 |
RAL7016 |
DALI | ||
| 101405.RW.12.01.X | 14W | RGBW | 12° | 480 |
RAL9006 |
DMX | ||
| 101405.RW.12.01.D | 14W | RGBW | 12° | 480 |
RAL9006 |
DALI | ||
| 101405.RW.25.03.X | 14W | RGBW | 25° | 468 |
RAL9005 |
DMX | ||
| 101405.RW.25.03.D | 14W | RGBW | 25° | 468 |
RAL9005 |
DALI | ||
| 101405.RW.25.02.X | 14W | RGBW | 25° | 468 |
RAL7016 |
DMX | ||
| 101405.RW.25.02.D | 14W | RGBW | 25° | 468 |
RAL7016 |
DALI | ||
| 101405.RW.25.01.X | 14W | RGBW | 25° | 468 |
RAL9006 |
DMX | ||
| 101405.RW.25.01.D | 14W | RGBW | 25° | 468 |
RAL9006 |
DALI | ||
| 101405.RW.35.03.X | 14W | RGBW | 35° | 457 |
RAL9005 |
DMX | ||
| 101405.RW.35.03.D | 14W | RGBW | 35° | 457 |
RAL9005 |
DALI | ||
| 101405.RW.35.02.X | 14W | RGBW | 35° | 457 |
RAL7016 |
DMX | ||
| 101405.RW.35.02.D | 14W | RGBW | 35° | 457 |
RAL7016 |
DALI | ||
| 101405.RW.35.01.X | 14W | RGBW | 35° | 457 |
RAL9006 |
DMX | ||
| 101405.RW.35.01.D | 14W | RGBW | 35° | 457 |
RAL9006 |
DALI | ||
