Floodlight for outdoor installation on a façade/wall, with U shape fixing bracket allowing vertical adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets, with screws in stainless steel. Remote 24V DC power supply needed, with 1 x CREE “XHP35” LED. IP66 rating.

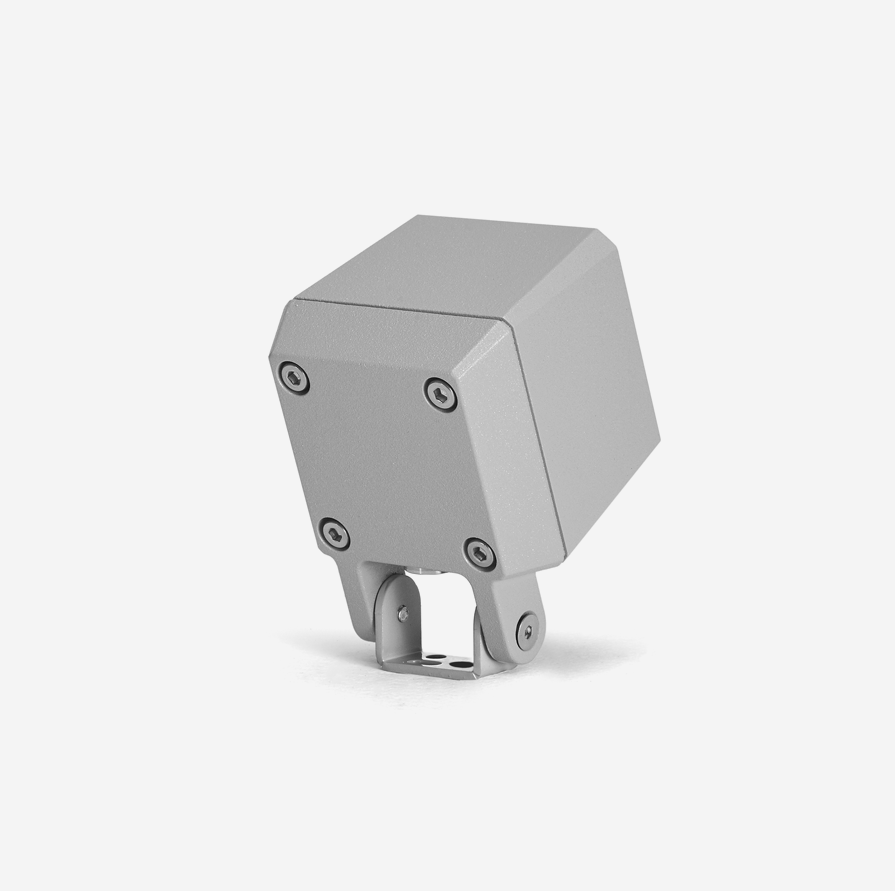

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101601.27.04.03.0 | 6W | 2700K | 4° | 485 |
RAL9005 |
ON/OFF | ||
| 101601.27.04.02.0 | 6W | 2700K | 4° | 485 |
RAL7016 |
ON/OFF | ||
| 101601.27.04.01.0 | 6W | 2700K | 4° | 485 |
RAL9006 |
ON/OFF | ||
| 101601.27.10.03.0 | 6W | 2700K | 10° | 465 |
RAL9005 |
ON/OFF | ||
| 101601.27.10.02.0 | 6W | 2700K | 10° | 465 |
RAL7016 |
ON/OFF | ||
| 101601.27.10.01.0 | 6W | 2700K | 10° | 465 |
RAL9006 |
ON/OFF | ||
| 101601.27.28.03.0 | 6W | 2700K | 28° | 450 |
RAL9005 |
ON/OFF | ||
| 101601.27.28.02.0 | 6W | 2700K | 28° | 450 |
RAL7016 |
ON/OFF | ||
| 101601.27.28.01.0 | 6W | 2700K | 28° | 450 |
RAL9006 |
ON/OFF | ||
| 101601.27.55.03.0 | 6W | 2700K | 55° | 383 |
RAL9005 |
ON/OFF | ||
| 101601.27.55.02.0 | 6W | 2700K | 55° | 383 |
RAL7016 |
ON/OFF | ||
| 101601.27.55.01.0 | 6W | 2700K | 55° | 383 |
RAL9006 |
ON/OFF | ||
| 101601.30.04.03.0 | 6W | 3000K | 4° | 510 |
RAL9005 |
ON/OFF | ||
| 101601.30.04.02.0 | 6W | 3000K | 4° | 510 |
RAL7016 |
ON/OFF | ||
| 101601.30.04.01.0 | 6W | 3000K | 4° | 510 |
RAL9006 |
ON/OFF | ||
| 101601.30.10.03.0 | 6W | 3000K | 10° | 489 |
RAL9005 |
ON/OFF | ||
| 101601.30.10.02.0 | 6W | 3000K | 10° | 489 |
RAL7016 |
ON/OFF | ||
| 101601.30.10.01.0 | 6W | 3000K | 10° | 489 |
RAL9006 |
ON/OFF | ||
| 101601.30.28.03.0 | 6W | 3000K | 28° | 474 |
RAL9005 |
ON/OFF | ||
| 101601.30.28.02.0 | 6W | 3000K | 28° | 474 |
RAL7016 |
ON/OFF | ||
| 101601.30.28.01.0 | 6W | 3000K | 28° | 474 |
RAL9006 |
ON/OFF | ||
| 101601.30.55.03.0 | 6W | 3000K | 55° | 403 |
RAL9005 |
ON/OFF | ||
| 101601.30.55.02.0 | 6W | 3000K | 55° | 403 |
RAL7016 |
ON/OFF | ||
| 101601.30.55.01.0 | 6W | 3000K | 55° | 403 |
RAL9006 |
ON/OFF | ||
| 101601.40.04.03.0 | 6W | 4000K | 4° | 520 |
RAL9005 |
ON/OFF | ||
| 101601.40.04.02.0 | 6W | 4000K | 4° | 520 |
RAL7016 |
ON/OFF | ||
| 101601.40.04.01.0 | 6W | 4000K | 4° | 520 |
RAL9006 |
ON/OFF | ||
| 101601.40.10.03.0 | 6W | 4000K | 10° | 499 |
RAL9005 |
ON/OFF | ||
| 101601.40.10.02.0 | 6W | 4000K | 10° | 499 |
RAL7016 |
ON/OFF | ||
| 101601.40.10.01.0 | 6W | 4000K | 10° | 499 |
RAL9006 |
ON/OFF | ||
| 101601.40.28.03.0 | 6W | 4000K | 28° | 484 |
RAL9005 |
ON/OFF | ||
| 101601.40.28.02.0 | 6W | 4000K | 28° | 484 |
RAL7016 |
ON/OFF | ||
| 101601.40.28.01.0 | 6W | 4000K | 28° | 484 |
RAL9006 |
ON/OFF | ||
| 101601.40.55.03.0 | 6W | 4000K | 55° | 411 |
RAL9005 |
ON/OFF | ||
| 101601.40.55.02.0 | 6W | 4000K | 55° | 411 |
RAL7016 |
ON/OFF | ||
| 101601.40.55.01.0 | 6W | 4000K | 55° | 411 |
RAL9006 |
ON/OFF | ||
