Projector for outdoor installation on a façade/wall. Completely realized in stainless steel AISI 316L, tempered safety glass, moulded silicone gasket and stainless steel screws. With 1 direct 220-240V LUMENS “EDC 38C” COB LED. IP66 rating.

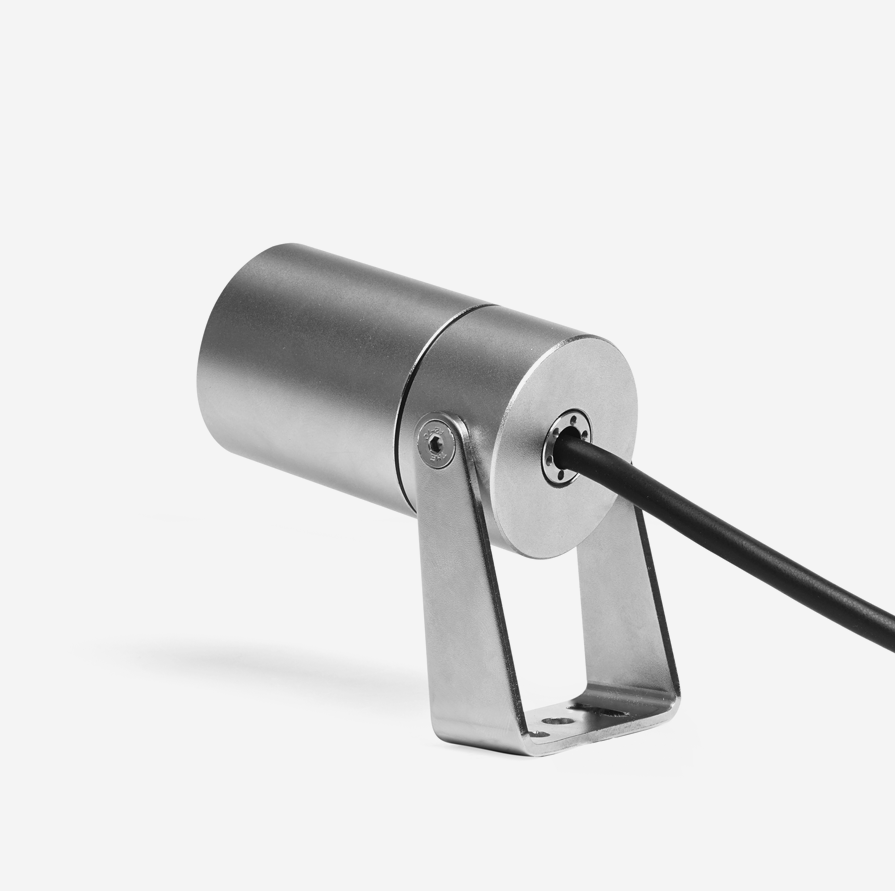

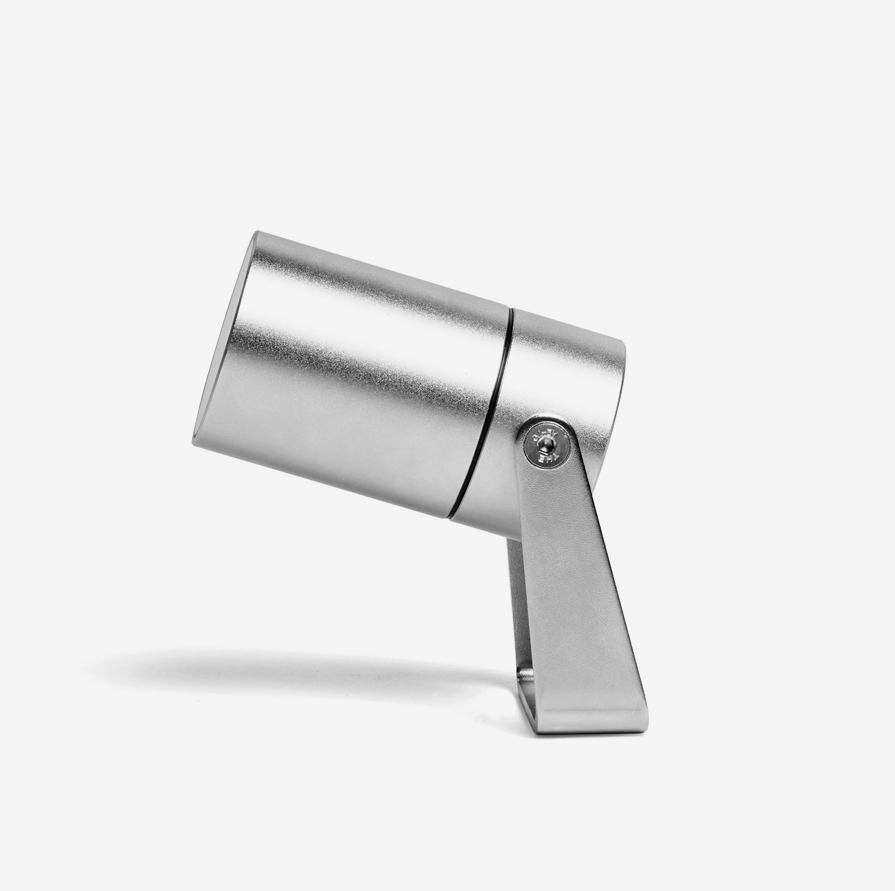

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102202.30.20.SS.0 | 4W | 3000K | 20° | 250 |
STAINLESS STEEL |
ON/OFF | ||
| 102202.30.40.SS.0 | 4W | 3000K | 40° | 240 |
STAINLESS STEEL |
ON/OFF | ||
| 102202.40.20.SS.0 | 4W | 4000K | 20° | 260 |
STAINLESS STEEL |
ON/OFF | ||
| 102202.40.40.SS.0 | 4W | 4000K | 40° | 250 |
STAINLESS STEEL |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102203.27.04.SS.0 | 5W (@350mA) / 7W (@500mA) | 2700K | 4° | 485 lm (@350mA) / 656 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.27.10.SS.0 | 5W (@350mA) / 7W (@500mA) | 2700K | 10° | 465 lm (@350mA) / 629 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.27.28.SS.0 | 5W (@350mA) / 7W (@500mA) | 2700K | 28° | 450 lm (@350mA) / 609 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.27.55.SS.0 | 5W (@350mA) / 7W (@500mA) | 2700K | 55° | 383 lm (@350mA) / 519 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.04.SS.0 | 5W (@350mA) / 7W (@500mA) | 3000K | 4° | 510 lm (@350mA) / 690 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.10.SS.0 | 5W (@350mA) / 7W (@500mA) | 3000K | 10° | 489 lm (@350mA) / 662 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.28.SS.0 | 5W (@350mA) / 7W (@500mA) | 3000K | 28° | 474 lm (@350mA) / 642 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.55.SS.0 | 5W (@350mA) / 7W (@500mA) | 3000K | 55° | 403 lm (@350mA) / 546 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.04.SS.0 | 5W (@350mA) / 7W (@500mA) | 4000K | 4° | 520 lm (@350mA) / 703 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.10.SS.0 | 5W (@350mA) / 7W (@500mA) | 4000K | 10° | 499 lm (@350mA) / 676 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.28.SS.0 | 5W (@350mA) / 7W (@500mA) | 4000K | 28° | 484 lm (@350mA) / 656 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.55.SS.0 | 5W (@350mA) / 7W (@500mA) | 4000K | 55° | 411 lm (@350mA) / 558 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102203.RW.12.SS.D | 4.5W | RGBW | 12° | 160 |
STAINLESS STEEL |
DALI | ||
| 102203.RW.12.SS.X | 4.5W | RGBW | 12° | 160 |
STAINLESS STEEL |
DMX | ||
| 102203.RW.25.SS.D | 4.5W | RGBW | 25° | 152 |
STAINLESS STEEL |
DALI | ||
| 102203.RW.25.SS.X | 4.5W | RGBW | 25° | 152 |
STAINLESS STEEL |
DMX | ||
| 102203.RW.35.SS.D | 4.5W | RGBW | 35° | 145 |
STAINLESS STEEL |
DALI | ||
| 102203.RW.35.SS.X | 4.5W | RGBW | 35° | 145 |
STAINLESS STEEL |
DMX | ||
