Round floodlight for outdoor installation on a façade/wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB 3070 COB LED. IP65 rating.

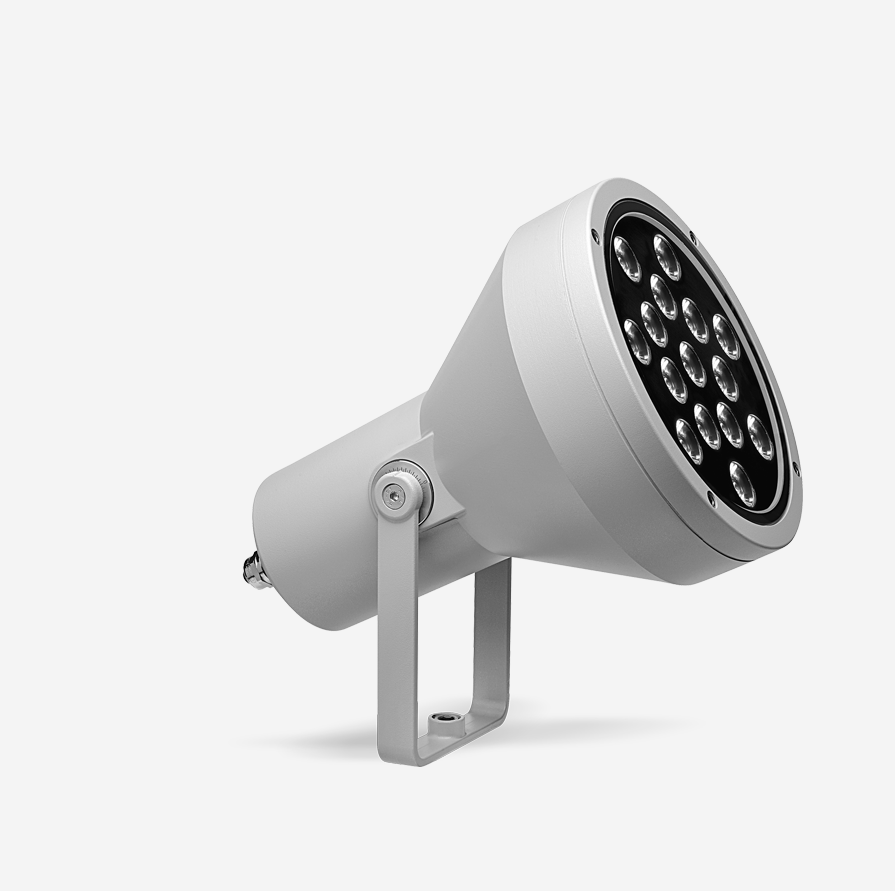

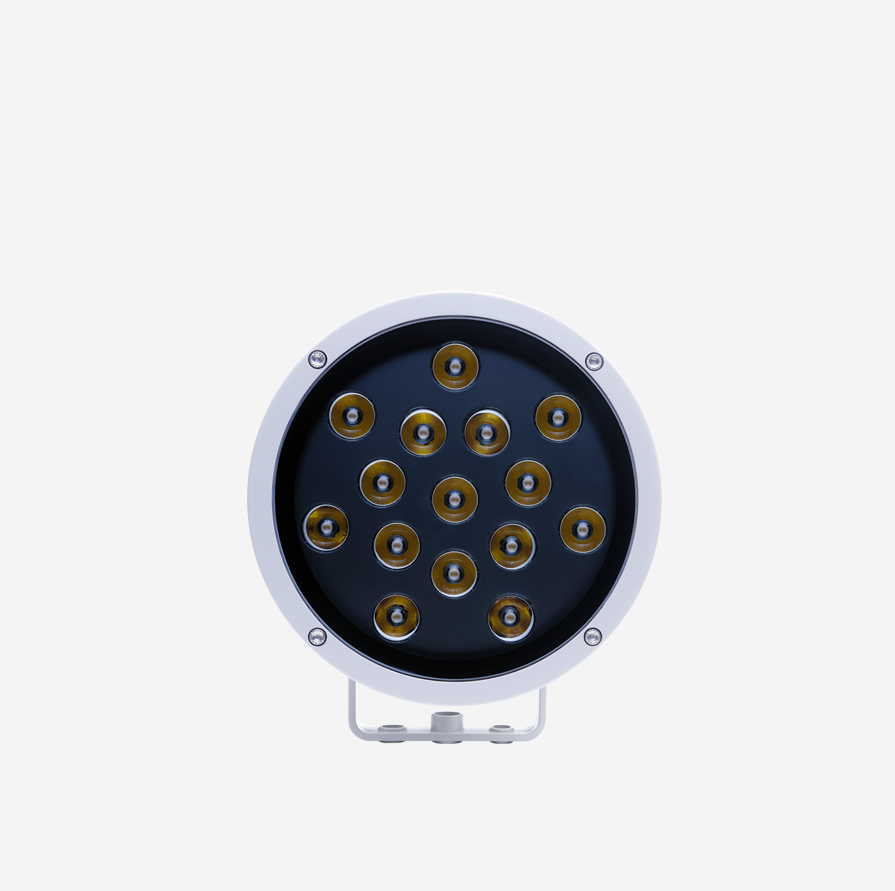

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101106.27.35.02.0 | 55W | 2700K | 35° | 4494 |
RAL7016 |
ON/OFF | ||
| 101106.27.35.03.D | 55W | 2700K | 35° | 4494 |
RAL9005 |
DALI | ||
| 101106.27.35.03.1 | 55W | 2700K | 35° | 4494 |
RAL9005 |
1-10V | ||
| 101106.27.35.03.0 | 55W | 2700K | 35° | 4494 |
RAL9005 |
ON/OFF | ||
| 101106.27.35.01.D | 55W | 2700K | 35° | 4494 |
RAL9006 |
DALI | ||
| 101106.27.35.01.1 | 55W | 2700K | 35° | 4494 |
RAL9006 |
1-10V | ||
| 101106.27.35.01.0 | 55W | 2700K | 35° | 4494 |
RAL9006 |
ON/OFF | ||
| 101106.27.35.02.D | 55W | 2700K | 35° | 4494 |
RAL7016 |
DALI | ||
| 101106.27.35.02.1 | 55W | 2700K | 35° | 4494 |
RAL7016 |
1-10V | ||
| 101106.30.35.01.0 | 55W | 3000K | 35° | 4730 |
RAL9006 |
ON/OFF | ||
| 101106.30.35.02.D | 55W | 3000K | 35° | 4730 |
RAL7016 |
DALI | ||
| 101106.30.35.02.1 | 55W | 3000K | 35° | 4730 |
RAL7016 |
1-10V | ||
| 101106.30.35.02.0 | 55W | 3000K | 35° | 4730 |
RAL7016 |
ON/OFF | ||
| 101106.30.35.03.D | 55W | 3000K | 35° | 4730 |
RAL9005 |
DALI | ||
| 101106.30.35.03.1 | 55W | 3000K | 35° | 4730 |
RAL9005 |
1-10V | ||
| 101106.30.35.03.0 | 55W | 3000K | 35° | 4730 |
RAL9005 |
ON/OFF | ||
| 101106.30.35.01.D | 55W | 3000K | 35° | 4730 |
RAL9006 |
DALI | ||
| 101106.30.35.01.1 | 55W | 3000K | 35° | 4730 |
RAL9006 |
1-10V | ||
| 101106.40.35.03.1 | 55W | 4000K | 35° | 4980 |
RAL9005 |
1-10V | ||
| 101106.40.35.03.0 | 55W | 4000K | 35° | 4980 |
RAL9005 |
ON/OFF | ||
| 101106.40.35.01.D | 55W | 4000K | 35° | 4980 |
RAL9006 |
DALI | ||
| 101106.40.35.01.1 | 55W | 4000K | 35° | 4980 |
RAL9006 |
1-10V | ||
| 101106.40.35.01.0 | 55W | 4000K | 35° | 4980 |
RAL9006 |
ON/OFF | ||
| 101106.40.35.02.D | 55W | 4000K | 35° | 4980 |
RAL7016 |
DALI | ||
| 101106.40.35.02.1 | 55W | 4000K | 35° | 4980 |
RAL7016 |
1-10V | ||
| 101106.40.35.02.0 | 55W | 4000K | 35° | 4980 |
RAL7016 |
ON/OFF | ||
| 101106.40.35.03.D | 55W | 4000K | 35° | 4980 |
RAL9005 |
DALI | ||
