Projector for outdoor installation on a façade/wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium, tempered safety glass, moulded silicone gasket and stainless steel screws. With 1 direct 220-240V LUMENS “EDC 38C” COB LED. IP66 rating.

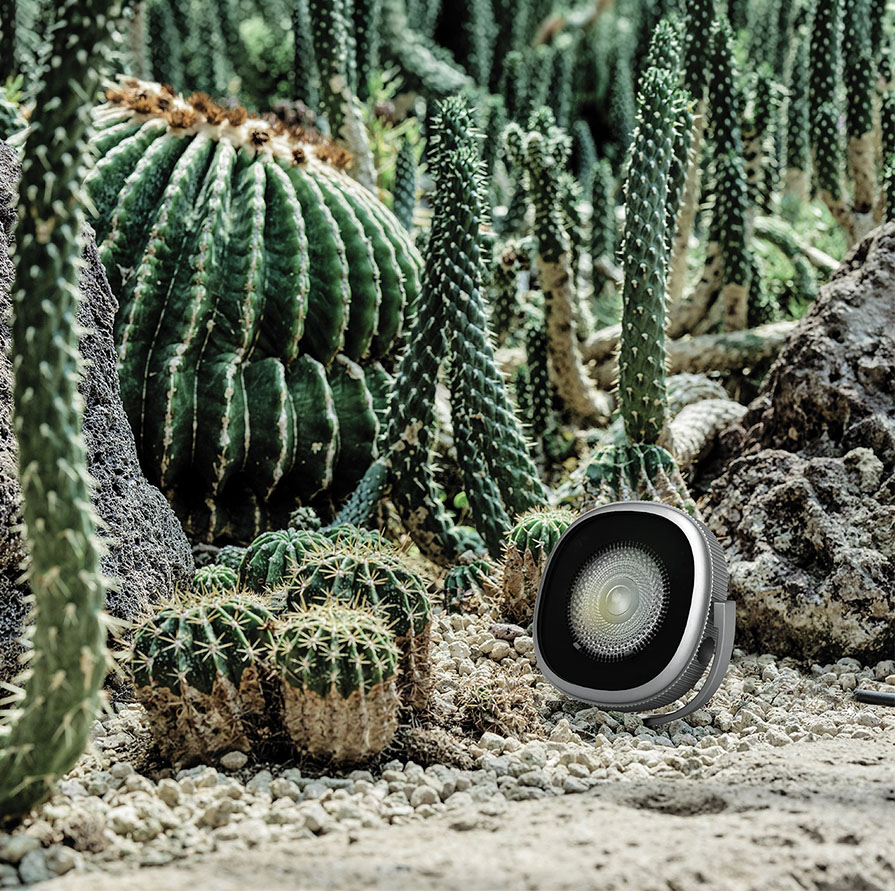

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102101.27.18.03.0 | 8W | 2700K | 18° | 380 |
RAL9005 |
ON/OFF | ||
| 102101.27.18.02.0 | 8W | 2700K | 18° | 380 |
RAL7016 |
ON/OFF | ||
| 102101.27.18.01.0 | 8W | 2700K | 18° | 380 |
RAL9006 |
ON/OFF | ||
| 102101.27.36.03.0 | 8W | 2700K | 36° | 371 |
RAL9005 |
ON/OFF | ||
| 102101.27.36.02.0 | 8W | 2700K | 36° | 371 |
RAL7016 |
ON/OFF | ||
| 102101.27.36.01.0 | 8W | 2700K | 36° | 371 |
RAL9006 |
ON/OFF | ||
| 102101.27.60.03.0 | 8W | 2700K | 60° | 356 |
RAL9005 |
ON/OFF | ||
| 102101.27.60.02.0 | 8W | 2700K | 60° | 356 |
RAL7016 |
ON/OFF | ||
| 102101.27.60.01.0 | 8W | 2700K | 60° | 356 |
RAL9006 |
ON/OFF | ||
| 102101.30.18.03.0 | 8W | 3000K | 18° | 400 |
RAL9005 |
ON/OFF | ||
| 102101.30.18.02.0 | 8W | 3000K | 18° | 400 |
RAL7016 |
ON/OFF | ||
| 102101.30.18.01.0 | 8W | 3000K | 18° | 400 |
RAL9006 |
ON/OFF | ||
| 102101.30.36.03.0 | 8W | 3000K | 36° | 390 |
RAL9005 |
ON/OFF | ||
| 102101.30.36.02.0 | 8W | 3000K | 36° | 390 |
RAL7016 |
ON/OFF | ||
| 102101.30.36.01.0 | 8W | 3000K | 36° | 390 |
RAL9006 |
ON/OFF | ||
| 102101.30.60.03.0 | 8W | 3000K | 60° | 375 |
RAL9005 |
ON/OFF | ||
| 102101.30.60.02.0 | 8W | 3000K | 60° | 375 |
RAL7016 |
ON/OFF | ||
| 102101.30.60.01.0 | 8W | 3000K | 60° | 375 |
RAL9006 |
ON/OFF | ||
| 102101.40.18.03.0 | 8W | 4000K | 18° | 410 |
RAL9005 |
ON/OFF | ||
| 102101.40.18.02.0 | 8W | 4000K | 18° | 410 |
RAL7016 |
ON/OFF | ||
| 102101.40.18.01.0 | 8W | 4000K | 18° | 410 |
RAL9006 |
ON/OFF | ||
| 102101.40.36.03.0 | 8W | 4000K | 36° | 400 |
RAL9005 |
ON/OFF | ||
| 102101.40.36.02.0 | 8W | 4000K | 36° | 400 |
RAL7016 |
ON/OFF | ||
| 102101.40.36.01.0 | 8W | 4000K | 36° | 400 |
RAL9006 |
ON/OFF | ||
| 102101.40.60.03.0 | 8W | 4000K | 60° | 385 |
RAL9005 |
ON/OFF | ||
| 102101.40.60.02.0 | 8W | 4000K | 60° | 385 |
RAL7016 |
ON/OFF | ||
| 102101.40.60.01.0 | 8W | 4000K | 60° | 385 |
RAL9006 |
ON/OFF | ||
