City Wall
12+12

101201

Round wall mounted luminaire for outdoor installation, with downward asymmetric light distribution. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws Built-in LED driver/s, with 24 CREE XP-G2 LED. IP66 rating.

Product Image
Product Image

Product IMAGE

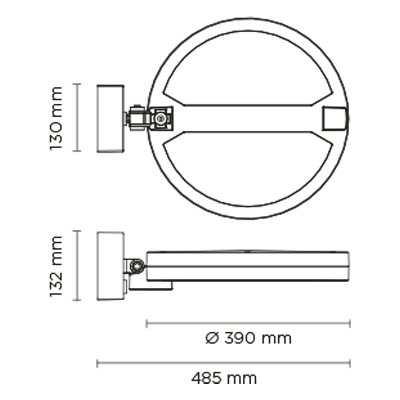

Technical Drawing

Technical drawing

101201
City Wall 12+12
view code and download
Technical features
  • DALI
  • 1-10V
  • ON/OFF
  • IP66
  • IK09
  • CE
  • 5 YEARS
  • Classe I (terra)
Product code watt light source Beam angle LUMENS finish Dimming
101201.30.ST.03.D 36W 3000K street 3456 finish-color RAL9005 DALI
101201.30.ST.03.1 36W 3000K street 3456 finish-color RAL9005 1-10V
101201.30.ST.03.0 36W 3000K street 3456 finish-color RAL9005 ON/OFF
101201.30.ST.02.1 36W 3000K street 3456 finish-color RAL7016 1-10V
101201.30.ST.02.0 36W 3000K street 3456 finish-color RAL7016 ON/OFF
101201.30.CP.03.D 36W 3000K cycle-route pedestrian 3456 finish-color RAL9005 DALI
101201.30.CP.03.1 36W 3000K cycle-route pedestrian 3456 finish-color RAL9005 1-10V
101201.30.CP.03.0 36W 3000K cycle-route pedestrian 3456 finish-color RAL9005 ON/OFF
101201.30.ST.01.D 36W 3000K street 3456 finish-color RAL9006 DALI
101201.30.ST.01.1 36W 3000K street 3456 finish-color RAL9006 1-10V
101201.30.ST.01.0 36W 3000K street 3456 finish-color RAL9006 ON/OFF
101201.30.ST.02.D 36W 3000K street 3456 finish-color RAL7016 DALI
101201.30.CP.01.D 36W 3000K cycle-route pedestrian 3456 finish-color RAL9006 DALI
101201.30.CP.01.1 36W 3000K cycle-route pedestrian 3456 finish-color RAL9006 1-10V
101201.30.CP.01.0 36W 3000K cycle-route pedestrian 3456 finish-color RAL9006 ON/OFF
101201.30.CP.02.D 36W 3000K cycle-route pedestrian 3456 finish-color RAL7016 DALI
101201.30.CP.02.1 36W 3000K cycle-route pedestrian 3456 finish-color RAL7016 1-10V
101201.30.CP.02.0 36W 3000K cycle-route pedestrian 3456 finish-color RAL7016 ON/OFF
