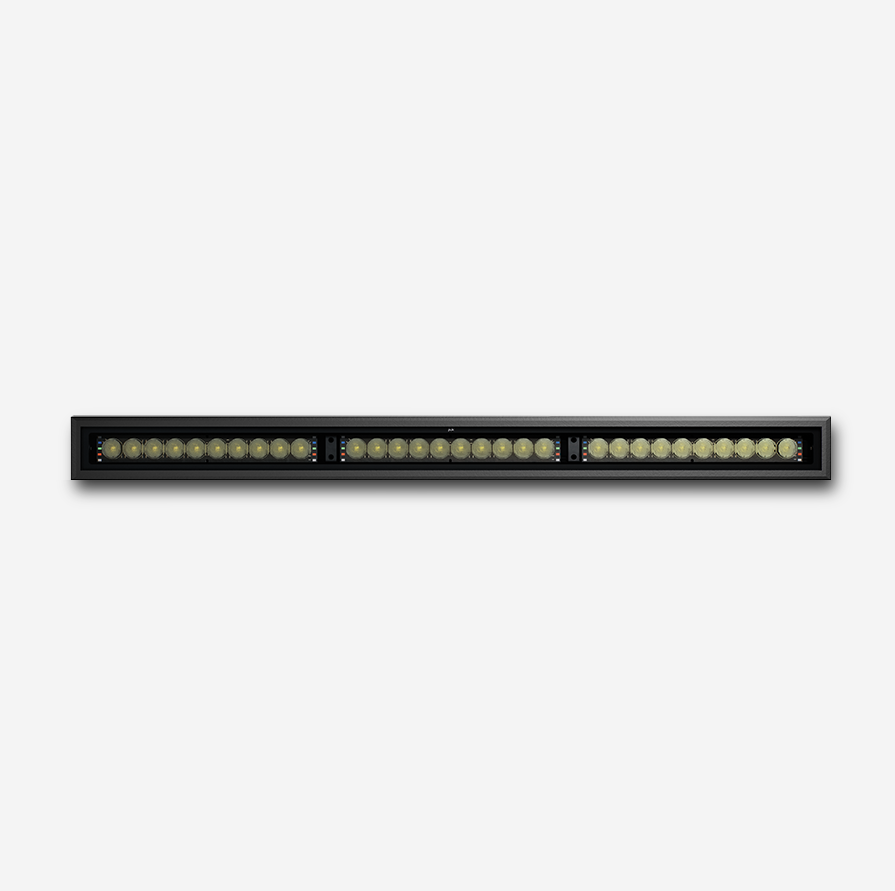

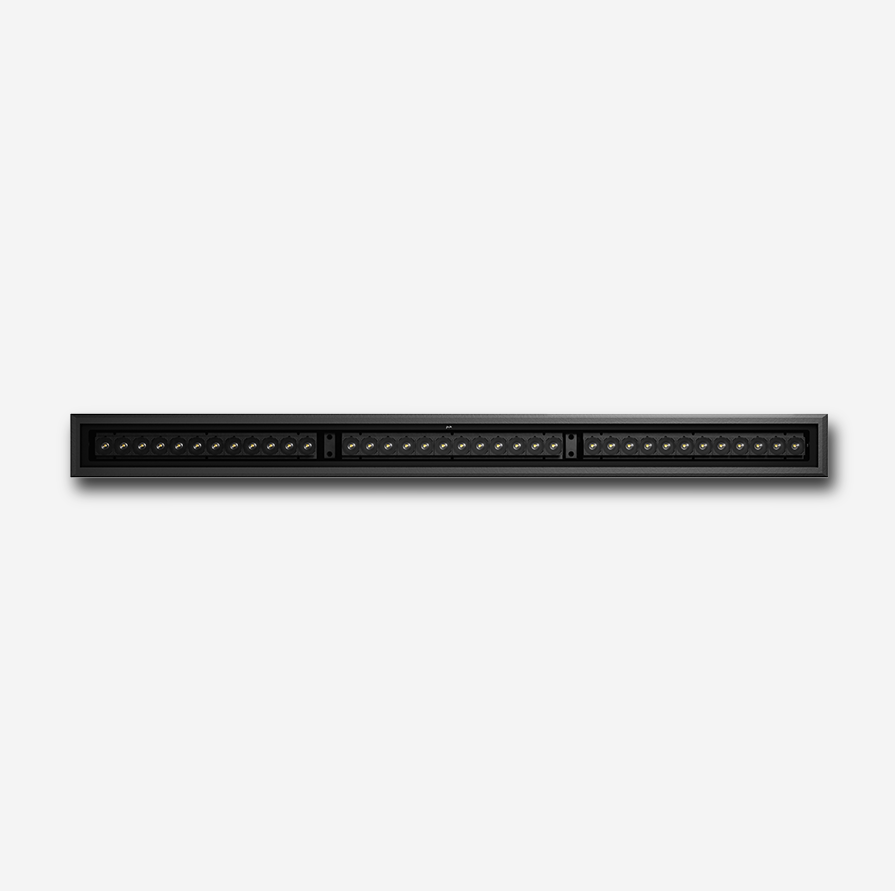

Linear shape ceiling-recessed luminaire for outdoor installation, length 900mm. As per base HP description with built-in driver. SAMSUNG 3030 HP LED. IP67 rating.
- Product
Menu Image
Linear shape ceiling-recessed luminaire for outdoor installation, length 900mm. As per base HP description with built-in driver. SAMSUNG 3030 HP LED. IP67 rating.
Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701509.27.WW.03.D | 36W | 2700K | wall washer | 2700 |
RAL9005 |
DALI | ||
| 701509.27.WW.03.0 | 36W | 2700K | wall washer | 2700 |
RAL9005 |
ON/OFF | ||
| 701509.27.15.03.D | 36W | 2700K | 15° | 2700 |
RAL9005 |
DALI | ||
| 701509.27.15.03.0 | 36W | 2700K | 15° | 2700 |
RAL9005 |
ON/OFF | ||
| 701509.27.35.03.0 | 36W | 2700K | 35° | 2610 |
RAL9005 |
ON/OFF | ||
| 701509.27.35.03.D | 36W | 2700K | 35° | 2610 |
RAL9005 |
DALI | ||
| 701509.27.55.03.0 | 36W | 2700K | 55° | 2520 |
RAL9005 |
ON/OFF | ||
| 701509.27.55.03.D | 36W | 2700K | 55° | 2520 |
RAL9005 |
DALI | ||
| 701509.30.WW.03.0 | 36W | 3000K | wall washer | 2790 |
RAL9005 |
ON/OFF | ||
| 701509.30.WW.03.D | 36W | 3000K | wall washer | 2790 |
RAL9005 |
DALI | ||
| 701509.30.15.03.0 | 36W | 3000K | 15° | 2790 |
RAL9005 |
ON/OFF | ||
| 701509.30.15.03.D | 36W | 3000K | 15° | 2790 |
RAL9005 |
DALI | ||
| 701509.30.35.03.D | 36W | 3000K | 35° | 2700 |
RAL9005 |
DALI | ||
| 701509.30.35.03.0 | 36W | 3000K | 35° | 2700 |
RAL9005 |
ON/OFF | ||
| 701509.30.55.03.0 | 36W | 3000K | 55° | 2610 |
RAL9005 |
ON/OFF | ||
| 701509.30.55.03.D | 36W | 3000K | 55° | 2610 |
RAL9005 |
DALI | ||
| 701509.40.WW.03.D | 36W | 4000K | wall washer | 2880 |
RAL9005 |
DALI | ||
| 701509.40.WW.03.0 | 36W | 4000K | wall washer | 2880 |
RAL9005 |
ON/OFF | ||
| 701509.40.15.03.D | 36W | 4000K | 15° | 2880 |
RAL9005 |
DALI | ||
| 701509.40.15.03.0 | 36W | 4000K | 15° | 2880 |
RAL9005 |
ON/OFF | ||
| 701509.40.35.03.0 | 36W | 4000K | 35° | 2790 |
RAL9005 |
ON/OFF | ||
| 701509.40.35.03.D | 36W | 4000K | 35° | 2790 |
RAL9005 |
DALI | ||
| 701509.40.55.03.D | 36W | 4000K | 55° | 2700 |
RAL9005 |
DALI | ||
| 701509.40.55.03.0 | 36W | 4000K | 55° | 2700 |
RAL9005 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|

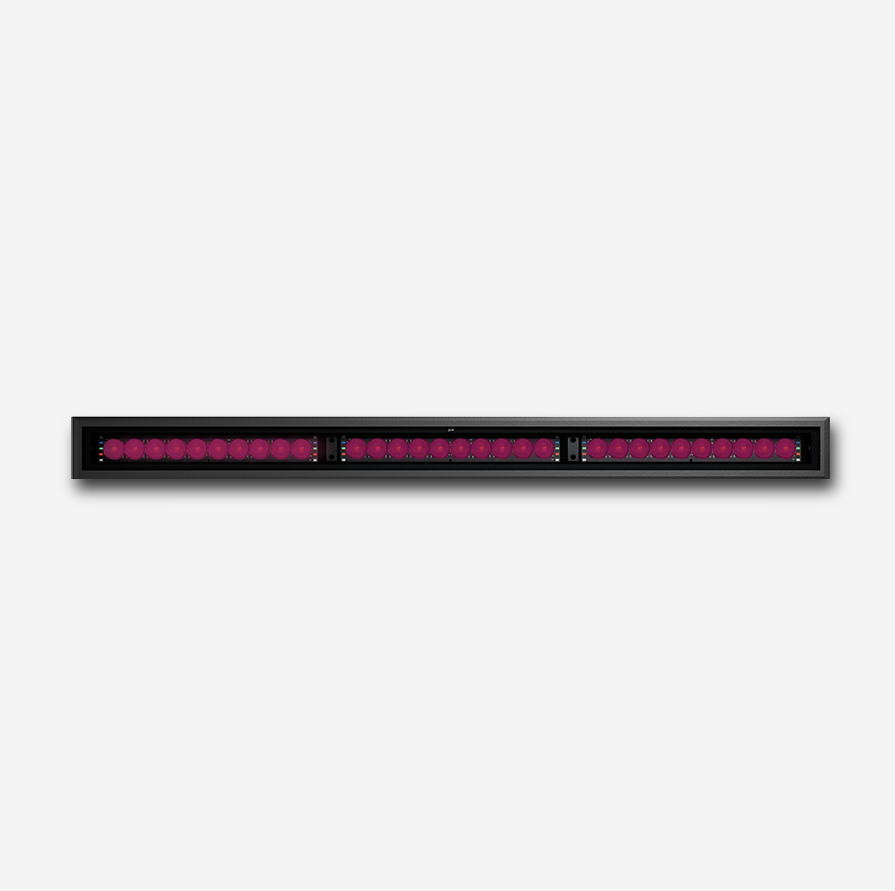

| 701510.RW.E6.03.X | 30W | RGBW | elliptical 10x60 | 1140 |
RAL9005 |
DMX | ||
| 701510.RW.E6.03.D | 30W | RGBW | elliptical 10x60 | 1140 |
RAL9005 |
DALI | ||
| 701510.RW.15.03.D | 30W | RGBW | 15° | 1140 |
RAL9005 |
DALI | ||
| 701510.RW.15.03.X | 30W | RGBW | 15° | 1140 |
RAL9005 |
DMX | ||
| 701510.RW.30.03.D | 30W | RGBW | 30° | 1095 |
RAL9005 |
DALI | ||
| 701510.RW.30.03.X | 30W | RGBW | 30° | 1095 |
RAL9005 |
DMX | ||
| 701510.RW.60.03.D | 30W | RGBW | 60° | 1005 |
RAL9005 |
DALI | ||
| 701510.RW.60.03.X | 30W | RGBW | 60° | 1005 |
RAL9005 |
DMX | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701511.TW.E6.03.X | 30W | Tunable white | elliptical 10x60 | 1950 |
RAL9005 |
DMX | ||
| 701511.TW.E6.03.D | 30W | Tunable white | elliptical 10x60 | 1950 |
RAL9005 |
DALI | ||
| 701511.TW.15.03.X | 30W | Tunable white | 15° | 1950 |
RAL9005 |
DMX | ||
| 701511.TW.15.03.D | 30W | Tunable white | 15° | 1950 |
RAL9005 |
DALI | ||
| 701511.TW.30.03.X | 30W | Tunable white | 30° | 1905 |
RAL9005 |
DMX | ||
| 701511.TW.30.03.D | 30W | Tunable white | 30° | 1905 |
RAL9005 |
DALI | ||
| 701511.TW.60.03.X | 30W | Tunable white | 60° | 1860 |
RAL9005 |
DMX | ||
| 701511.TW.60.03.D | 30W | Tunable white | 60° | 1860 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|

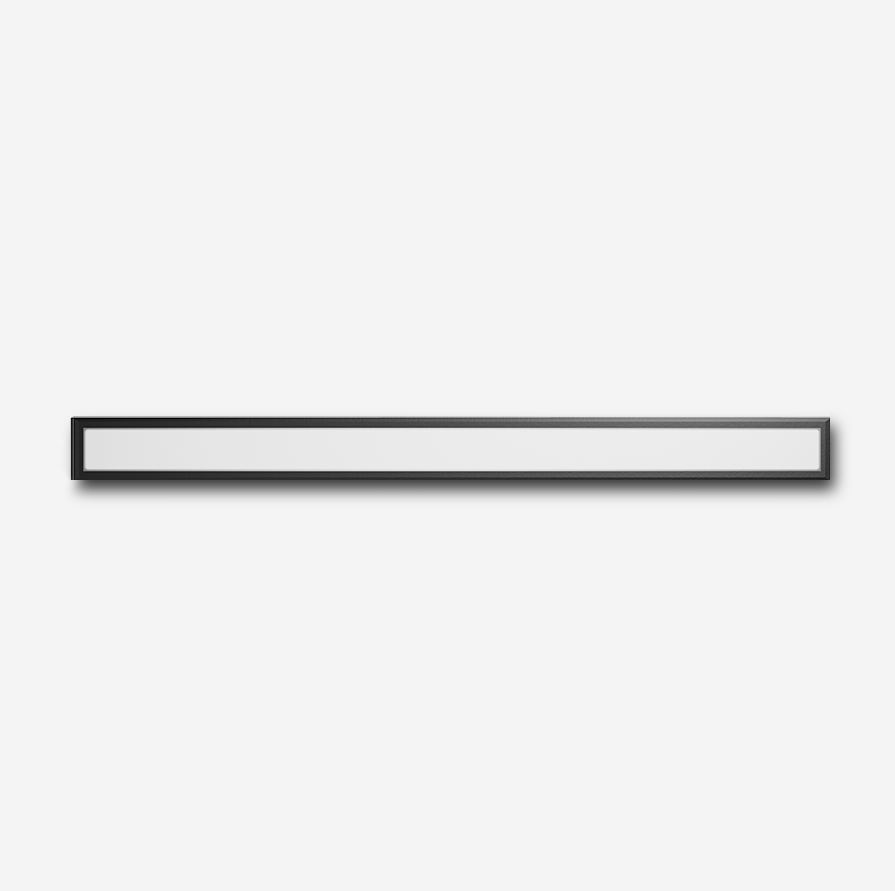

| 701512.27.DF.03.D | 17W | 2700K | diffused | 780 |
RAL9005 |
DALI | ||
| 701512.27.DF.03.0 | 17W | 2700K | diffused | 780 |
RAL9005 |
ON/OFF | ||
| 701512.30.DF.03.0 | 17W | 3000K | diffused | 800 |
RAL9005 |
ON/OFF | ||
| 701512.30.DF.03.D | 17W | 3000K | diffused | 800 |
RAL9005 |
DALI | ||
| 701512.40.DF.03.D | 17W | 4000K | diffused | 830 |
RAL9005 |
DALI | ||
| 701512.40.DF.03.0 | 17W | 4000K | diffused | 830 |
RAL9005 |
ON/OFF | ||
