Linear shape ceiling-recessed luminaire for outdoor installation, length 600mm. Made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, tempered safety glass, moulded silicone gaskets, stainless steel springs. Built-in LED driver 220-240V 50-60Hz (HP). SAMSUNG 3030 HP LED. IP67 rating.

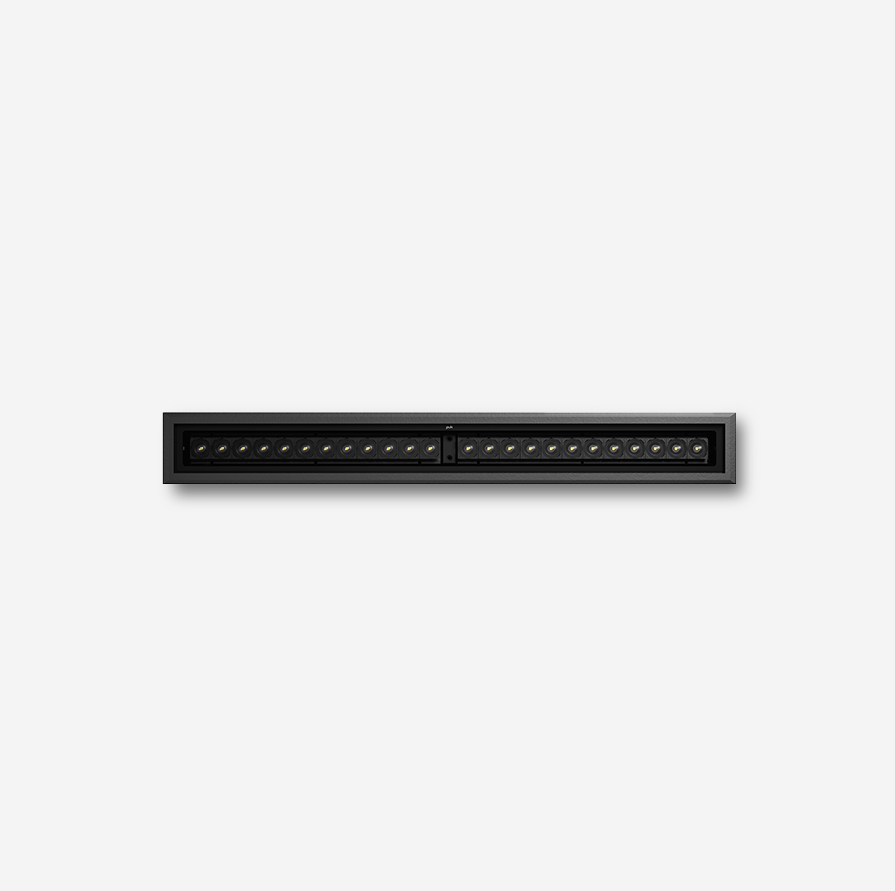

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701505.27.WW.03.D | 24W | 2700K | wall washer | 1800 |
RAL9005 |
DALI | ||
| 701505.27.WW.03.0 | 24W | 2700K | wall washer | 1800 |
RAL9005 |
ON/OFF | ||
| 701505.27.15.03.0 | 24W | 2700K | 15° | 1800 |
RAL9005 |
ON/OFF | ||
| 701505.27.15.03.D | 24W | 2700K | 15° | 1800 |
RAL9005 |
DALI | ||
| 701505.27.35.03.0 | 24W | 2700K | 35° | 1740 |
RAL9005 |
ON/OFF | ||
| 701505.27.35.03.D | 24W | 2700K | 35° | 1740 |
RAL9005 |
DALI | ||
| 701505.27.55.03.0 | 24W | 2700K | 55° | 1680 |
RAL9005 |
ON/OFF | ||
| 701505.27.55.03.D | 24W | 2700K | 55° | 1680 |
RAL9005 |
DALI | ||
| 701505.30.WW.03.0 | 24W | 3000K | wall washer | 1860 |
RAL9005 |
ON/OFF | ||
| 701505.30.WW.03.D | 24W | 3000K | wall washer | 1860 |
RAL9005 |
DALI | ||
| 701505.30.15.03.D | 24W | 3000K | 15° | 1860 |
RAL9005 |
DALI | ||
| 701505.30.15.03.0 | 24W | 3000K | 15° | 1860 |
RAL9005 |
ON/OFF | ||
| 701505.30.35.03.0 | 24W | 3000K | 35° | 1800 |
RAL9005 |
ON/OFF | ||
| 701505.30.35.03.D | 24W | 3000K | 35° | 1800 |
RAL9005 |
DALI | ||
| 701505.30.55.03.0 | 24W | 3000K | 55° | 1740 |
RAL9005 |
ON/OFF | ||
| 701505.30.55.03.D | 24W | 3000K | 55° | 1740 |
RAL9005 |
DALI | ||
| 701505.40.WW.03.0 | 24W | 4000K | wall washer | 1920 |
RAL9005 |
ON/OFF | ||
| 701505.40.WW.03.D | 24W | 4000K | wall washer | 1920 |
RAL9005 |
DALI | ||
| 701505.40.15.03.D | 24W | 4000K | 15° | 1920 |
RAL9005 |
DALI | ||
| 701505.40.15.03.0 | 24W | 4000K | 15° | 1920 |
RAL9005 |
ON/OFF | ||
| 701505.40.35.03.D | 24W | 4000K | 35° | 1860 |
RAL9005 |
DALI | ||
| 701505.40.35.03.0 | 24W | 4000K | 35° | 1860 |
RAL9005 |
ON/OFF | ||
| 701505.40.55.03.0 | 24W | 4000K | 55° | 1800 |
RAL9005 |
ON/OFF | ||
| 701505.40.55.03.D | 24W | 4000K | 55° | 1800 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701506.RW.E6.03.D | 20W | RGBW | elliptical 10x60 | 760 |
RAL9005 |
DALI | ||
| 701506.RW.E6.03.X | 20W | RGBW | elliptical 10x60 | 760 |
RAL9005 |
DMX | ||
| 701506.RW.15.03.D | 20W | RGBW | 15° | 760 |
RAL9005 |
DALI | ||
| 701506.RW.15.03.X | 20W | RGBW | 15° | 760 |
RAL9005 |
DMX | ||
| 701506.RW.30.03.X | 20W | RGBW | 30° | 730 |
RAL9005 |
DMX | ||
| 701506.RW.30.03.D | 20W | RGBW | 30° | 730 |
RAL9005 |
DALI | ||
| 701506.RW.60.03.D | 20W | RGBW | 60° | 670 |
RAL9005 |
DALI | ||
| 701506.RW.60.03.X | 20W | RGBW | 60° | 670 |
RAL9005 |
DMX | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701507.TW.E6.03.X | 20W | Tunable white | elliptical 10x60 | 1300 |
RAL9005 |
DMX | ||
| 701507.TW.E6.03.D | 20W | Tunable white | elliptical 10x60 | 1300 |
RAL9005 |
DALI | ||
| 701507.TW.15.03.D | 20W | Tunable white | 15° | 1300 |
RAL9005 |
DALI | ||
| 701507.TW.15.03.X | 20W | Tunable white | 15° | 1300 |
RAL9005 |
DMX | ||
| 701507.TW.30.03.X | 20W | Tunable white | 30° | 1270 |
RAL9005 |
DMX | ||
| 701507.TW.30.03.D | 20W | Tunable white | 30° | 1270 |
RAL9005 |
DALI | ||
| 701507.TW.60.03.D | 20W | Tunable white | 60° | 1240 |
RAL9005 |
DALI | ||
| 701507.TW.60.03.X | 20W | Tunable white | 60° | 1240 |
RAL9005 |
DMX | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701508.27.DF.03.0 | 12W | 2700K | diffused | 500 |
RAL9005 |
ON/OFF | ||
| 701508.27.DF.03.D | 12W | 2700K | diffused | 500 |
RAL9005 |
DALI | ||
| 701508.30.DF.03.0 | 12W | 3000K | diffused | 250 |
RAL9005 |
ON/OFF | ||
| 701508.30.DF.03.D | 12W | 3000K | diffused | 250 |
RAL9005 |
DALI | ||
| 701508.40.DF.03.0 | 12W | 4000K | diffused | 550 |
RAL9005 |
ON/OFF | ||
| 701508.40.DF.03.D | 12W | 4000K | diffused | 550 |
RAL9005 |
DALI | ||
