Linear shape ceiling-recessed luminaire for outdoor installation, length 1200mm. Base HP mechanical features; built-in LED driver 220-240V 50-60Hz. SAMSUNG 3030 HP LED. IP67 rating.
- Product
Menu Image
Linear shape ceiling-recessed luminaire for outdoor installation, length 1200mm. Base HP mechanical features; built-in LED driver 220-240V 50-60Hz. SAMSUNG 3030 HP LED. IP67 rating.

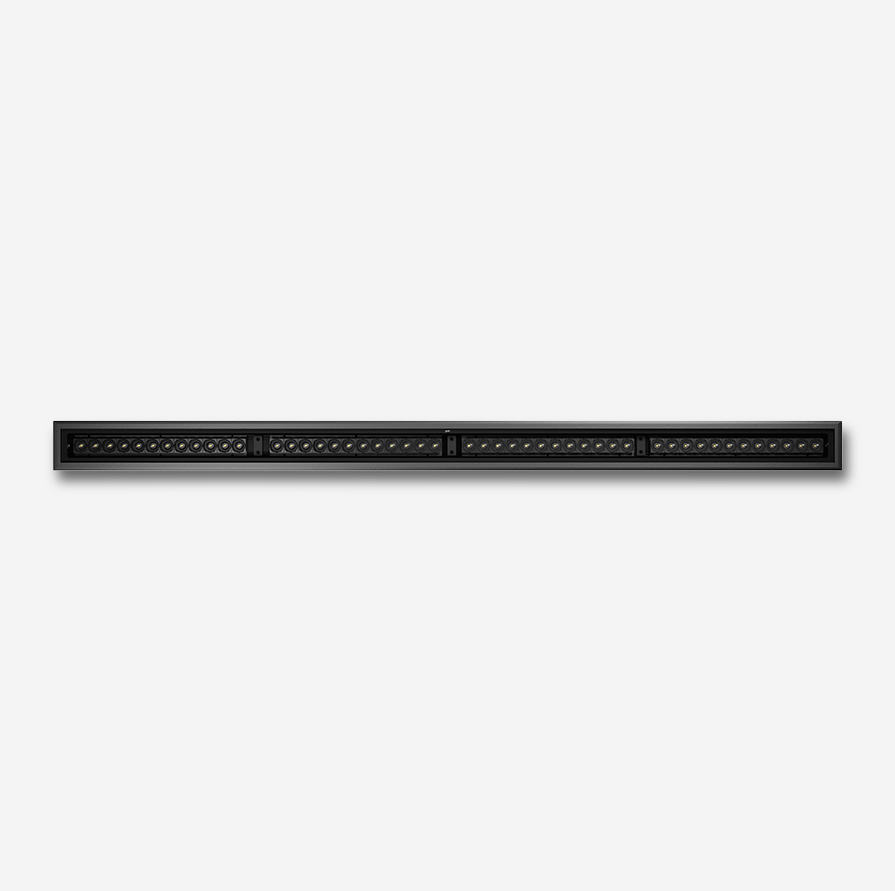

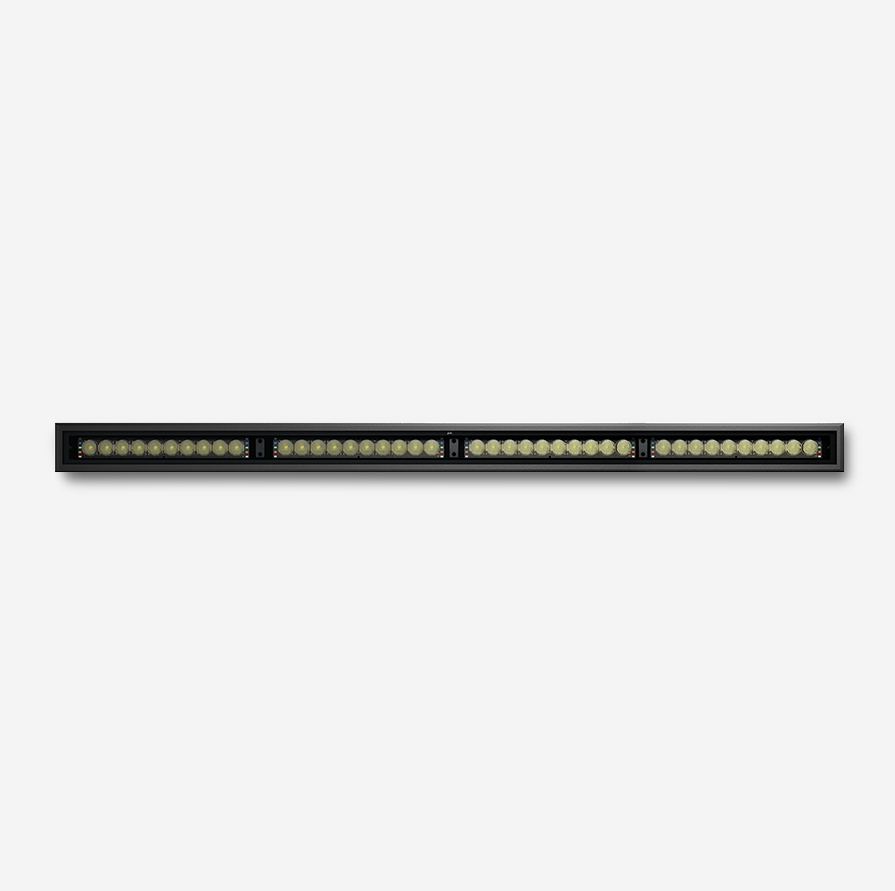

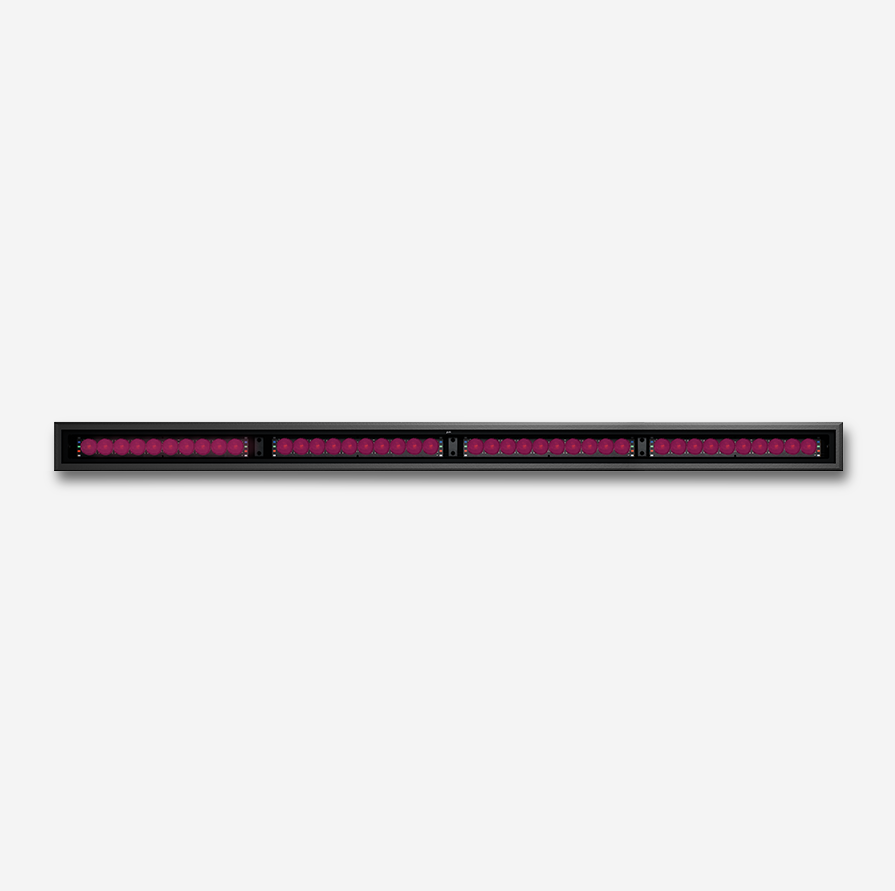

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701513.27.WW.03.D | 48W | 2700K | wall washer | 3600 |
RAL9005 |
DALI | ||
| 701513.27.WW.03.0 | 48W | 2700K | wall washer | 3600 |
RAL9005 |
ON/OFF | ||
| 701513.27.15.03.D | 48W | 2700K | 15° | 3600 |
RAL9005 |
DALI | ||
| 701513.27.15.03.0 | 48W | 2700K | 15° | 3600 |
RAL9005 |
ON/OFF | ||
| 701513.27.35.03.0 | 48W | 2700K | 35° | 3480 |
RAL9005 |
ON/OFF | ||
| 701513.27.35.03.D | 48W | 2700K | 35° | 3480 |
RAL9005 |
DALI | ||
| 701513.27.55.03.D | 48W | 2700K | 55° | 3360 |
RAL9005 |
DALI | ||
| 701513.27.55.03.0 | 48W | 2700K | 55° | 3360 |
RAL9005 |
ON/OFF | ||
| 701513.30.WW.03.D | 48W | 3000K | wall washer | 3720 |
RAL9005 |
DALI | ||
| 701513.30.WW.03.0 | 48W | 3000K | wall washer | 3720 |
RAL9005 |
ON/OFF | ||
| 701513.30.15.03.0 | 48W | 3000K | 15° | 3720 |
RAL9005 |
ON/OFF | ||
| 701513.30.15.03.D | 48W | 3000K | 15° | 3720 |
RAL9005 |
DALI | ||
| 701513.30.35.03.D | 48W | 3000K | 35° | 3600 |
RAL9005 |
DALI | ||
| 701513.30.35.03.0 | 48W | 3000K | 35° | 3600 |
RAL9005 |
ON/OFF | ||
| 701513.30.55.03.0 | 48W | 3000K | 55° | 3480 |
RAL9005 |
ON/OFF | ||
| 701513.30.55.03.D | 48W | 3000K | 55° | 3480 |
RAL9005 |
DALI | ||
| 701513.40.WW.03.0 | 48W | 4000K | wall washer | 3840 |
RAL9005 |
ON/OFF | ||
| 701513.40.WW.03.D | 48W | 4000K | wall washer | 3840 |
RAL9005 |
DALI | ||
| 701513.40.15.03.0 | 48W | 4000K | 15° | 3840 |
RAL9005 |
ON/OFF | ||
| 701513.40.15.03.D | 48W | 4000K | 15° | 3840 |
RAL9005 |
DALI | ||
| 701513.40.35.03.0 | 48W | 4000K | 35° | 3720 |
RAL9005 |
ON/OFF | ||
| 701513.40.35.03.D | 48W | 4000K | 35° | 3720 |
RAL9005 |
DALI | ||
| 701513.40.55.03.0 | 48W | 4000K | 55° | 3600 |
RAL9005 |
ON/OFF | ||
| 701513.40.55.03.D | 48W | 4000K | 55° | 3600 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701514.RW.E6.03.D | 40W | RGBW | elliptical 10x60 | 1520 |
RAL9005 |
DALI | ||
| 701514.RW.E6.03.X | 40W | RGBW | elliptical 10x60 | 1520 |
RAL9005 |
DMX | ||
| 701514.RW.15.03.X | 40W | RGBW | 15° | 1520 |
RAL9005 |
DMX | ||
| 701514.RW.15.03.D | 40W | RGBW | 15° | 1520 |
RAL9005 |
DALI | ||
| 701514.RW.30.03.D | 40W | RGBW | 30° | 1460 |
RAL9005 |
DALI | ||
| 701514.RW.30.03.X | 40W | RGBW | 30° | 1460 |
RAL9005 |
DMX | ||
| 701514.RW.60.03.D | 40W | RGBW | 60° | 1340 |
RAL9005 |
DALI | ||
| 701514.RW.60.03.X | 40W | RGBW | 60° | 1340 |
RAL9005 |
DMX | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701515.TW.E6.03.X | 40W | Tunable white | elliptical 10x60 | 2600 |
RAL9005 |
DMX | ||
| 701515.TW.E6.03.D | 40W | Tunable white | elliptical 10x60 | 2600 |
RAL9005 |
DALI | ||
| 701515.TW.15.03.X | 40W | Tunable white | 15° | 2600 |
RAL9005 |
DMX | ||
| 701515.TW.15.03.D | 40W | Tunable white | 15° | 2600 |
RAL9005 |
DALI | ||
| 701515.TW.30.03.D | 40W | Tunable white | 30° | 2540 |
RAL9005 |
DALI | ||
| 701515.TW.30.03.X | 40W | Tunable white | 30° | 2540 |
RAL9005 |
DMX | ||
| 701515.TW.60.03.X | 40W | Tunable white | 60° | 2480 |
RAL9005 |
DMX | ||
| 701515.TW.60.03.D | 40W | Tunable white | 60° | 2480 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701516.27.DF.03.D | 24W | 2700K | diffused | 1010 |
RAL9005 |
DALI | ||
| 701516.27.DF.03.0 | 24W | 2700K | diffused | 1010 |
RAL9005 |
ON/OFF | ||
| 701516.30.DF.03.0 | 24W | 3000K | diffused | 1050 |
RAL9005 |
ON/OFF | ||
| 701516.30.DF.03.D | 24W | 3000K | diffused | 1050 |
RAL9005 |
DALI | ||
| 701516.40.DF.03.D | 24W | 4000K | diffused | 1100 |
RAL9005 |
DALI | ||
| 701516.40.DF.03.0 | 24W | 4000K | diffused | 1100 |
RAL9005 |
ON/OFF | ||
