Surface mounted luminaire for outdoor ceiling installation. Phospho-chromatised and polyester powder coated extruded copper-free aluminium body, tempered safety glass, moulded silicone gaskets, with screws in stainless steel. Built-in LED driver, with 1 COB CREE “CXB 1304” LED. IP66 rating.

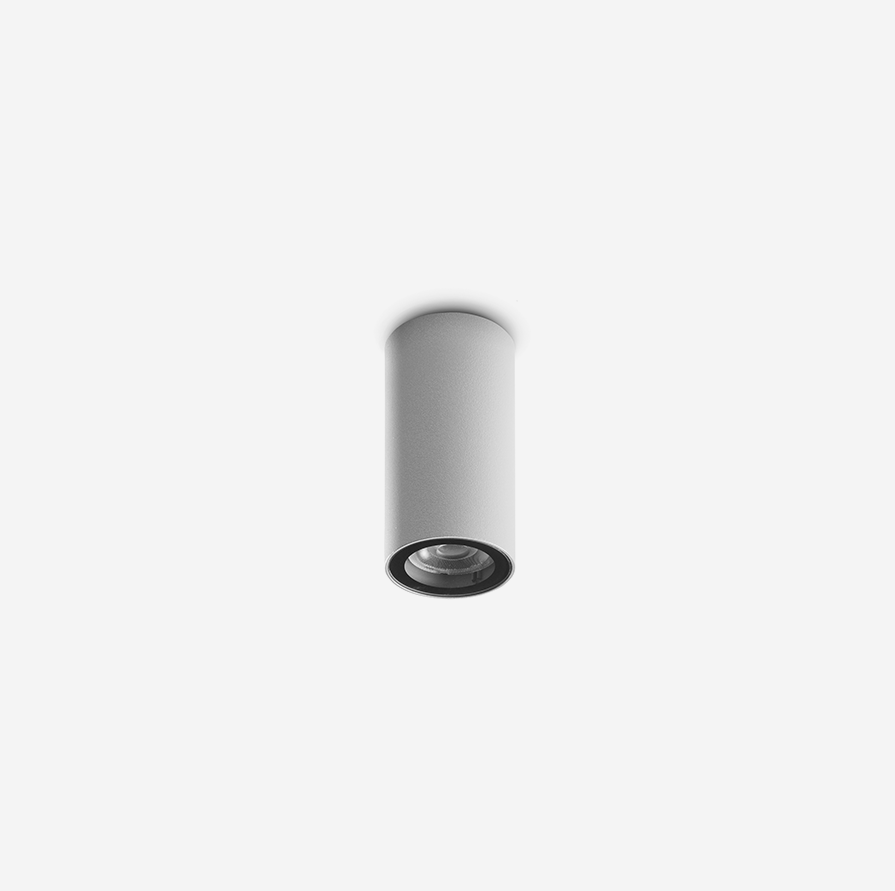

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701201.27.18.03.0 | 6W | 2700K | 18° | 589 |
RAL9005 |
ON/OFF | ||
| 701201.27.18.02.0 | 6W | 2700K | 18° | 589 |
RAL7016 |
ON/OFF | ||
| 701201.27.18.01.0 | 6W | 2700K | 18° | 589 |
RAL9006 |
ON/OFF | ||
| 701201.27.36.03.0 | 6W | 2700K | 36° | 570 |
RAL9005 |
ON/OFF | ||
| 701201.27.36.02.0 | 6W | 2700K | 36° | 570 |
RAL7016 |
ON/OFF | ||
| 701201.27.36.01.0 | 6W | 2700K | 36° | 570 |
RAL9006 |
ON/OFF | ||
| 701201.27.60.03.0 | 6W | 2700K | 60° | 551 |
RAL9005 |
ON/OFF | ||
| 701201.27.60.02.0 | 6W | 2700K | 60° | 551 |
RAL7016 |
ON/OFF | ||
| 701201.27.60.01.0 | 6W | 2700K | 60° | 551 |
RAL9006 |
ON/OFF | ||
| 701201.30.18.03.0 | 6W | 3000K | 18° | 620 |
RAL9005 |
ON/OFF | ||
| 701201.30.18.02.0 | 6W | 3000K | 18° | 620 |
RAL7016 |
ON/OFF | ||
| 701201.30.18.01.0 | 6W | 3000K | 18° | 620 |
RAL9006 |
ON/OFF | ||
| 701201.30.36.03.0 | 6W | 3000K | 36° | 600 |
RAL9005 |
ON/OFF | ||
| 701201.30.36.02.0 | 6W | 3000K | 36° | 600 |
RAL7016 |
ON/OFF | ||
| 701201.30.36.01.0 | 6W | 3000K | 36° | 600 |
RAL9006 |
ON/OFF | ||
| 701201.30.60.03.0 | 6W | 3000K | 60° | 580 |
RAL9005 |
ON/OFF | ||
| 701201.30.60.02.0 | 6W | 3000K | 60° | 580 |
RAL7016 |
ON/OFF | ||
| 701201.30.60.01.0 | 6W | 3000K | 60° | 580 |
RAL9006 |
ON/OFF | ||
| 701201.40.18.03.0 | 6W | 4000K | 18° | 640 |
RAL9005 |
ON/OFF | ||
| 701201.40.18.02.0 | 6W | 4000K | 18° | 640 |
RAL7016 |
ON/OFF | ||
| 701201.40.18.01.0 | 6W | 4000K | 18° | 640 |
RAL9006 |
ON/OFF | ||
| 701201.40.36.03.0 | 6W | 4000K | 36° | 620 |
RAL9005 |
ON/OFF | ||
| 701201.40.36.02.0 | 6W | 4000K | 36° | 620 |
RAL7016 |
ON/OFF | ||
| 701201.40.36.01.0 | 6W | 4000K | 36° | 620 |
RAL9006 |
ON/OFF | ||
| 701201.40.60.03.0 | 6W | 4000K | 60° | 600 |
RAL9005 |
ON/OFF | ||
| 701201.40.60.02.0 | 6W | 4000K | 60° | 600 |
RAL7016 |
ON/OFF | ||
| 701201.40.60.01.0 | 6W | 4000K | 60° | 600 |
RAL9006 |
ON/OFF | ||
