Surface mounted luminaire for outdoor ceiling installation. Phospho-chromatised and polyester powder coated extruded copper-free aluminium body, tempered safety glass, moulded silicone gaskets, with screws in stainless steel. Built-in LED driver, with 1 COB CREE “CXB 2540” LED. IP66 rating.

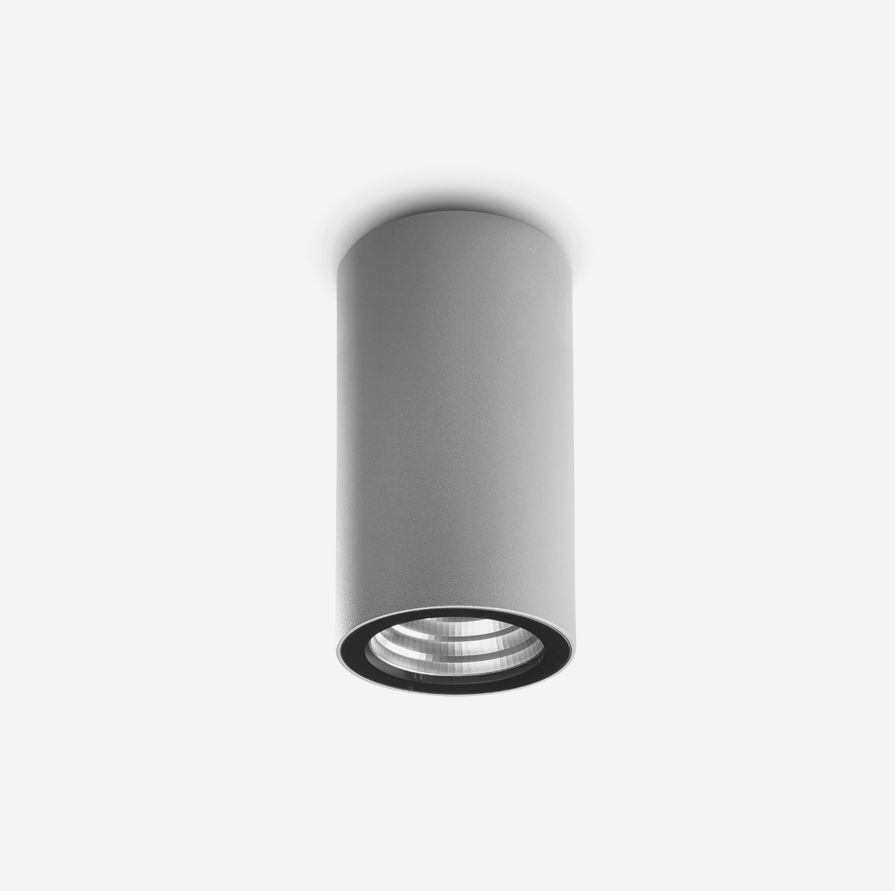

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701204.27.14.03.0 | 42W | 2700K | 14° | 4703 |
RAL9005 |
ON/OFF | ||
| 701204.27.14.03.1 | 42W | 2700K | 14° | 4703 |
RAL9005 |
1-10V | ||
| 701204.27.14.03.D | 42W | 2700K | 14° | 4703 |
RAL9005 |
DALI | ||
| 701204.27.14.02.0 | 42W | 2700K | 14° | 4703 |
RAL7016 |
ON/OFF | ||
| 701204.27.14.02.1 | 42W | 2700K | 14° | 4703 |
RAL7016 |
1-10V | ||
| 701204.27.14.02.D | 42W | 2700K | 14° | 4703 |
RAL7016 |
DALI | ||
| 701204.27.14.01.0 | 42W | 2700K | 14° | 4703 |
RAL9006 |
ON/OFF | ||
| 701204.27.14.01.1 | 42W | 2700K | 14° | 4703 |
RAL9006 |
1-10V | ||
| 701204.27.14.01.D | 42W | 2700K | 14° | 4703 |
RAL9006 |
DALI | ||
| 701204.27.35.03.0 | 42W | 2700K | 35° | 4514 |
RAL9005 |
ON/OFF | ||
| 701204.27.35.03.1 | 42W | 2700K | 35° | 4514 |
RAL9005 |
1-10V | ||
| 701204.27.35.03.D | 42W | 2700K | 35° | 4514 |
RAL9005 |
DALI | ||
| 701204.27.35.02.0 | 42W | 2700K | 35° | 4514 |
RAL7016 |
ON/OFF | ||
| 701204.27.35.02.1 | 42W | 2700K | 35° | 4514 |
RAL7016 |
1-10V | ||
| 701204.27.35.02.D | 42W | 2700K | 35° | 4514 |
RAL7016 |
DALI | ||
| 701204.27.35.01.0 | 42W | 2700K | 35° | 4514 |
RAL9006 |
ON/OFF | ||
| 701204.27.35.01.1 | 42W | 2700K | 35° | 4514 |
RAL9006 |
1-10V | ||
| 701204.27.35.01.D | 42W | 2700K | 35° | 4514 |
RAL9006 |
DALI | ||
| 701204.27.55.03.0 | 42W | 2700K | 55° | 4332 |
RAL9005 |
ON/OFF | ||
| 701204.27.55.03.1 | 42W | 2700K | 55° | 4332 |
RAL9005 |
1-10V | ||
| 701204.27.55.03.D | 42W | 2700K | 55° | 4332 |
RAL9005 |
DALI | ||
| 701204.27.55.02.0 | 42W | 2700K | 55° | 4332 |
RAL7016 |
ON/OFF | ||
| 701204.27.55.02.1 | 42W | 2700K | 55° | 4332 |
RAL7016 |
1-10V | ||
| 701204.27.55.02.D | 42W | 2700K | 55° | 4332 |
RAL7016 |
DALI | ||
| 701204.27.55.01.0 | 42W | 2700K | 55° | 4332 |
RAL9006 |
ON/OFF | ||
| 701204.27.55.01.1 | 42W | 2700K | 55° | 4332 |
RAL9006 |
1-10V | ||
| 701204.27.55.01.D | 42W | 2700K | 55° | 4332 |
RAL9006 |
DALI | ||
| 701204.30.14.03.0 | 42W | 3000K | 14° | 4950 |
RAL9005 |
ON/OFF | ||
| 701204.30.14.03.1 | 42W | 3000K | 14° | 4950 |
RAL9005 |
1-10V | ||
| 701204.30.14.03.D | 42W | 3000K | 14° | 4950 |
RAL9005 |
DALI | ||
| 701204.30.14.02.0 | 42W | 3000K | 14° | 4950 |
RAL7016 |
ON/OFF | ||
| 701204.30.14.02.1 | 42W | 3000K | 14° | 4950 |
RAL7016 |
1-10V | ||
| 701204.30.14.02.D | 42W | 3000K | 14° | 4950 |
RAL7016 |
DALI | ||
| 701204.30.14.01.0 | 42W | 3000K | 14° | 4950 |
RAL9006 |
ON/OFF | ||
| 701204.30.14.01.1 | 42W | 3000K | 14° | 4950 |
RAL9006 |
1-10V | ||
| 701204.30.14.01.D | 42W | 3000K | 14° | 4950 |
RAL9006 |
DALI | ||
| 701204.30.35.03.0 | 42W | 3000K | 35° | 4752 |
RAL9005 |
ON/OFF | ||
| 701204.30.35.03.1 | 42W | 3000K | 35° | 4752 |
RAL9005 |
1-10V | ||
| 701204.30.35.03.D | 42W | 3000K | 35° | 4752 |
RAL9005 |
DALI | ||
| 701204.30.35.02.0 | 42W | 3000K | 35° | 4752 |
RAL7016 |
ON/OFF | ||
| 701204.30.35.02.1 | 42W | 3000K | 35° | 4752 |
RAL7016 |
1-10V | ||
| 701204.30.35.02.D | 42W | 3000K | 35° | 4752 |
RAL7016 |
DALI | ||
| 701204.30.35.01.0 | 42W | 3000K | 35° | 4752 |
RAL9006 |
ON/OFF | ||
| 701204.30.35.01.1 | 42W | 3000K | 35° | 4752 |
RAL9006 |
1-10V | ||
| 701204.30.35.01.D | 42W | 3000K | 35° | 4752 |
RAL9006 |
DALI | ||
| 701204.30.55.03.0 | 42W | 3000K | 55° | 4560 |
RAL9005 |
ON/OFF | ||
| 701204.30.55.03.1 | 42W | 3000K | 55° | 4560 |
RAL9005 |
1-10V | ||
| 701204.30.55.03.D | 42W | 3000K | 55° | 4560 |
RAL9005 |
DALI | ||
| 701204.30.55.02.0 | 42W | 3000K | 55° | 4560 |
RAL7016 |
ON/OFF | ||
| 701204.30.55.02.1 | 42W | 3000K | 55° | 4560 |
RAL7016 |
1-10V | ||
| 701204.30.55.02.D | 42W | 3000K | 55° | 4560 |
RAL7016 |
DALI | ||
| 701204.30.55.01.0 | 42W | 3000K | 55° | 4560 |
RAL9006 |
ON/OFF | ||
| 701204.30.55.01.1 | 42W | 3000K | 55° | 4560 |
RAL9006 |
1-10V | ||
| 701204.30.55.01.D | 42W | 3000K | 55° | 4560 |
RAL9006 |
DALI | ||
| 701204.40.14.03.0 | 42W | 4000K | 14° | 5265 |
RAL9005 |
ON/OFF | ||
| 701204.40.14.03.1 | 42W | 4000K | 14° | 5265 |
RAL9005 |
1-10V | ||
| 701204.40.14.03.D | 42W | 4000K | 14° | 5265 |
RAL9005 |
DALI | ||
| 701204.40.14.02.0 | 42W | 4000K | 14° | 5265 |
RAL7016 |
ON/OFF | ||
| 701204.40.14.02.1 | 42W | 4000K | 14° | 5265 |
RAL7016 |
1-10V | ||
| 701204.40.14.02.D | 42W | 4000K | 14° | 5265 |
RAL7016 |
DALI | ||
| 701204.40.14.01.0 | 42W | 4000K | 14° | 5265 |
RAL9006 |
ON/OFF | ||
| 701204.40.14.01.1 | 42W | 4000K | 14° | 5265 |
RAL9006 |
1-10V | ||
| 701204.40.14.01.D | 42W | 4000K | 14° | 5265 |
RAL9006 |
DALI | ||
| 701204.40.35.03.0 | 42W | 4000K | 35° | 5000 |
RAL9005 |
ON/OFF | ||
| 701204.40.35.03.1 | 42W | 4000K | 35° | 5000 |
RAL9005 |
1-10V | ||
| 701204.40.35.03.D | 42W | 4000K | 35° | 5000 |
RAL9005 |
DALI | ||
| 701204.40.35.02.0 | 42W | 4000K | 35° | 5000 |
RAL7016 |
ON/OFF | ||
| 701204.40.35.02.1 | 42W | 4000K | 35° | 5000 |
RAL7016 |
1-10V | ||
| 701204.40.35.02.D | 42W | 4000K | 35° | 5000 |
RAL7016 |
DALI | ||
| 701204.40.35.01.0 | 42W | 4000K | 35° | 5000 |
RAL9006 |
ON/OFF | ||
| 701204.40.35.01.1 | 42W | 4000K | 35° | 5000 |
RAL9006 |
1-10V | ||
| 701204.40.35.01.D | 42W | 4000K | 35° | 5000 |
RAL9006 |
DALI | ||
| 701204.40.55.03.0 | 42W | 4000K | 55° | 4770 |
RAL9005 |
ON/OFF | ||
| 701204.40.55.03.1 | 42W | 4000K | 55° | 4770 |
RAL9005 |
1-10V | ||
| 701204.40.55.03.D | 42W | 4000K | 55° | 4770 |
RAL9005 |
DALI | ||
| 701204.40.55.02.0 | 42W | 4000K | 55° | 4770 |
RAL7016 |
ON/OFF | ||
| 701204.40.55.02.1 | 42W | 4000K | 55° | 4770 |
RAL7016 |
1-10V | ||
| 701204.40.55.02.D | 42W | 4000K | 55° | 4770 |
RAL7016 |
DALI | ||
| 701204.40.55.01.0 | 42W | 4000K | 55° | 4770 |
RAL9006 |
ON/OFF | ||
| 701204.40.55.01.1 | 42W | 4000K | 55° | 4770 |
RAL9006 |
1-10V | ||
| 701204.40.55.01.D | 42W | 4000K | 55° | 4770 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701207.27.04.03.0 | 38W | 2700K | 4° | 4085 |
RAL9005 |
ON/OFF | ||
| 701207.27.04.03.1 | 38W | 2700K | 4° | 4085 |
RAL9005 |
1-10V | ||
| 701207.27.04.03.D | 38W | 2700K | 4° | 4085 |
RAL9005 |
DALI | ||
| 701207.27.04.02.0 | 38W | 2700K | 4° | 4085 |
RAL7016 |
ON/OFF | ||
| 701207.27.04.02.1 | 38W | 2700K | 4° | 4085 |
RAL7016 |
1-10V | ||
| 701207.27.04.02.D | 38W | 2700K | 4° | 4085 |
RAL7016 |
DALI | ||
| 701207.27.04.01.0 | 38W | 2700K | 4° | 4085 |
RAL9006 |
ON/OFF | ||
| 701207.27.04.01.1 | 38W | 2700K | 4° | 4085 |
RAL9006 |
1-10V | ||
| 701207.27.04.01.D | 38W | 2700K | 4° | 4085 |
RAL9006 |
DALI | ||
| 701207.27.10.03.0 | 38W | 2700K | 10° | 4047 |
RAL9005 |
ON/OFF | ||
| 701207.27.10.03.1 | 38W | 2700K | 10° | 4047 |
RAL9005 |
1-10V | ||
| 701207.27.10.03.D | 38W | 2700K | 10° | 4047 |
RAL9005 |
DALI | ||
| 701207.27.10.02.0 | 38W | 2700K | 10° | 4047 |
RAL7016 |
ON/OFF | ||
| 701207.27.10.02.1 | 38W | 2700K | 10° | 4047 |
RAL7016 |
1-10V | ||
| 701207.27.10.02.D | 38W | 2700K | 10° | 4047 |
RAL7016 |
DALI | ||
| 701207.27.10.01.0 | 38W | 2700K | 10° | 4047 |
RAL9006 |
ON/OFF | ||
| 701207.27.10.01.1 | 38W | 2700K | 10° | 4047 |
RAL9006 |
1-10V | ||
| 701207.27.10.01.D | 38W | 2700K | 10° | 4047 |
RAL9006 |
DALI | ||
| 701207.27.28.03.0 | 38W | 2700K | 28° | 4000 |
RAL9005 |
ON/OFF | ||
| 701207.27.28.03.1 | 38W | 2700K | 28° | 4000 |
RAL9005 |
1-10V | ||
| 701207.27.28.03.D | 38W | 2700K | 28° | 4000 |
RAL9005 |
DALI | ||
| 701207.27.28.02.0 | 38W | 2700K | 28° | 4000 |
RAL7016 |
ON/OFF | ||
| 701207.27.28.02.1 | 38W | 2700K | 28° | 4000 |
RAL7016 |
1-10V | ||
| 701207.27.28.02.D | 38W | 2700K | 28° | 4000 |
RAL7016 |
DALI | ||
| 701207.27.28.01.0 | 38W | 2700K | 28° | 4000 |
RAL9006 |
ON/OFF | ||
| 701207.27.28.01.1 | 38W | 2700K | 28° | 4000 |
RAL9006 |
1-10V | ||
| 701207.27.28.01.D | 38W | 2700K | 28° | 4000 |
RAL9006 |
DALI | ||
| 701207.27.55.03.0 | 38W | 2700K | 55° | 3400 |
RAL9005 |
ON/OFF | ||
| 701207.27.55.03.1 | 38W | 2700K | 55° | 3400 |
RAL9005 |
1-10V | ||
| 701207.27.55.03.D | 38W | 2700K | 55° | 3400 |
RAL9005 |
DALI | ||
| 701207.27.55.02.0 | 38W | 2700K | 55° | 3400 |
RAL7016 |
ON/OFF | ||
| 701207.27.55.02.1 | 38W | 2700K | 55° | 3400 |
RAL7016 |
1-10V | ||
| 701207.27.55.02.D | 38W | 2700K | 55° | 3400 |
RAL7016 |
DALI | ||
| 701207.27.55.01.0 | 38W | 2700K | 55° | 3400 |
RAL9006 |
ON/OFF | ||
| 701207.27.55.01.1 | 38W | 2700K | 55° | 3400 |
RAL9006 |
1-10V | ||
| 701207.27.55.01.D | 38W | 2700K | 55° | 3400 |
RAL9006 |
DALI | ||
| 701207.30.04.03.0 | 38W | 3000K | 4° | 4300 |
RAL9005 |
ON/OFF | ||
| 701207.30.04.03.1 | 38W | 3000K | 4° | 4300 |
RAL9005 |
1-10V | ||
| 701207.30.04.03.D | 38W | 3000K | 4° | 4300 |
RAL9005 |
DALI | ||
| 701207.30.04.02.0 | 38W | 3000K | 4° | 4300 |
RAL7016 |
ON/OFF | ||
| 701207.30.04.02.1 | 38W | 3000K | 4° | 4300 |
RAL7016 |
1-10V | ||
| 701207.30.04.02.D | 38W | 3000K | 4° | 4300 |
RAL7016 |
DALI | ||
| 701207.30.04.01.0 | 38W | 3000K | 4° | 4300 |
RAL9006 |
ON/OFF | ||
| 701207.30.04.01.1 | 38W | 3000K | 4° | 4300 |
RAL9006 |
1-10V | ||
| 701207.30.04.01.D | 38W | 3000K | 4° | 4300 |
RAL9006 |
DALI | ||
| 701207.30.10.03.0 | 38W | 3000K | 10° | 4260 |
RAL9005 |
ON/OFF | ||
| 701207.30.10.03.1 | 38W | 3000K | 10° | 4260 |
RAL9005 |
1-10V | ||
| 701207.30.10.03.D | 38W | 3000K | 10° | 4260 |
RAL9005 |
DALI | ||
| 701207.30.10.02.0 | 38W | 3000K | 10° | 4260 |
RAL7016 |
ON/OFF | ||
| 701207.30.10.02.1 | 38W | 3000K | 10° | 4260 |
RAL7016 |
1-10V | ||
| 701207.30.10.02.D | 38W | 3000K | 10° | 4260 |
RAL7016 |
DALI | ||
| 701207.30.10.01.0 | 38W | 3000K | 10° | 4260 |
RAL9006 |
ON/OFF | ||
| 701207.30.10.01.1 | 38W | 3000K | 10° | 4260 |
RAL9006 |
1-10V | ||
| 701207.30.10.01.D | 38W | 3000K | 10° | 4260 |
RAL9006 |
DALI | ||
| 701207.30.28.03.0 | 38W | 3000K | 28° | 4210 |
RAL9005 |
ON/OFF | ||
| 701207.30.28.03.1 | 38W | 3000K | 28° | 4210 |
RAL9005 |
1-10V | ||
| 701207.30.28.03.D | 38W | 3000K | 28° | 4210 |
RAL9005 |
DALI | ||
| 701207.30.28.02.0 | 38W | 3000K | 28° | 4210 |
RAL7016 |
ON/OFF | ||
| 701207.30.28.02.1 | 38W | 3000K | 28° | 4210 |
RAL7016 |
1-10V | ||
| 701207.30.28.02.D | 38W | 3000K | 28° | 4210 |
RAL7016 |
DALI | ||
| 701207.30.28.01.0 | 38W | 3000K | 28° | 4210 |
RAL9006 |
ON/OFF | ||
| 701207.30.28.01.1 | 38W | 3000K | 28° | 4210 |
RAL9006 |
1-10V | ||
| 701207.30.28.01.D | 38W | 3000K | 28° | 4210 |
RAL9006 |
DALI | ||
| 701207.30.55.03.0 | 38W | 3000K | 55° | 3579 |
RAL9005 |
ON/OFF | ||
| 701207.30.55.03.1 | 38W | 3000K | 55° | 3579 |
RAL9005 |
1-10V | ||
| 701207.30.55.03.D | 38W | 3000K | 55° | 3579 |
RAL9005 |
DALI | ||
| 701207.30.55.02.0 | 38W | 3000K | 55° | 3579 |
RAL7016 |
ON/OFF | ||
| 701207.30.55.02.1 | 38W | 3000K | 55° | 3579 |
RAL7016 |
1-10V | ||
| 701207.30.55.02.D | 38W | 3000K | 55° | 3579 |
RAL7016 |
DALI | ||
| 701207.30.55.01.0 | 38W | 3000K | 55° | 3579 |
RAL9006 |
ON/OFF | ||
| 701207.30.55.01.1 | 38W | 3000K | 55° | 3579 |
RAL9006 |
1-10V | ||
| 701207.30.55.01.D | 38W | 3000K | 55° | 3579 |
RAL9006 |
DALI | ||
| 701207.40.04.03.0 | 38W | 4000K | 4° | 4400 |
RAL9005 |
ON/OFF | ||
| 701207.40.04.03.1 | 38W | 4000K | 4° | 4400 |
RAL9005 |
1-10V | ||
| 701207.40.04.03.D | 38W | 4000K | 4° | 4400 |
RAL9005 |
DALI | ||
| 701207.40.04.02.0 | 38W | 4000K | 4° | 4400 |
RAL7016 |
ON/OFF | ||
| 701207.40.04.02.1 | 38W | 4000K | 4° | 4400 |
RAL7016 |
1-10V | ||
| 701207.40.04.02.D | 38W | 4000K | 4° | 4400 |
RAL7016 |
DALI | ||
| 701207.40.04.01.0 | 38W | 4000K | 4° | 4400 |
RAL9006 |
ON/OFF | ||
| 701207.40.04.01.1 | 38W | 4000K | 4° | 4400 |
RAL9006 |
1-10V | ||
| 701207.40.04.01.D | 38W | 4000K | 4° | 4400 |
RAL9006 |
DALI | ||
| 701207.40.10.03.0 | 38W | 4000K | 10° | 4360 |
RAL9005 |
ON/OFF | ||
| 701207.40.10.03.1 | 38W | 4000K | 10° | 4360 |
RAL9005 |
1-10V | ||
| 701207.40.10.03.D | 38W | 4000K | 10° | 4360 |
RAL9005 |
DALI | ||
| 701207.40.10.02.0 | 38W | 4000K | 10° | 4360 |
RAL7016 |
ON/OFF | ||
| 701207.40.10.02.1 | 38W | 4000K | 10° | 4360 |
RAL7016 |
1-10V | ||
| 701207.40.10.02.D | 38W | 4000K | 10° | 4360 |
RAL7016 |
DALI | ||
| 701207.40.10.01.0 | 38W | 4000K | 10° | 4360 |
RAL9006 |
ON/OFF | ||
| 701207.40.10.01.1 | 38W | 4000K | 10° | 4360 |
RAL9006 |
1-10V | ||
| 701207.40.10.01.D | 38W | 4000K | 10° | 4360 |
RAL9006 |
DALI | ||
| 701207.40.28.03.0 | 38W | 4000K | 28° | 4310 |
RAL9005 |
ON/OFF | ||
| 701207.40.28.03.1 | 38W | 4000K | 28° | 4310 |
RAL9005 |
1-10V | ||
| 701207.40.28.03.D | 38W | 4000K | 28° | 4310 |
RAL9005 |
DALI | ||
| 701207.40.28.02.0 | 38W | 4000K | 28° | 4310 |
RAL7016 |
ON/OFF | ||
| 701207.40.28.02.1 | 38W | 4000K | 28° | 4310 |
RAL7016 |
1-10V | ||
| 701207.40.28.02.D | 38W | 4000K | 28° | 4310 |
RAL7016 |
DALI | ||
| 701207.40.28.01.0 | 38W | 4000K | 28° | 4310 |
RAL9006 |
ON/OFF | ||
| 701207.40.28.01.1 | 38W | 4000K | 28° | 4310 |
RAL9006 |
1-10V | ||
| 701207.40.28.01.D | 38W | 4000K | 28° | 4310 |
RAL9006 |
DALI | ||
| 701207.40.55.03.0 | 38W | 4000K | 55° | 3664 |
RAL9005 |
ON/OFF | ||
| 701207.40.55.03.1 | 38W | 4000K | 55° | 3664 |
RAL9005 |
1-10V | ||
| 701207.40.55.03.D | 38W | 4000K | 55° | 3664 |
RAL9005 |
DALI | ||
| 701207.40.55.02.0 | 38W | 4000K | 55° | 3664 |
RAL7016 |
ON/OFF | ||
| 701207.40.55.02.1 | 38W | 4000K | 55° | 3664 |
RAL7016 |
1-10V | ||
| 701207.40.55.02.D | 38W | 4000K | 55° | 3664 |
RAL7016 |
DALI | ||
| 701207.40.55.01.0 | 38W | 4000K | 55° | 3664 |
RAL9006 |
ON/OFF | ||
| 701207.40.55.01.1 | 38W | 4000K | 55° | 3664 |
RAL9006 |
1-10V | ||
| 701207.40.55.01.D | 38W | 4000K | 55° | 3664 |
RAL9006 |
DALI | ||
