Diameter 219mm ceiling-recessed luminaire for outdoor installation, phosphochromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 316L frame, tempered safety glass, moulded silicone gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB1512 LED. IP67 rating.

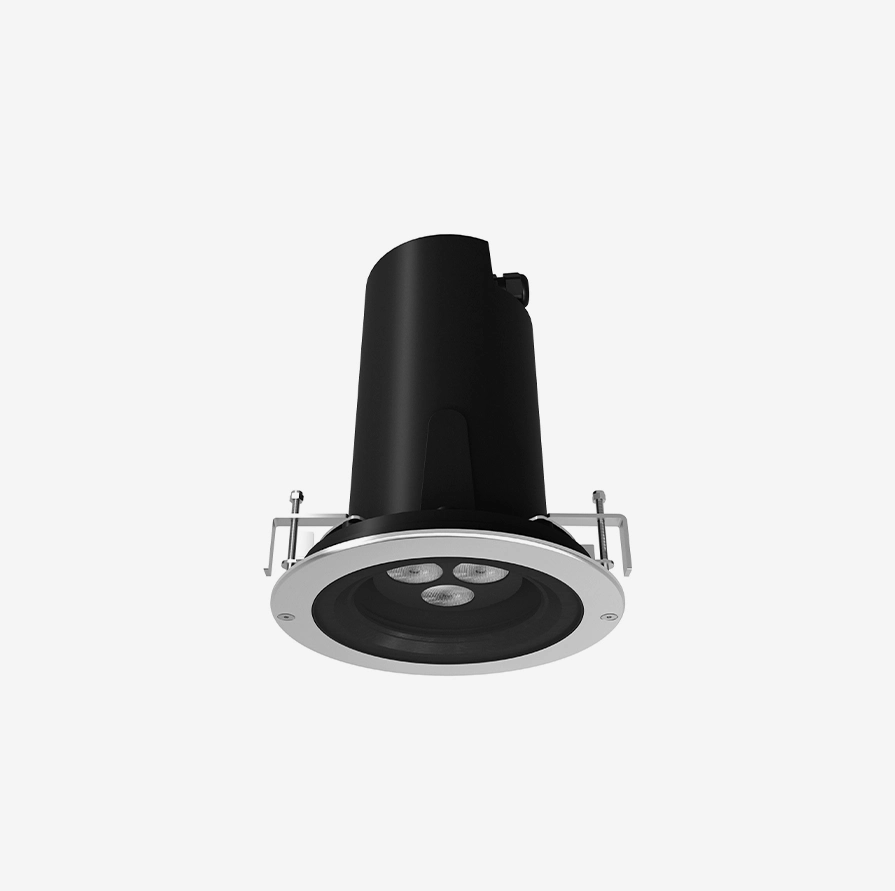

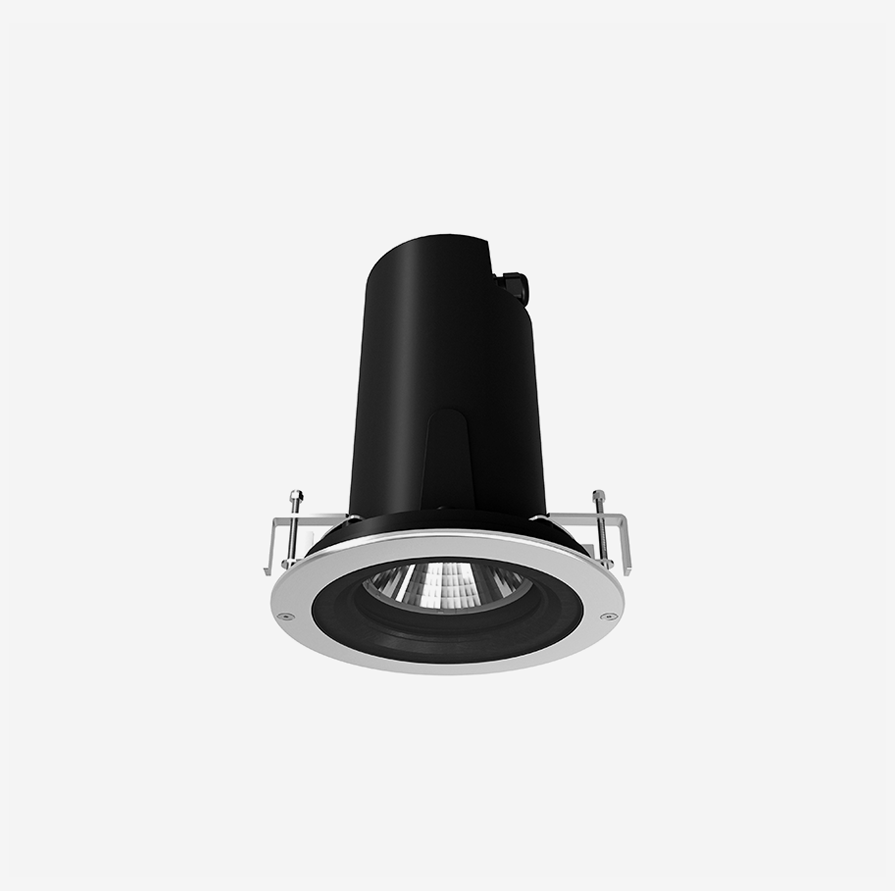

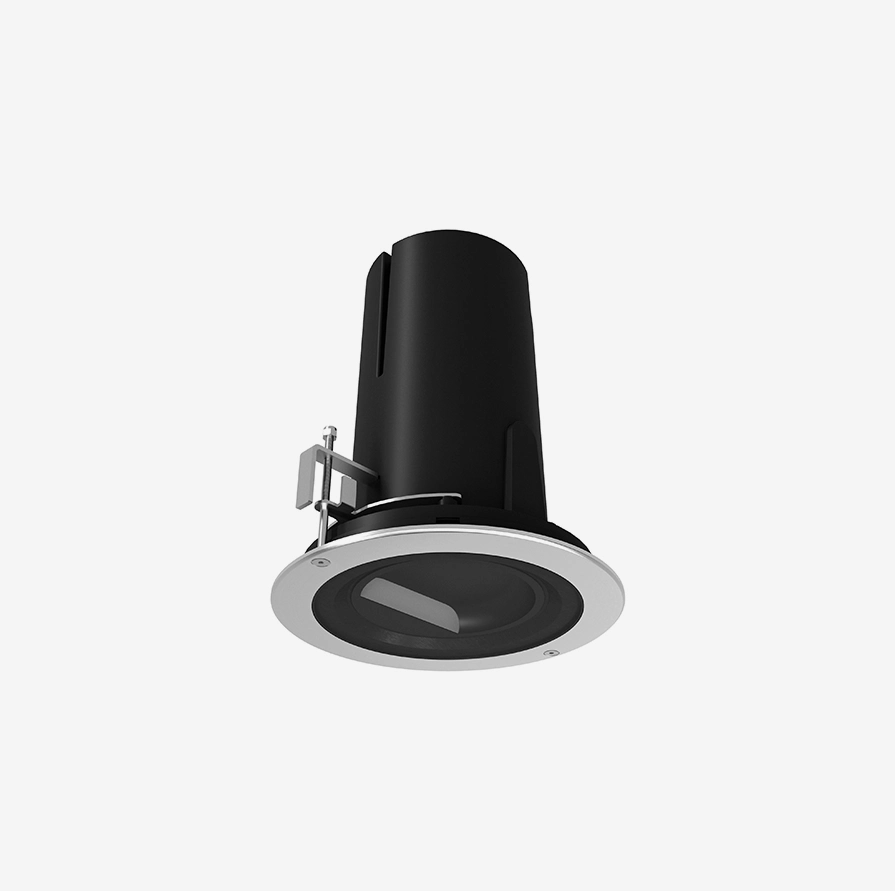

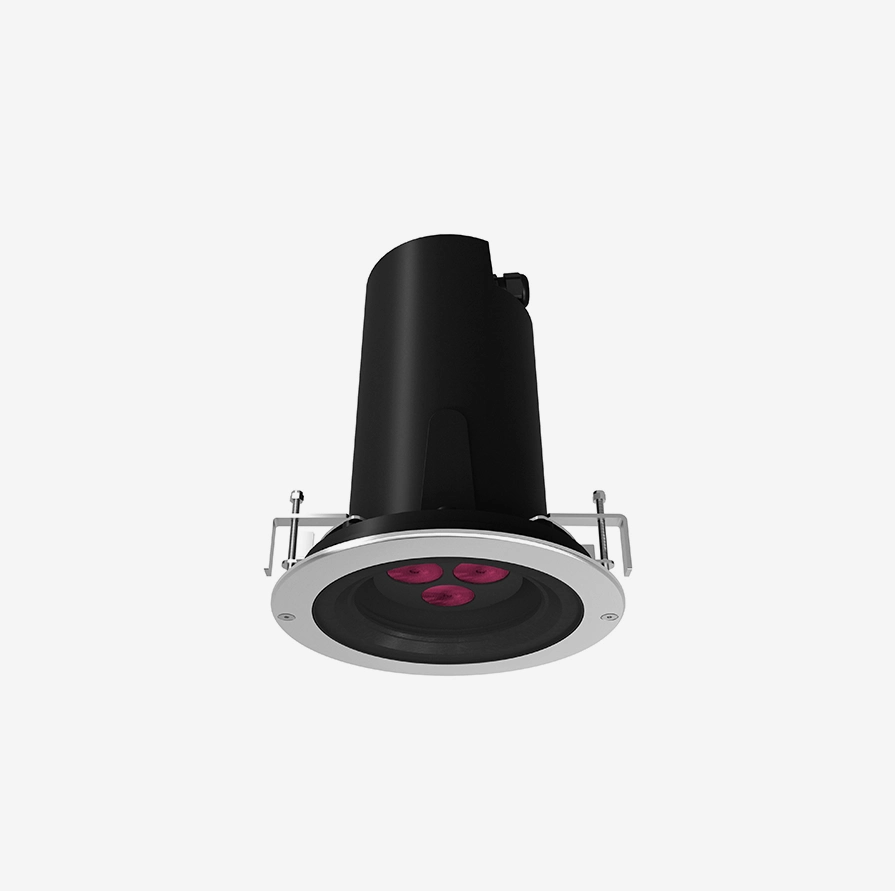

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701307.27.14.SS.0 | 13W | 2700K | 14° | 1050 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.27.14.SS.D | 13W | 2700K | 14° | 1050 |
STAINLESS STEEL |
DALI | ||
| 701307.27.35.SS.0 | 13W | 2700K | 35° | 1000 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.27.35.SS.D | 13W | 2700K | 35° | 1000 |
STAINLESS STEEL |
DALI | ||
| 701307.27.55.SS.0 | 13W | 2700K | 55° | 980 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.27.55.SS.D | 13W | 2700K | 55° | 980 |
STAINLESS STEEL |
DALI | ||
| 701307.30.14.SS.0 | 13W | 3000K | 14° | 1099 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.30.14.SS.D | 13W | 3000K | 14° | 1099 |
STAINLESS STEEL |
DALI | ||
| 701307.30.35.SS.0 | 13W | 3000K | 35° | 1079 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.30.35.SS.D | 13W | 3000K | 35° | 1079 |
STAINLESS STEEL |
DALI | ||
| 701307.30.55.SS.0 | 13W | 3000K | 55° | 1057 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.30.55.SS.D | 13W | 3000K | 55° | 1057 |
STAINLESS STEEL |
DALI | ||
| 701307.40.14.SS.0 | 13W | 4000K | 14° | 1133 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.40.14.SS.D | 13W | 4000K | 14° | 1133 |
STAINLESS STEEL |
DALI | ||
| 701307.40.35.SS.0 | 13W | 4000K | 35° | 1113 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.40.35.SS.D | 13W | 4000K | 35° | 1113 |
STAINLESS STEEL |
DALI | ||
| 701307.40.55.SS.0 | 13W | 4000K | 55° | 1090 |
STAINLESS STEEL |
ON/OFF | ||
| 701307.40.55.SS.D | 13W | 4000K | 55° | 1090 |
STAINLESS STEEL |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701308.27.04.SS.0 | 20W | 2700K | 4° | 1809 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.27.04.SS.D | 20W | 2700K | 4° | 1809 |
STAINLESS STEEL |
DALI | ||
| 701308.27.10.SS.0 | 20W | 2700K | 10° | 1733 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.27.10.SS.D | 20W | 2700K | 10° | 1733 |
STAINLESS STEEL |
DALI | ||
| 701308.27.28.SS.0 | 20W | 2700K | 28° | 1679 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.27.28.SS.D | 20W | 2700K | 28° | 1679 |
STAINLESS STEEL |
DALI | ||
| 701308.27.55.SS.0 | 20W | 2700K | 55° | 1427 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.27.55.SS.D | 20W | 2700K | 55° | 1427 |
STAINLESS STEEL |
DALI | ||
| 701308.30.04.SS.0 | 20W | 3000K | 4° | 1863 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.30.04.SS.D | 20W | 3000K | 4° | 1863 |
STAINLESS STEEL |
DALI | ||
| 701308.30.10.SS.0 | 20W | 3000K | 10° | 1787 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.30.10.SS.D | 20W | 3000K | 10° | 1787 |
STAINLESS STEEL |
DALI | ||
| 701308.30.28.SS.0 | 20W | 3000K | 28° | 1733 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.30.28.SS.D | 20W | 3000K | 28° | 1733 |
STAINLESS STEEL |
DALI | ||
| 701308.30.55.SS.0 | 20W | 3000K | 55° | 1473 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.30.55.SS.D | 20W | 3000K | 55° | 1473 |
STAINLESS STEEL |
DALI | ||
| 701308.40.04.SS.0 | 20W | 4000K | 4° | 1898 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.40.04.SS.D | 20W | 4000K | 4° | 1898 |
STAINLESS STEEL |
DALI | ||
| 701308.40.10.SS.0 | 20W | 4000K | 10° | 1825 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.40.10.SS.D | 20W | 4000K | 10° | 1825 |
STAINLESS STEEL |
DALI | ||
| 701308.40.28.SS.0 | 20W | 4000K | 28° | 1771 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.40.28.SS.D | 20W | 4000K | 28° | 1771 |
STAINLESS STEEL |
DALI | ||
| 701308.40.55.SS.0 | 20W | 4000K | 55° | 1505 |
STAINLESS STEEL |
ON/OFF | ||
| 701308.40.55.SS.D | 20W | 4000K | 55° | 1505 |
STAINLESS STEEL |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701309.RW.12.SS.X | 14W | RGBW | 12° | 480 |
STAINLESS STEEL |
DMX | ||
| 701309.RW.12.SS.D | 14W | RGBW | 12° | 480 |
STAINLESS STEEL |
DALI | ||
| 701309.RW.25.SS.X | 14W | RGBW | 25° | 456 |
STAINLESS STEEL |
DMX | ||
| 701309.RW.25.SS.D | 14W | RGBW | 25° | 456 |
STAINLESS STEEL |
DALI | ||
| 701309.RW.35.SS.X | 14W | RGBW | 35° | 435 |
STAINLESS STEEL |
DMX | ||
| 701309.RW.35.SS.D | 14W | RGBW | 35° | 435 |
STAINLESS STEEL |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701310.27.WW.SS.0 | 13W | 2700K | wall washer | 900 |
STAINLESS STEEL |
ON/OFF | ||
| 701310.27.WW.SS.D | 13W | 2700K | wall washer | 900 |
STAINLESS STEEL |
DALI | ||
| 701310.30.WW.SS.0 | 13W | 3000K | wall washer | 940 |
STAINLESS STEEL |
ON/OFF | ||
| 701310.30.WW.SS.D | 13W | 3000K | wall washer | 940 |
STAINLESS STEEL |
DALI | ||
| 701310.40.WW.SS.0 | 13W | 4000K | wall washer | 980 |
STAINLESS STEEL |
ON/OFF | ||
| 701310.40.WW.SS.D | 13W | 4000K | wall washer | 980 |
STAINLESS STEEL |
DALI | ||
