Low height bollard, round shape, for outdoor surface installation, 180° downward light emission, phospho-chromatised and polyester powder coated die-cast aluminum body, ultra-resistant polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 1 x COB CREE “CXB 1520” LED. IP66 rating.

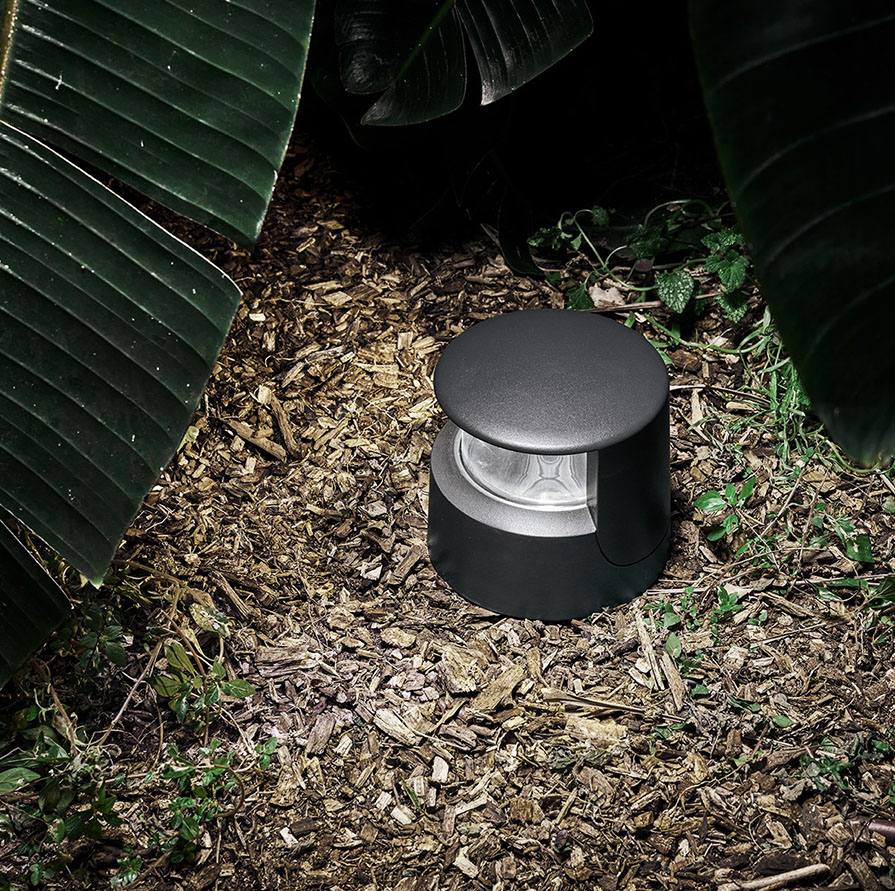

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 602101.27.HA.03.0 | 26W | 2700K | 180° | 1045 |
RAL9005 |
ON/OFF | ||
| 602101.27.HA.03.1 | 26W | 2700K | 180° | 1045 |
RAL9005 |
1-10V | ||
| 602101.27.HA.03.D | 26W | 2700K | 180° | 1045 |
RAL9005 |
DALI | ||
| 602101.27.HA.02.0 | 26W | 2700K | 180° | 1045 |
RAL7016 |
ON/OFF | ||
| 602101.27.HA.02.1 | 26W | 2700K | 180° | 1045 |
RAL7016 |
1-10V | ||
| 602101.27.HA.02.D | 26W | 2700K | 180° | 1045 |
RAL7016 |
DALI | ||
| 602101.27.HA.01.0 | 26W | 2700K | 180° | 1045 |
RAL9006 |
ON/OFF | ||
| 602101.27.HA.01.1 | 26W | 2700K | 180° | 1045 |
RAL9006 |
1-10V | ||
| 602101.27.HA.01.D | 26W | 2700K | 180° | 1045 |
RAL9006 |
DALI | ||
| 602101.30.HA.03.0 | 26W | 3000K | 180° | 1100 |
RAL9005 |
ON/OFF | ||
| 602101.30.HA.03.1 | 26W | 3000K | 180° | 1100 |
RAL9005 |
1-10V | ||
| 602101.30.HA.03.D | 26W | 3000K | 180° | 1100 |
RAL9005 |
DALI | ||
| 602101.30.HA.02.0 | 26W | 3000K | 180° | 1100 |
RAL7016 |
ON/OFF | ||
| 602101.30.HA.02.1 | 26W | 3000K | 180° | 1100 |
RAL7016 |
1-10V | ||
| 602101.30.HA.02.D | 26W | 3000K | 180° | 1100 |
RAL7016 |
DALI | ||
| 602101.30.HA.01.0 | 26W | 3000K | 180° | 1100 |
RAL9006 |
ON/OFF | ||
| 602101.30.HA.01.1 | 26W | 3000K | 180° | 1100 |
RAL9006 |
1-10V | ||
| 602101.30.HA.01.D | 26W | 3000K | 180° | 1100 |
RAL9006 |
DALI | ||
| 602101.40.HA.03.0 | 26W | 4000K | 180° | 1150 |
RAL9005 |
ON/OFF | ||
| 602101.40.HA.03.1 | 26W | 4000K | 180° | 1150 |
RAL9005 |
1-10V | ||
| 602101.40.HA.03.D | 26W | 4000K | 180° | 1150 |
RAL9005 |
DALI | ||
| 602101.40.HA.02.0 | 26W | 4000K | 180° | 1150 |
RAL7016 |
ON/OFF | ||
| 602101.40.HA.02.1 | 26W | 4000K | 180° | 1150 |
RAL7016 |
1-10V | ||
| 602101.40.HA.02.D | 26W | 4000K | 180° | 1150 |
RAL7016 |
DALI | ||
| 602101.40.HA.01.0 | 26W | 4000K | 180° | 1150 |
RAL9006 |
ON/OFF | ||
| 602101.40.HA.01.1 | 26W | 4000K | 180° | 1150 |
RAL9006 |
1-10V | ||
| 602101.40.HA.01.D | 26W | 4000K | 180° | 1150 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 602102.27.AL.03.0 | 26W | 2700K | 360° | 1948 |
RAL9005 |
ON/OFF | ||
| 602102.27.AL.03.1 | 26W | 2700K | 360° | 1948 |
RAL9005 |
1-10V | ||
| 602102.27.AL.03.D | 26W | 2700K | 360° | 1948 |
RAL9005 |
DALI | ||
| 602102.27.AL.02.0 | 26W | 2700K | 360° | 1948 |
RAL7016 |
ON/OFF | ||
| 602102.27.AL.02.1 | 26W | 2700K | 360° | 1948 |
RAL7016 |
1-10V | ||
| 602102.27.AL.02.D | 26W | 2700K | 360° | 1948 |
RAL7016 |
DALI | ||
| 602102.27.AL.01.0 | 26W | 2700K | 360° | 1948 |
RAL9006 |
ON/OFF | ||
| 602102.27.AL.01.1 | 26W | 2700K | 360° | 1948 |
RAL9006 |
1-10V | ||
| 602102.27.AL.01.D | 26W | 2700K | 360° | 1948 |
RAL9006 |
DALI | ||
| 602102.30.AL.03.0 | 26W | 3000K | 360° | 2050 |
RAL9005 |
ON/OFF | ||
| 602102.30.AL.03.1 | 26W | 3000K | 360° | 2050 |
RAL9005 |
1-10V | ||
| 602102.30.AL.03.D | 26W | 3000K | 360° | 2050 |
RAL9005 |
DALI | ||
| 602102.30.AL.02.0 | 26W | 3000K | 360° | 2050 |
RAL7016 |
ON/OFF | ||
| 602102.30.AL.02.1 | 26W | 3000K | 360° | 2050 |
RAL7016 |
1-10V | ||
| 602102.30.AL.02.D | 26W | 3000K | 360° | 2050 |
RAL7016 |
DALI | ||
| 602102.30.AL.01.0 | 26W | 3000K | 360° | 2050 |
RAL9006 |
ON/OFF | ||
| 602102.30.AL.01.1 | 26W | 3000K | 360° | 2050 |
RAL9006 |
1-10V | ||
| 602102.30.AL.01.D | 26W | 3000K | 360° | 2050 |
RAL9006 |
DALI | ||
| 602102.40.AL.03.0 | 26W | 4000K | 360° | 2100 |
RAL9005 |
ON/OFF | ||
| 602102.40.AL.03.1 | 26W | 4000K | 360° | 2100 |
RAL9005 |
1-10V | ||
| 602102.40.AL.03.D | 26W | 4000K | 360° | 2100 |
RAL9005 |
DALI | ||
| 602102.40.AL.02.0 | 26W | 4000K | 360° | 2100 |
RAL7016 |
ON/OFF | ||
| 602102.40.AL.02.1 | 26W | 4000K | 360° | 2100 |
RAL7016 |
1-10V | ||
| 602102.40.AL.02.D | 26W | 4000K | 360° | 2100 |
RAL7016 |
DALI | ||
| 602102.40.AL.01.0 | 26W | 4000K | 360° | 2100 |
RAL9006 |
ON/OFF | ||
| 602102.40.AL.01.1 | 26W | 4000K | 360° | 2100 |
RAL9006 |
1-10V | ||
| 602102.40.AL.01.D | 26W | 4000K | 360° | 2100 |
RAL9006 |
DALI | ||
