installation, from 1 to 4 light windows, phospho-chromatised and polyester powder coated extruded copper-free aluminium body, opaline tempered glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz,with NR. 1 x CREE XHP70 LED. IP66 rating.

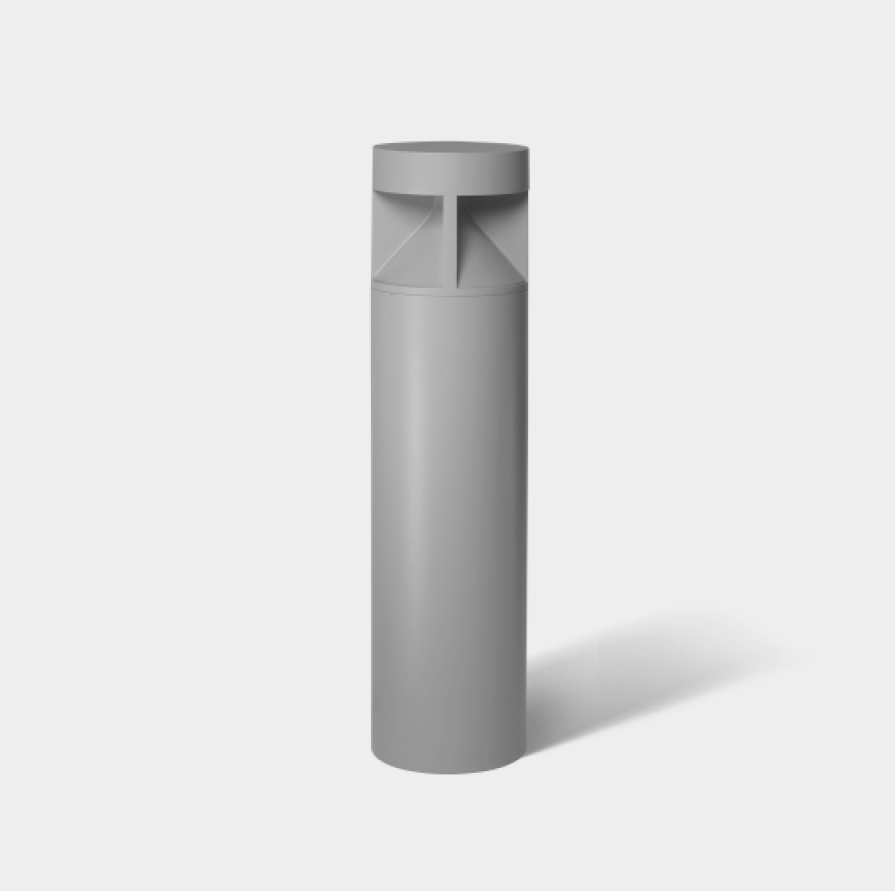

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 601701.30.90.01.D | 6W | 3000K | 90° | 533 |
RAL9006 |
DALI | ||
| 601701.30.90.02.D | 6W | 3000K | 90° | 533 |
RAL7016 |
DALI | ||
| 601701.30.90.03.D | 6W | 3000K | 90° | 533 |
Matt Black |
DALI | ||
| 601701.30.90.01.1 | 6W | 3000K | 90° | 533 |
RAL9006 |
1-10V | ||
| 601701.30.90.02.1 | 6W | 3000K | 90° | 533 |
RAL7016 |
1-10V | ||
| 601701.30.90.03.1 | 6W | 3000K | 90° | 533 |
Matt Black |
1-10V | ||
| 601701.30.90.01.0 | 6W | 3000K | 90° | 533 |
RAL9006 |
ON/OFF | ||
| 601701.30.90.02.0 | 6W | 3000K | 90° | 533 |
RAL7016 |
ON/OFF | ||
| 601701.30.90.03.0 | 6W | 3000K | 90° | 533 |
Matt Black |
ON/OFF | ||
| 601701.40.90.01.1 | 6W | 4000K | 90° | 550 |
RAL9006 |
1-10V | ||
| 601701.40.90.02.1 | 6W | 4000K | 90° | 550 |
RAL7016 |
1-10V | ||
| 601701.40.90.03.1 | 6W | 4000K | 90° | 550 |
Matt Black |
1-10V | ||
| 601701.40.90.01.0 | 6W | 4000K | 90° | 550 |
RAL9006 |
ON/OFF | ||
| 601701.40.90.02.0 | 6W | 4000K | 90° | 550 |
RAL7016 |
ON/OFF | ||
| 601701.40.90.03.0 | 6W | 4000K | 90° | 550 |
Matt Black |
ON/OFF | ||
| 601701.40.90.01.D | 6W | 4000K | 90° | 550 |
RAL9006 |
DALI | ||
| 601701.40.90.02.D | 6W | 4000K | 90° | 550 |
RAL7016 |
DALI | ||
| 601701.40.90.03.D | 6W | 4000K | 90° | 550 |
Matt Black |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 601702.30.HB.01.D | 12W | 3000K | 90°+90° | 1067 |
RAL9006 |
DALI | ||
| 601702.30.HB.02.D | 12W | 3000K | 90°+90° | 1067 |
RAL7016 |
DALI | ||
| 601702.30.HB.03.D | 12W | 3000K | 90°+90° | 1067 |
Matt Black |
DALI | ||
| 601702.30.HB.01.1 | 12W | 3000K | 90°+90° | 1067 |
RAL9006 |
1-10V | ||
| 601702.30.HB.02.1 | 12W | 3000K | 90°+90° | 1067 |
RAL7016 |
1-10V | ||
| 601702.30.HB.03.1 | 12W | 3000K | 90°+90° | 1067 |
Matt Black |
1-10V | ||
| 601702.30.HB.01.0 | 12W | 3000K | 90°+90° | 1067 |
RAL9006 |
ON/OFF | ||
| 601702.30.HB.02.0 | 12W | 3000K | 90°+90° | 1067 |
RAL7016 |
ON/OFF | ||
| 601702.30.HB.03.0 | 12W | 3000K | 90°+90° | 1067 |
Matt Black |
ON/OFF | ||
| 601702.30.HA.01.1 | 12W | 3000K | 180° | 1067 |
RAL9006 |
1-10V | ||
| 601702.30.HA.02.1 | 12W | 3000K | 180° | 1067 |
RAL7016 |
1-10V | ||
| 601702.30.HA.03.1 | 12W | 3000K | 180° | 1067 |
Matt Black |
1-10V | ||
| 601702.30.HA.01.0 | 12W | 3000K | 180° | 1067 |
RAL9006 |
ON/OFF | ||
| 601702.30.HA.02.0 | 12W | 3000K | 180° | 1067 |
RAL7016 |
ON/OFF | ||
| 601702.30.HA.03.0 | 12W | 3000K | 180° | 1067 |
Matt Black |
ON/OFF | ||
| 601702.30.HA.01.D | 12W | 3000K | 180° | 1067 |
RAL9006 |
DALI | ||
| 601702.30.HA.02.D | 12W | 3000K | 180° | 1067 |
RAL7016 |
DALI | ||
| 601702.30.HA.03.D | 12W | 3000K | 180° | 1067 |
Matt Black |
DALI | ||
| 601702.40.HB.01.D | 12W | 4000K | 90°+90° | 1100 |
RAL9006 |
DALI | ||
| 601702.40.HB.02.D | 12W | 4000K | 90°+90° | 1100 |
RAL7016 |
DALI | ||
| 601702.40.HB.03.D | 12W | 4000K | 90°+90° | 1100 |
Matt Black |
DALI | ||
| 601702.40.HB.01.1 | 12W | 4000K | 90°+90° | 1100 |
RAL9006 |
1-10V | ||
| 601702.40.HB.02.1 | 12W | 4000K | 90°+90° | 1100 |
RAL7016 |
1-10V | ||
| 601702.40.HB.03.1 | 12W | 4000K | 90°+90° | 1100 |
Matt Black |
1-10V | ||
| 601702.40.HB.01.0 | 12W | 4000K | 90°+90° | 1100 |
RAL9006 |
ON/OFF | ||
| 601702.40.HB.02.0 | 12W | 4000K | 90°+90° | 1100 |
RAL7016 |
ON/OFF | ||
| 601702.40.HB.03.0 | 12W | 4000K | 90°+90° | 1100 |
Matt Black |
ON/OFF | ||
| 601702.40.HA.01.0 | 12W | 4000K | 180° | 1100 |
RAL9006 |
ON/OFF | ||
| 601702.40.HA.02.0 | 12W | 4000K | 180° | 1100 |
RAL7016 |
ON/OFF | ||
| 601702.40.HA.03.0 | 12W | 4000K | 180° | 1100 |
Matt Black |
ON/OFF | ||
| 601702.40.HA.01.D | 12W | 4000K | 180° | 1100 |
RAL9006 |
DALI | ||
| 601702.40.HA.02.D | 12W | 4000K | 180° | 1100 |
RAL7016 |
DALI | ||
| 601702.40.HA.03.D | 12W | 4000K | 180° | 1100 |
Matt Black |
DALI | ||
| 601702.40.HA.01.1 | 12W | 4000K | 180° | 1100 |
RAL9006 |
1-10V | ||
| 601702.40.HA.02.1 | 12W | 4000K | 180° | 1100 |
RAL7016 |
1-10V | ||
| 601702.40.HA.03.1 | 12W | 4000K | 180° | 1100 |
Matt Black |
1-10V | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 601703.30.HE.01.D | 18W | 3000K | 270° | 1600 |
RAL9006 |
DALI | ||
| 601703.30.HE.02.D | 18W | 3000K | 270° | 1600 |
RAL7016 |
DALI | ||
| 601703.30.HE.03.D | 18W | 3000K | 270° | 1600 |
Matt Black |
DALI | ||
| 601703.30.HE.01.1 | 18W | 3000K | 270° | 1600 |
RAL9006 |
1-10V | ||
| 601703.30.HE.02.1 | 18W | 3000K | 270° | 1600 |
RAL7016 |
1-10V | ||
| 601703.30.HE.03.1 | 18W | 3000K | 270° | 1600 |
Matt Black |
1-10V | ||
| 601703.30.HE.01.0 | 18W | 3000K | 270° | 1600 |
RAL9006 |
ON/OFF | ||
| 601703.30.HE.02.0 | 18W | 3000K | 270° | 1600 |
RAL7016 |
ON/OFF | ||
| 601703.30.HE.03.0 | 18W | 3000K | 270° | 1600 |
Matt Black |
ON/OFF | ||
| 601703.40.HE.01.1 | 18W | 4000K | 270° | 1650 |
RAL9006 |
1-10V | ||
| 601703.40.HE.02.1 | 18W | 4000K | 270° | 1650 |
RAL7016 |
1-10V | ||
| 601703.40.HE.03.1 | 18W | 4000K | 270° | 1650 |
Matt Black |
1-10V | ||
| 601703.40.HE.01.0 | 18W | 4000K | 270° | 1650 |
RAL9006 |
ON/OFF | ||
| 601703.40.HE.02.0 | 18W | 4000K | 270° | 1650 |
RAL7016 |
ON/OFF | ||
| 601703.40.HE.03.0 | 18W | 4000K | 270° | 1650 |
Matt Black |
ON/OFF | ||
| 601703.40.HE.01.D | 18W | 4000K | 270° | 1650 |
RAL9006 |
DALI | ||
| 601703.40.HE.02.D | 18W | 4000K | 270° | 1650 |
RAL7016 |
DALI | ||
| 601703.40.HE.03.D | 18W | 4000K | 270° | 1650 |
Matt Black |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 601704.30.AL.01.1 | 24W | 3000K | 360° | 2134 |
RAL9006 |
1-10V | ||
| 601704.30.AL.02.1 | 24W | 3000K | 360° | 2134 |
RAL7016 |
1-10V | ||
| 601704.30.AL.03.1 | 24W | 3000K | 360° | 2134 |
Matt Black |
1-10V | ||
| 601704.30.AL.01.0 | 24W | 3000K | 360° | 2134 |
RAL9006 |
ON/OFF | ||
| 601704.30.AL.02.0 | 24W | 3000K | 360° | 2134 |
RAL7016 |
ON/OFF | ||
| 601704.30.AL.03.0 | 24W | 3000K | 360° | 2134 |
Matt Black |
ON/OFF | ||
| 601704.30.AL.01.D | 24W | 3000K | 360° | 2134 |
RAL9006 |
DALI | ||
| 601704.30.AL.02.D | 24W | 3000K | 360° | 2134 |
RAL7016 |
DALI | ||
| 601704.30.AL.03.D | 24W | 3000K | 360° | 2134 |
Matt Black |
DALI | ||
| 601704.40.AL.01.D | 24W | 4000K | 360° | 2200 |
RAL9006 |
DALI | ||
| 601704.40.AL.02.D | 24W | 4000K | 360° | 2200 |
RAL7016 |
DALI | ||
| 601704.40.AL.03.D | 24W | 4000K | 360° | 2200 |
Matt Black |
DALI | ||
| 601704.40.AL.01.1 | 24W | 4000K | 360° | 2200 |
RAL9006 |
1-10V | ||
| 601704.40.AL.02.1 | 24W | 4000K | 360° | 2200 |
RAL7016 |
1-10V | ||
| 601704.40.AL.03.1 | 24W | 4000K | 360° | 2200 |
Matt Black |
1-10V | ||
| 601704.40.AL.01.0 | 24W | 4000K | 360° | 2200 |
RAL9006 |
ON/OFF | ||
| 601704.40.AL.02.0 | 24W | 4000K | 360° | 2200 |
RAL7016 |
ON/OFF | ||
| 601704.40.AL.03.0 | 24W | 4000K | 360° | 2200 |
Matt Black |
ON/OFF | ||
