installation, one-side downward asymmetrical light distribution, phospho-chromatised and polyester powder coated extruded aluminum body. Tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with CREE “XP-G2” LED. IP65 rating.

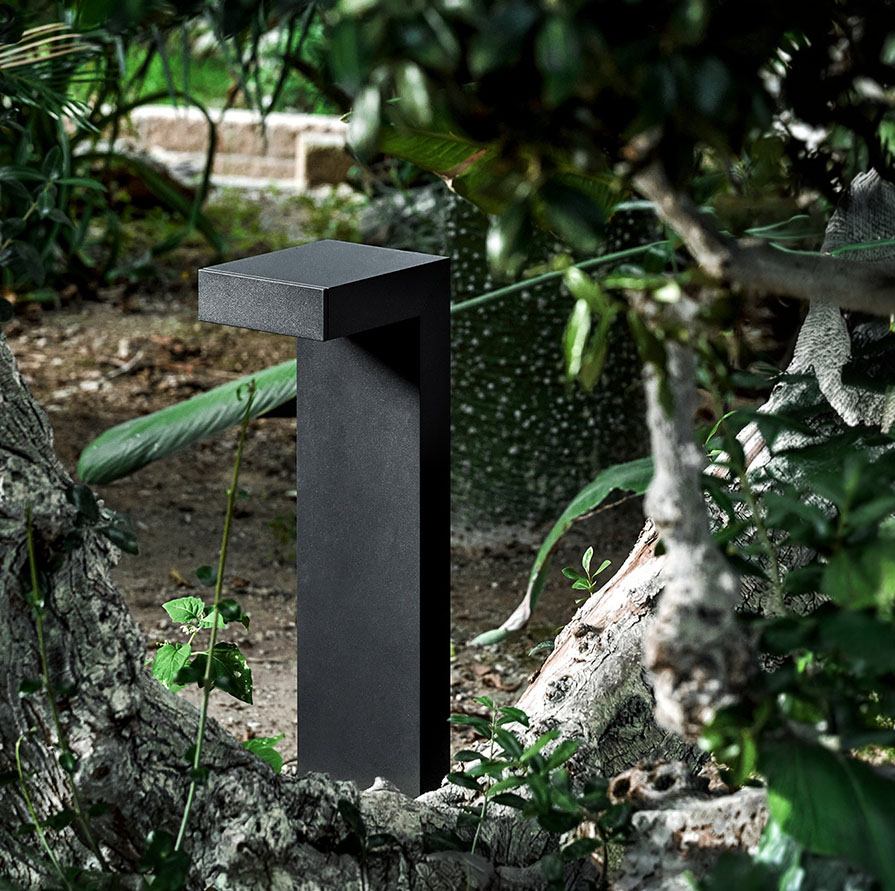

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 601603.30.AS.01.0 | 7W | 3000K | generic asymmetric | 805 |
RAL9006 |
ON/OFF | ||
| 601603.30.AS.02.0 | 7W | 3000K | generic asymmetric | 805 |
RAL7016 |
ON/OFF | ||
| 601603.30.AS.03.0 | 7W | 3000K | generic asymmetric | 805 |
Matt Black |
ON/OFF | ||
| 601603.30.AS.01.D | 7W | 3000K | generic asymmetric | 805 |
RAL9006 |
DALI | ||
| 601603.30.AS.02.D | 7W | 3000K | generic asymmetric | 805 |
RAL7016 |
DALI | ||
| 601603.30.AS.03.D | 7W | 3000K | generic asymmetric | 805 |
Matt Black |
DALI | ||
| 601603.30.AS.01.1 | 7W | 3000K | generic asymmetric | 805 |
RAL9006 |
1-10V | ||
| 601603.30.AS.02.1 | 7W | 3000K | generic asymmetric | 805 |
RAL7016 |
1-10V | ||
| 601603.30.AS.03.1 | 7W | 3000K | generic asymmetric | 805 |
Matt Black |
1-10V | ||
| 601603.40.AS.01.0 | 7W | 4000K | generic asymmetric | 847 |
RAL9006 |
ON/OFF | ||
| 601603.40.AS.02.0 | 7W | 4000K | generic asymmetric | 847 |
RAL7016 |
ON/OFF | ||
| 601603.40.AS.03.0 | 7W | 4000K | generic asymmetric | 847 |
Matt Black |
ON/OFF | ||
| 601603.40.AS.01.D | 7W | 4000K | generic asymmetric | 847 |
RAL9006 |
DALI | ||
| 601603.40.AS.02.D | 7W | 4000K | generic asymmetric | 847 |
RAL7016 |
DALI | ||
| 601603.40.AS.03.D | 7W | 4000K | generic asymmetric | 847 |
Matt Black |
DALI | ||
| 601603.40.AS.01.1 | 7W | 4000K | generic asymmetric | 847 |
RAL9006 |
1-10V | ||
| 601603.40.AS.02.1 | 7W | 4000K | generic asymmetric | 847 |
RAL7016 |
1-10V | ||
| 601603.40.AS.03.1 | 7W | 4000K | generic asymmetric | 847 |
Matt Black |
1-10V | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 601604.30.AS.01.0 | 14W | 3000K | generic asymmetric | 1610 |
RAL9006 |
ON/OFF | ||
| 601604.30.AS.02.0 | 14W | 3000K | generic asymmetric | 1610 |
RAL7016 |
ON/OFF | ||
| 601604.30.AS.03.0 | 14W | 3000K | generic asymmetric | 1610 |
Matt Black |
ON/OFF | ||
| 601604.30.AS.01.D | 14W | 3000K | generic asymmetric | 1610 |
RAL9006 |
DALI | ||
| 601604.30.AS.02.D | 14W | 3000K | generic asymmetric | 1610 |
RAL7016 |
DALI | ||
| 601604.30.AS.03.D | 14W | 3000K | generic asymmetric | 1610 |
Matt Black |
DALI | ||
| 601604.30.AS.01.1 | 14W | 3000K | generic asymmetric | 1610 |
RAL9006 |
1-10V | ||
| 601604.30.AS.02.1 | 14W | 3000K | generic asymmetric | 1610 |
RAL7016 |
1-10V | ||
| 601604.30.AS.03.1 | 14W | 3000K | generic asymmetric | 1610 |
Matt Black |
1-10V | ||
| 601604.40.AS.01.1 | 14W | 4000K | generic asymmetric | 1694 |
RAL9006 |
1-10V | ||
| 601604.40.AS.02.1 | 14W | 4000K | generic asymmetric | 1694 |
RAL7016 |
1-10V | ||
| 601604.40.AS.03.1 | 14W | 4000K | generic asymmetric | 1694 |
Matt Black |
1-10V | ||
| 601604.40.AS.01.0 | 14W | 4000K | generic asymmetric | 1694 |
RAL9006 |
ON/OFF | ||
| 601604.40.AS.02.0 | 14W | 4000K | generic asymmetric | 1694 |
RAL7016 |
ON/OFF | ||
| 601604.40.AS.03.0 | 14W | 4000K | generic asymmetric | 1694 |
Matt Black |
ON/OFF | ||
| 601604.40.AS.01.D | 14W | 4000K | generic asymmetric | 1694 |
RAL9006 |
DALI | ||
| 601604.40.AS.02.D | 14W | 4000K | generic asymmetric | 1694 |
RAL7016 |
DALI | ||
| 601604.40.AS.03.D | 14W | 4000K | generic asymmetric | 1694 |
Matt Black |
DALI | ||
