600mm height bollard, round shape, for outdoor surface installation, 180º light emission, phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Anchorage bolts included- Built-in LED driver 220-240V 50-60Hz, with 6 CREE XP-G2 high-power LED. IP65 rating. Designed by MOMO DESIGN.

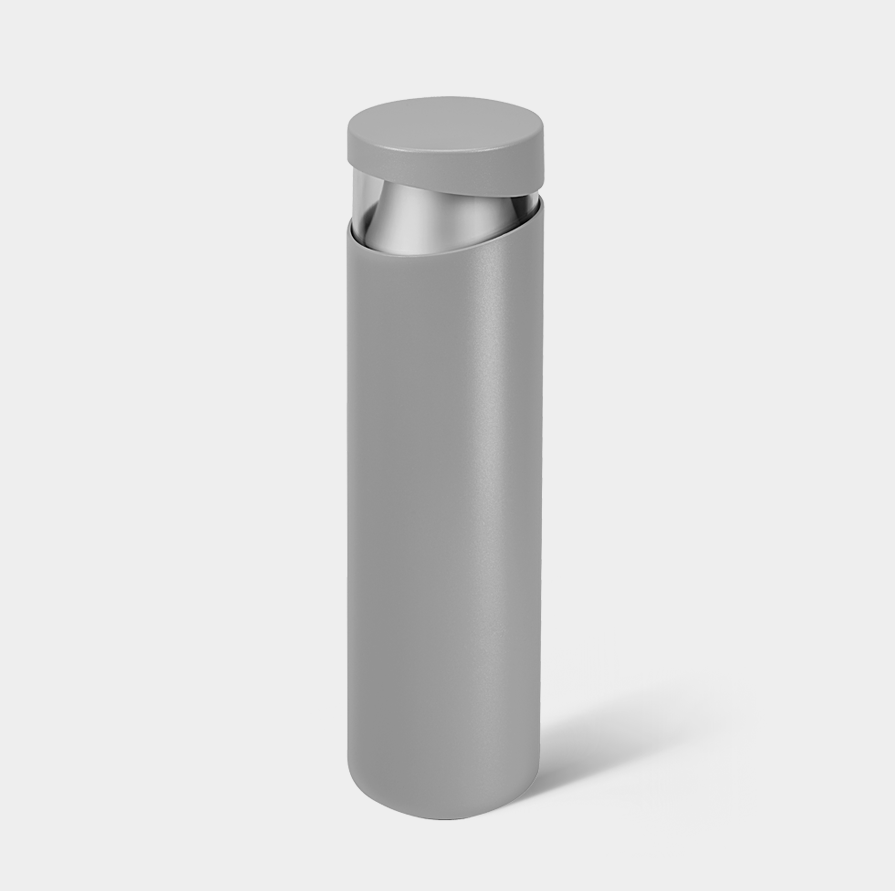

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 609003.27.HA.03.0 | 9W | 2700K | 180° | 760 |
RAL9005 |
ON/OFF | ||
| 609003.27.HA.03.1 | 9W | 2700K | 180° | 760 |
RAL9005 |
1-10V | ||
| 609003.27.HA.03.D | 9W | 2700K | 180° | 760 |
RAL9005 |
DALI | ||
| 609003.27.HA.02.0 | 9W | 2700K | 180° | 760 |
RAL7016 |
ON/OFF | ||
| 609003.27.HA.02.1 | 9W | 2700K | 180° | 760 |
RAL7016 |
1-10V | ||
| 609003.27.HA.02.D | 9W | 2700K | 180° | 760 |
RAL7016 |
DALI | ||
| 609003.27.HA.01.0 | 9W | 2700K | 180° | 760 |
RAL9006 |
ON/OFF | ||
| 609003.27.HA.01.1 | 9W | 2700K | 180° | 760 |
RAL9006 |
1-10V | ||
| 609003.27.HA.01.D | 9W | 2700K | 180° | 760 |
RAL9006 |
DALI | ||
| 609003.30.HA.03.0 | 9W | 3000K | 180° | 800 |
RAL9005 |
ON/OFF | ||
| 609003.30.HA.03.1 | 9W | 3000K | 180° | 800 |
RAL9005 |
1-10V | ||
| 609003.30.HA.03.D | 9W | 3000K | 180° | 800 |
RAL9005 |
DALI | ||
| 609003.30.HA.02.0 | 9W | 3000K | 180° | 800 |
RAL7016 |
ON/OFF | ||
| 609003.30.HA.02.1 | 9W | 3000K | 180° | 800 |
RAL7016 |
1-10V | ||
| 609003.30.HA.02.D | 9W | 3000K | 180° | 800 |
RAL7016 |
DALI | ||
| 609003.30.HA.01.0 | 9W | 3000K | 180° | 800 |
RAL9006 |
ON/OFF | ||
| 609003.30.HA.01.1 | 9W | 3000K | 180° | 800 |
RAL9006 |
1-10V | ||
| 609003.30.HA.01.D | 9W | 3000K | 180° | 800 |
RAL9006 |
DALI | ||
| 609003.40.HA.03.0 | 9W | 4000K | 180° | 820 |
RAL9005 |
ON/OFF | ||
| 609003.40.HA.03.1 | 9W | 4000K | 180° | 820 |
RAL9005 |
1-10V | ||
| 609003.40.HA.03.D | 9W | 4000K | 180° | 820 |
RAL9005 |
DALI | ||
| 609003.40.HA.02.0 | 9W | 4000K | 180° | 820 |
RAL7016 |
ON/OFF | ||
| 609003.40.HA.02.1 | 9W | 4000K | 180° | 820 |
RAL7016 |
1-10V | ||
| 609003.40.HA.02.D | 9W | 4000K | 180° | 820 |
RAL7016 |
DALI | ||
| 609003.40.HA.01.0 | 9W | 4000K | 180° | 820 |
RAL9006 |
ON/OFF | ||
| 609003.40.HA.01.1 | 9W | 4000K | 180° | 820 |
RAL9006 |
1-10V | ||
| 609003.40.HA.01.D | 9W | 4000K | 180° | 820 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 609004.27.AL.03.0 | 18W | 2700K | 360° | 1520 |
RAL9005 |
ON/OFF | ||
| 609004.27.AL.03.1 | 18W | 2700K | 360° | 1520 |
RAL9005 |
1-10V | ||
| 609004.27.AL.03.D | 18W | 2700K | 360° | 1520 |
RAL9005 |
DALI | ||
| 609004.27.AL.02.0 | 18W | 2700K | 360° | 1520 |
RAL7016 |
ON/OFF | ||
| 609004.27.AL.02.1 | 18W | 2700K | 360° | 1520 |
RAL7016 |
1-10V | ||
| 609004.27.AL.02.D | 18W | 2700K | 360° | 1520 |
RAL7016 |
DALI | ||
| 609004.27.AL.01.0 | 18W | 2700K | 360° | 1520 |
RAL9006 |
ON/OFF | ||
| 609004.27.AL.01.1 | 18W | 2700K | 360° | 1520 |
RAL9006 |
1-10V | ||
| 609004.27.AL.01.D | 18W | 2700K | 360° | 1520 |
RAL9006 |
DALI | ||
| 609004.30.AL.03.0 | 18W | 3000K | 360° | 1600 |
RAL9005 |
ON/OFF | ||
| 609004.30.AL.03.1 | 18W | 3000K | 360° | 1600 |
RAL9005 |
1-10V | ||
| 609004.30.AL.03.D | 18W | 3000K | 360° | 1600 |
RAL9005 |
DALI | ||
| 609004.30.AL.02.0 | 18W | 3000K | 360° | 1600 |
RAL7016 |
ON/OFF | ||
| 609004.30.AL.02.1 | 18W | 3000K | 360° | 1600 |
RAL7016 |
1-10V | ||
| 609004.30.AL.02.D | 18W | 3000K | 360° | 1600 |
RAL7016 |
DALI | ||
| 609004.30.AL.01.0 | 18W | 3000K | 360° | 1600 |
RAL9006 |
ON/OFF | ||
| 609004.30.AL.01.1 | 18W | 3000K | 360° | 1600 |
RAL9006 |
1-10V | ||
| 609004.30.AL.01.D | 18W | 3000K | 360° | 1600 |
RAL9006 |
DALI | ||
| 609004.40.AL.03.0 | 18W | 4000K | 360° | 1640 |
RAL9005 |
ON/OFF | ||
| 609004.40.AL.03.1 | 18W | 4000K | 360° | 1640 |
RAL9005 |
1-10V | ||
| 609004.40.AL.03.D | 18W | 4000K | 360° | 1640 |
RAL9005 |
DALI | ||
| 609004.40.AL.02.0 | 18W | 4000K | 360° | 1640 |
RAL7016 |
ON/OFF | ||
| 609004.40.AL.02.1 | 18W | 4000K | 360° | 1640 |
RAL7016 |
1-10V | ||
| 609004.40.AL.02.D | 18W | 4000K | 360° | 1640 |
RAL7016 |
DALI | ||
| 609004.40.AL.01.0 | 18W | 4000K | 360° | 1640 |
RAL9006 |
ON/OFF | ||
| 609004.40.AL.01.1 | 18W | 4000K | 360° | 1640 |
RAL9006 |
1-10V | ||
| 609004.40.AL.01.D | 18W | 4000K | 360° | 1640 |
RAL9006 |
DALI | ||
