600mm height bollard, round shape, for outdoor surface installation, 360° light emission, phospho- chromatised and polyester powder coated extruded copper-free aluminium body, polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Anchorage bolts included. Built-in LED driver 220-240V 50-60Hz, with 16 CREE JK3030 mid-power LED. IP65 rating.

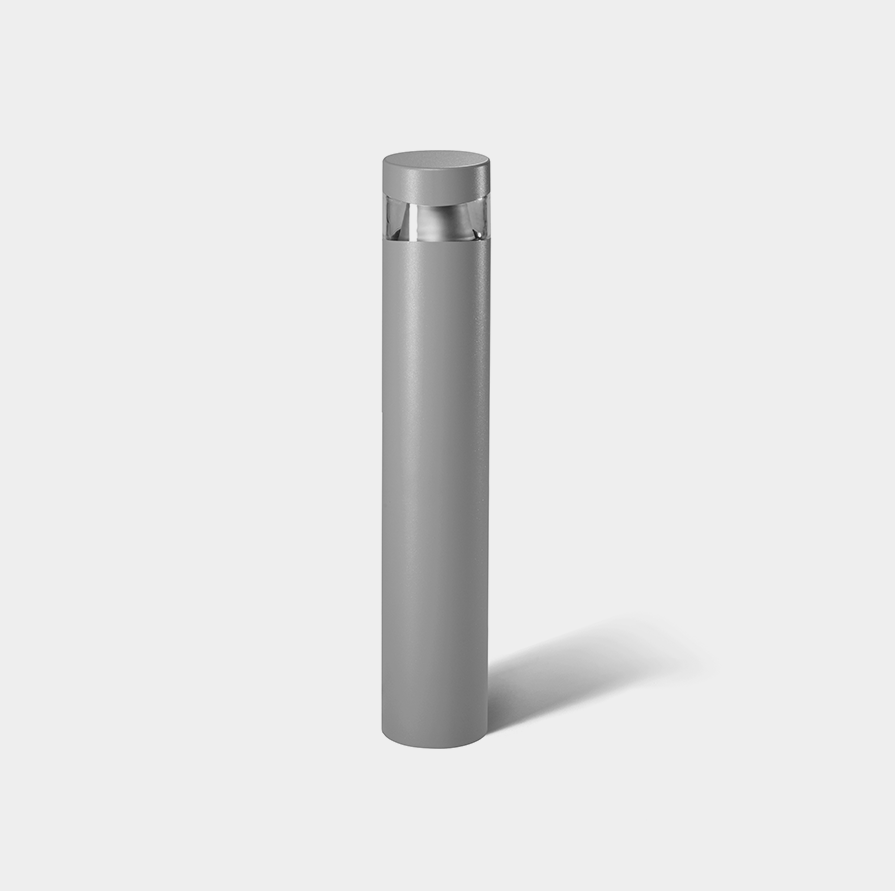

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 601802.30.AL.03.0 | 12W | 3000K | 360° | 800 |
RAL9005 |
ON/OFF | ||
| 601802.30.AL.03.1 | 12W | 3000K | 360° | 800 |
RAL9005 |
1-10V | ||
| 601802.30.AL.03.D | 12W | 3000K | 360° | 800 |
RAL9005 |
DALI | ||
| 601802.30.AL.02.0 | 12W | 3000K | 360° | 800 |
RAL7016 |
ON/OFF | ||
| 601802.30.AL.02.1 | 12W | 3000K | 360° | 800 |
RAL7016 |
1-10V | ||
| 601802.30.AL.02.D | 12W | 3000K | 360° | 800 |
RAL7016 |
DALI | ||
| 601802.30.AL.01.0 | 12W | 3000K | 360° | 800 |
RAL9006 |
ON/OFF | ||
| 601802.30.AL.01.1 | 12W | 3000K | 360° | 800 |
RAL9006 |
1-10V | ||
| 601802.30.AL.01.D | 12W | 3000K | 360° | 800 |
RAL9006 |
DALI | ||
| 601802.40.AL.03.0 | 12W | 4000K | 360° | 820 |
RAL9005 |
ON/OFF | ||
| 601802.40.AL.03.1 | 12W | 4000K | 360° | 820 |
RAL9005 |
1-10V | ||
| 601802.40.AL.03.D | 12W | 4000K | 360° | 820 |
RAL9005 |
DALI | ||
| 601802.40.AL.02.0 | 12W | 4000K | 360° | 820 |
RAL7016 |
ON/OFF | ||
| 601802.40.AL.02.1 | 12W | 4000K | 360° | 820 |
RAL7016 |
1-10V | ||
| 601802.40.AL.02.D | 12W | 4000K | 360° | 820 |
RAL7016 |
DALI | ||
| 601802.40.AL.01.0 | 12W | 4000K | 360° | 820 |
RAL9006 |
ON/OFF | ||
| 601802.40.AL.01.1 | 12W | 4000K | 360° | 820 |
RAL9006 |
1-10V | ||
| 601802.40.AL.01.D | 12W | 4000K | 360° | 820 |
RAL9006 |
DALI | ||
