1.000mm height bollard, for outdoor installation, 360° light distribution, phospho-chromatised and polyester powder coated die-cast aluminum head and extruded pole. Tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 24 x CREE “XH-G” LED. IP66 rating.

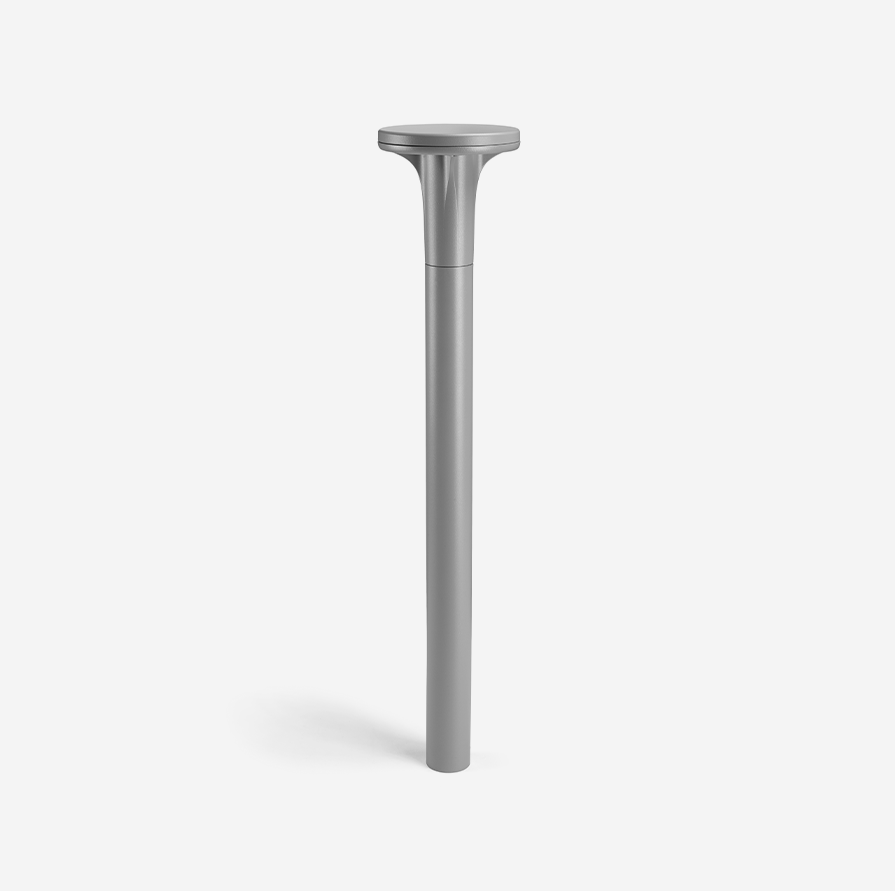

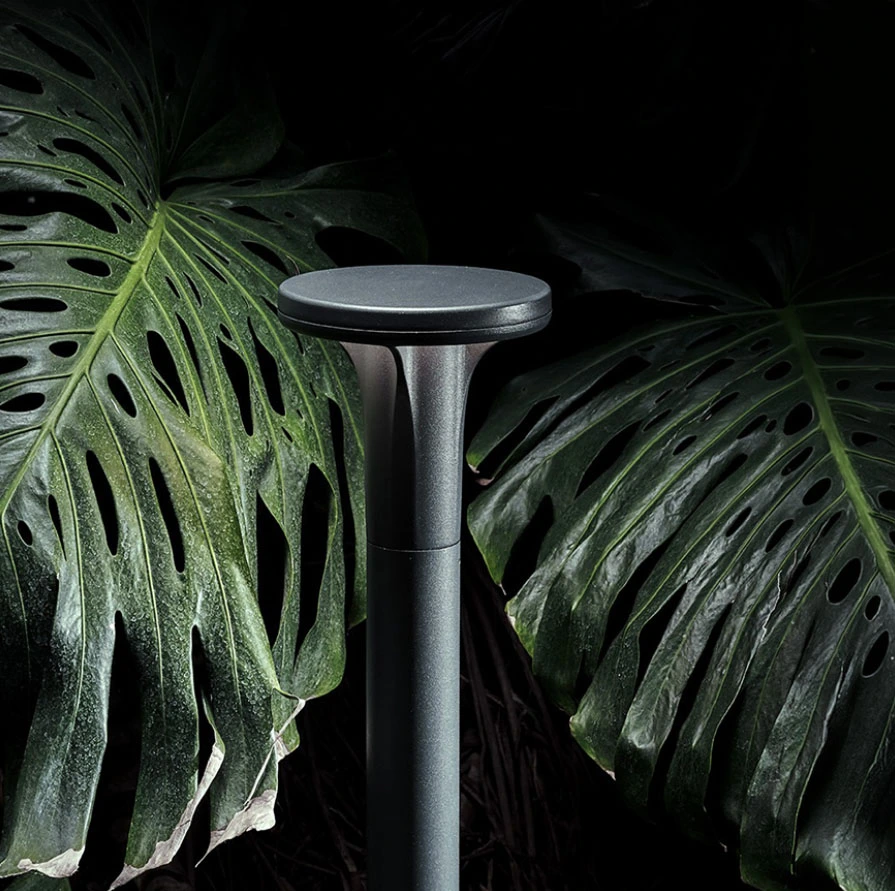

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 602203.27.AL.03.0 | 20W | 2700K | 360° | 1520 |
RAL9005 |
ON/OFF | ||
| 602203.27.AL.03.1 | 20W | 2700K | 360° | 1520 |
RAL9005 |
1-10V | ||
| 602203.27.AL.03.D | 20W | 2700K | 360° | 1520 |
RAL9005 |
DALI | ||
| 602203.27.AL.02.0 | 20W | 2700K | 360° | 1520 |
RAL7016 |
ON/OFF | ||
| 602203.27.AL.02.1 | 20W | 2700K | 360° | 1520 |
RAL7016 |
1-10V | ||
| 602203.27.AL.02.D | 20W | 2700K | 360° | 1520 |
RAL7016 |
DALI | ||
| 602203.27.AL.01.0 | 20W | 2700K | 360° | 1520 |
RAL9006 |
ON/OFF | ||
| 602203.27.AL.01.1 | 20W | 2700K | 360° | 1520 |
RAL9006 |
1-10V | ||
| 602203.27.AL.01.D | 20W | 2700K | 360° | 1520 |
RAL9006 |
DALI | ||
| 602203.30.AL.03.0 | 20W | 3000K | 360° | 1600 |
RAL9005 |
ON/OFF | ||
| 602203.30.AL.03.1 | 20W | 3000K | 360° | 1600 |
RAL9005 |
1-10V | ||
| 602203.30.AL.03.D | 20W | 3000K | 360° | 1600 |
RAL9005 |
DALI | ||
| 602203.30.AL.02.0 | 20W | 3000K | 360° | 1600 |
RAL7016 |
ON/OFF | ||
| 602203.30.AL.02.1 | 20W | 3000K | 360° | 1600 |
RAL7016 |
1-10V | ||
| 602203.30.AL.02.D | 20W | 3000K | 360° | 1600 |
RAL7016 |
DALI | ||
| 602203.30.AL.01.0 | 20W | 3000K | 360° | 1600 |
RAL9006 |
ON/OFF | ||
| 602203.30.AL.01.1 | 20W | 3000K | 360° | 1600 |
RAL9006 |
1-10V | ||
| 602203.30.AL.01.D | 20W | 3000K | 360° | 1600 |
RAL9006 |
DALI | ||
| 602203.40.AL.03.0 | 20W | 4000K | 360° | 1650 |
RAL9005 |
ON/OFF | ||
| 602203.40.AL.03.1 | 20W | 4000K | 360° | 1650 |
RAL9005 |
1-10V | ||
| 602203.40.AL.03.D | 20W | 4000K | 360° | 1650 |
RAL9005 |
DALI | ||
| 602203.40.AL.02.0 | 20W | 4000K | 360° | 1650 |
RAL7016 |
ON/OFF | ||
| 602203.40.AL.02.1 | 20W | 4000K | 360° | 1650 |
RAL7016 |
1-10V | ||
| 602203.40.AL.02.D | 20W | 4000K | 360° | 1650 |
RAL7016 |
DALI | ||
| 602203.40.AL.01.0 | 20W | 4000K | 360° | 1650 |
RAL9006 |
ON/OFF | ||
| 602203.40.AL.01.1 | 20W | 4000K | 360° | 1650 |
RAL9006 |
1-10V | ||
| 602203.40.AL.01.D | 20W | 4000K | 360° | 1650 |
RAL9006 |
DALI | ||
